Product Overview


The Newstart Lighting LED Effect Light series delivers high-output, precision-mixed dynamic lighting for professional entertainment and architectural installations. Built around a robust die-cast aluminum housing and high-efficiency multi-chip LED emitters, this fixture provides consistent color rendering and stable thermal performance under rigorous operating cycles.




  • Outdoor 48x10W LED City Color Light
    Model:NST-TGD48Brand:New StartCountry of origin:ChinaOutdoor 48x10W LED City Color Light,high-power four-in-one LED beads, each bead integrated with RGBW (red, green, blue, white) four-color chip,

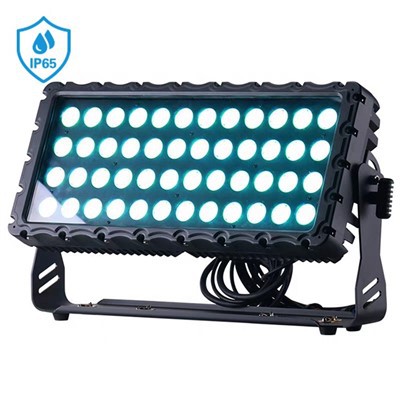

  • Outdoor 60x10W LED City Color Light
    Model:NST-TGD60Brand:New StartCountry of origin:ChinaOutdoor 60x10W LED City Color Light with 60 LED10W four-in-one light sources, commonly used for stage/engineering lighting, with DMX control,

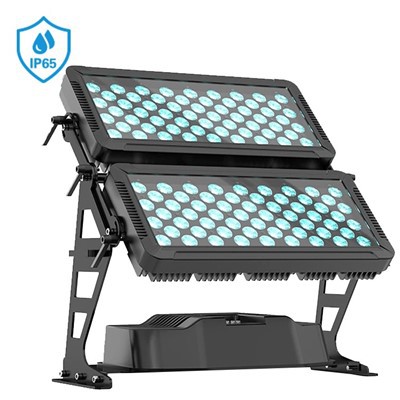

  • Outdoor 120x10W LED City Color Light
    Model:NST-TGD12010Brand:New StartCountry of origin:ChinaOutdoor 120x10W LED City Color Light equipped with 120 10-watt RGBW four-color leds, adjustable color temperature 2500K-10000K, color rendering

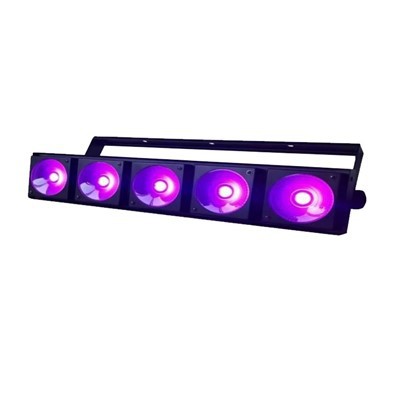

  • 5x30W LED Matrix Light
    Model:NST-0530Brand:New StartCountry of origin:China5x30W LED Matrix Light is a commonly used stage lighting device. It consists of five 30-watt LED beads arranged in a matrix, with a total power of
  • 10x40W LED Moving Head Beam Bar Light
    Model:NST-1040Brand:New StartCountry of origin:China10x40W LED Moving Head Beam Bar Light is a professional lighting device commonly used in various stage performances, entertainment venues, etc. It
  • 12X40W LED Moving Head Bar Zoom Pixel Light
    Model:NST-1240SBrand:New StartCountry of origin:China12X40W LED Moving Head Bar Zoom Pixel Light is a multi-functional stage effect light whose core functions can be summarized as [beam + color +

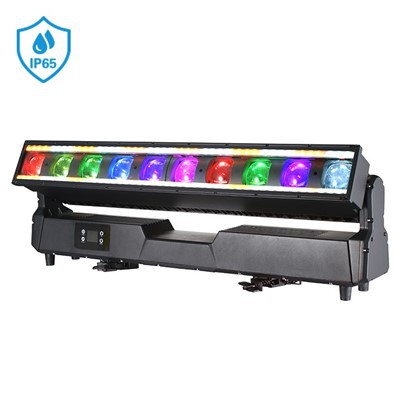

  • Outdoor 10x60W LED Moving Head Beam Light
    Model:NST-1060Brand:New StartCountry of origin:ChinaOutdoor 10x60W LED Moving Head Beam Light is a multi-functional stage light for outdoor and semi-outdoor scenarios, with a main light + auxiliary

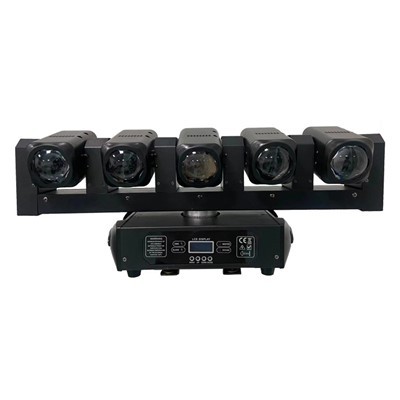

  • Five Heads LED Moving Head Beam Light
    Model:NST-W40Brand:New StartCountry of origin:ChinaFive Heads LED Moving Head Beam Light is a professional stage lighting fixture with integrated multi-effect dynamic lighting effects. Its core
  • 12x60W LED Moving Head Wave Beam Light
    Model:NST-1260Brand:New StartCountry of origin:China12x60W LED Moving Head Wave Beam Light is a professional stage dynamic effect light that combines shaking, beam, color, and flicker. The 12 lamp
  • 6x60W LED Moving Head Beam Wash Light
    Model:NST-0660Brand:New StartCountry of origin:China6x60W LED Moving Head Beam Wash Light is a multi-in-one stage lighting device that combines head, beam, color, and auxiliary lighting. Its

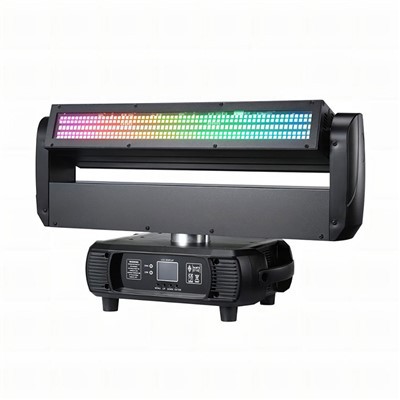

  • LED Double Head Beam Moving Strobe Lights
    Model:NST-0640BSBrand:New StartCountry of origin:ChinaLED Double Head Beam Moving Strobe Lights is a multifunctional stage lighting device whose core features can be summarized as double-sided
  • LED Four Eyes Blinder Retro Stage Light
    Model:NST-F4YBrand:New StartCountry of origin:ChinaThe LED Four Eyes Blinder Retro Stage Light is a stage decoration lighting fixture that emphasizes vintage atmosphere + multi-effect lighting. With
First 12 Last

Key Features

Advanced Optical Mixing

Utilizes homogenized multi-color LED modules (RGBW/RGBAW+UV) coupled with custom total internal reflection (TIR) lenses to eliminate color shadows and multi-colored halos at close projection distances.

Efficient Thermal Architecture

Features an extruded aluminum heat sink combined with copper heat pipes and temperature-regulated low-noise cooling fans, keeping LED junction temperatures below safe operational thresholds.

Rugged Mechanical Design

Enclosed in a corrosion-resistant die-cast aluminum chassis with tempered glass, rated up to IP65 for demanding outdoor or high-humidity environments.

Flicker-Free Operation

High-frequency PWM dimming (adjustable up to 25kHz) ensures interference-free performance for broadcast studios and high-speed camera applications.



Technical Specifications & Engineering Downloads



Engineering Assets: Access complete technical documentation instantly below the specifications.



Parameter

Specification Details

LED Source

High-power multi-chip RGBW / RGBAW+UV LEDs (Custom binning available)

Total Lumen Output

Up to 12,000 lm (Depending on optical configuration)

Beam / Field Angle

Zoom range: 10 degrees to 50 degrees motorized linear zoom

Color Rendering

CRI Ra >= 90, TLCI >= 92 (Optional high-CRI white module)

Control Protocols

DMX512, RDM, Master/Slave, optional wireless DMX (CRMX)

DMX Channels

5 / 9 / 14 channel modes selectable

Dimming Curves

4 selectable 16-bit dimming curves (Linear, Square, Inv-Square, S-Curve)

Strobe Rate

1 to 25 Hz electronic strobe with random pulse effects

Ingress Protection

IP20 (Indoor touring) / IP65 (Outdoor architectural waterproof variant)

Power Supply

Electronic auto-switching 100-240V AC, 50/60 Hz

Max Power Consumption

200W / 350W variants

Cooling System

Temperature-controlled silent copper heat-pipe cooling

Housing Material

Die-cast aluminum alloy with electrostatic powder coating

Operating Temperature

-20°C to 45°C ambient

Certifications

CE, RoHS, ETL compliant





Installation & Configuration
6x60w-led-moving-head-beam-wash-light20260318100846bda92

Rigging & Mounting

Equipped with dual omega brackets with quick-lock fasteners for rapid truss mounting.
Includes safety cable attachment points rated for 10x the fixture weight.



outdoor-48x10w-led-city-color-light20260317052422f4fe4

Electrical Connection

Utilizes locking power connectors (PowerCON TRUE1 compatible) for secure power-in and power-through daisy-chaining.
Maximum linkable units: 4 fixtures at 230V AC / 2 fixtures at 120V AC.

outdoor-60x10w-led-city-color-light20260317053205c6899

Signal Routing

3-pin or 5-pin XLR IP-rated data connectors for DMX daisy-chaining. Terminate the final unit with a 120-ohm resistor to prevent signal reflection.

outdoor-10x60w-led-moving-head-beam-light2026031809443098c93

On-Board Menu

OLED display with 4-button tactile navigation for DMX addressing, manual color mixing, and fixture status diagnostics (temperature, operating hours).





Applications
01.

Concert Touring & Stage Productions

Delivers punchy aerial effects, stage washes, and pixel-mapped background dynamics.

02.

TV Studios & Broadcast Venues

Flicker-free high-frequency dimming prevents scan lines on studio cameras.

03.

Architectural Facade Lighting

IP65-rated variants withstand rain, wind, and temperature fluctuations for permanent outdoor building illumination.

04.

Theme Parks & Immersive Spaces

Provides reliable, continuous-duty architectural accent lighting with centralized RDM status monitoring.



Customization & OEM/ODM



Newstart Lighting operates an in-house manufacturing facility equipped with CNC machining centers, SMT placement lines, and automated optical testing labs. We support comprehensive OEM/ODM projects for B2B partners.



Optical Customization

Tailored beam angles, customized LED binning (specific CCT or wavelength matching), and specialized frost filters.




Firmware Integration

Custom DMX channel profiles, proprietary protocol integration, and branded startup splash screens.




Mechanical Adjustments

Custom housing colors (RAL color matching), specialized bracket designs, and private-label laser etching.




Sample Lead Time

Prototype delivery within 7 to 10 working days following technical drawing sign-off.





Quality Control



Reliability in professional environments is verified through systematic testing protocols across our production line.



Raw Material Inspection: Spectroradiometer testing of incoming LED chips to verify chromaticity coordinates within a 3-step MacAdam ellipse.



Thermal Testing: Continuous thermal imaging during full-load burn-in cycles to confirm heat dissipation efficiency.



Environmental Stress Testing
Vibration testing to simulate transit and touring conditions.
Salt spray corrosion testing (ASTM B117) for exterior metal components.
Ingress protection pressure testing for IP65 models.



Electrical Safety Testing: Dielectric withstand voltage testing (Hi-Pot) at 1500V AC and earth continuity verification on 100% of finished goods.

outdoor-120x10w-led-city-color-light20260318085701eb784



Technical Support





Documentation Package

Complete access to downloadable IES photometric files, user manuals, dimensional CAD drawings, and DMX channel charts.



Engineering Consultation

Direct access to our lighting application engineers for project photometric simulation (Dialux layout support).



Warranty & Spares

Standard 2-year limited factory warranty covering parts and labor, backed by a dedicated inventory of replacement modules and power supplies.







FAQ



Q: What is the minimum order quantity (MOQ) for custom OEM/ODM housing colors or firmware?

A: The standard MOQ for custom RAL housing colors is 50 units per batch. For custom DMX channel mapping or firmware integration, the MOQ is 100 units. Standard catalog items have no strict MOQ for initial evaluation orders.

Q: How do you prevent color inconsistency between different production batches?

A: We source LED emitters strictly from Tier-1 manufacturers and enforce binning tolerances within a 3-step MacAdam ellipse. Each fixture's chromaticity is calibrated on our goniophotometer testing bench before packaging.

Q: What is the actual fan noise level during full-output operation?

A: The intelligent temperature-control algorithm adjusts fan speeds dynamically. At full output in a 25°C ambient environment, acoustic noise measures under 32 dB(A) at a 1-meter distance, suitable for acoustically sensitive theatre environments.

Q: Are the power and data cables included with the fixture?

A: Standard shipments include one power-linking cable (1.5 meters) with a mating connector and one safety cable. DMX data cables are sold separately based on required run lengths.

Q: What certifications do these fixtures hold for export to European and North American markets?

A: Our fixtures hold CE, RoHS, and EMC compliance certifications for Europe, and ETL/CETL certifications for North American electrical safety standards. Test reports and certificates are available for instant download in Section 3.

Q: What is the standard lead time for bulk orders (500+ units)?

A: Standard production lead time for bulk orders is 25 to 35 calendar days following deposit receipt and confirmation of pre-production samples.



modular-1
Request a Quote

To receive a formal quotation, volume pricing tiers, or request engineering sample units for evaluation, please submit your project specifications to our technical sales team via newstartlighting.com.
Required Project Details: Estimated quantity, target delivery port, required protection rating (IP20/IP65), and specific control protocol requirements.
