Product Overview


The Newstart Industrial Laser Light Series delivers precision optical projection for high-ambient-light environments, heavy manufacturing facilities, and demanding architectural installations. Utilizing solid-state laser diode modules paired with multi-element glass optics, these fixtures project high-visibility lines, grids, or spot markers over extreme distances without degradation from ambient light.




  • 10W Moving Head Laser Light
    Model:NST-YT10LBrand:New StartCountry of origin:China1. Precise head positioning: Driven by high-precision stepper motors, it can achieve a wide range of rotation from 160°-540° horizontally (Pan) to
  • 15W Moving Head Laser Light
    Model:NST-15WBrand:New StartCountry of origin:China15W Moving Head Laser Light1. Precise head positioning: Driven by high-precision stepper motors, it can achieve a wide range of rotation from

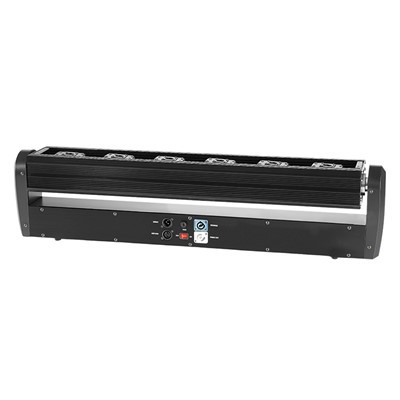

  • 6 Eyes RGB Laser Light
    Model:NST-RGB6LBrand:New StartCountry of origin:China6 Eyes RGB Laser Light Core Features: Equipped with 6 independent laser light sources, it supports multi-color laser beam output in red, green,
  • 6 Eyes Red Laser Light
    Model:NST-R6LBrand:New StartCountry of origin:ChinaCore Features: Equipped with 6 independent laser light sources, supports custom output of multi-color laser beams such as single red or single green
  • 8 Eyes Red Laser Light
    Model:NST-R8LBrand:New StartCountry of origin:China8 Eyes Red Laser Light Core Features: Equipped with eight independent laser light sources, supports custom output of multi-color laser beams such as
  • Sky Star Laser Light
    Model:NST-2LBrand:New StartCountry of origin:ChinaThe Sky Star Laser Light uses a special 2W full-color starry sky laser module. Through ingenious optical design, it makes the light spot effect rich
  • 10W RGB Laser Light
    Model:NST-10LBrand:New StartCountry of origin:China10W full color laser light with 10W RGB light source, built-in program with hundreds of program effects, can play various beam, complex graphics,

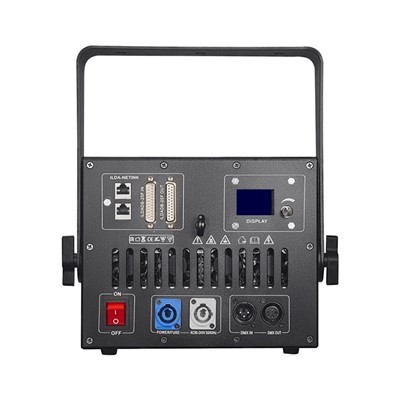

  • 15W RGB Laser Light
    Model:NST-RGB6LBrand:New StartCountry of origin:China15W Full color laser light with 15W RGB light source, built-in program with hundreds of program effects, can play various beam, complex graphics,
  • Outdoor 20W RGB Laser Light
    Model:NST-30LBrand:New StartCountry of origin:ChinaOutdoor 20W RGB Laser Light is a high-performance professional-grade outdoor full-color animated laser light that combines high-brightness output,

Key Features

High-Visibility Wavelength Selection

Utilizes 520nm direct-diode green lasers, offering up to 5 times higher human eye sensitivity than traditional 635nm red lasers under identical optical power outputs.

Solid-State Thermal Architecture

Direct thermal path design couples the laser diode baseplate directly to the exterior heat sink, restricting thermal resistance and ensuring stable output across ambient ranges from -20C to 50C.

Industrial Ingress Protection

Fully potted internal driver electronics and dual O-ring optical window seals achieve an IP67 rating, resisting cutting fluids, dust, washdown chemicals, and heavy rain.

Electrical Transient Suppression

Integrated surge protection (4kV differential, 6kV common mode) shields sensitive laser driver ICs from factory grid fluctuations and inductive load switching.



Technical Specifications



Parameter

Specification Details

Optical Output Power

80mW to 1000mW (Configurable by model)

Laser Wavelength

520nm (Green) / 638nm (Red) / 450nm (Blue)

Laser Safety Class

Class 2 / Class 3R / Class 3B (Application dependent)

Beam Profile

Line, Cross, Grid, or Custom Gobo Pattern

Lens Divergence Angle

30 degrees to 120 degrees adjustable glass optics

Input Voltage

AC 100-240V (50/60Hz) or DC 24V industrial supply

Power Consumption

15W - 65W (Model dependent)

Housing Material

Extruded 6063-T5 Aluminum Alloy

Surface Treatment

Type II Hard-Anodized (Black / Industrial Yellow)

Ingress Protection (IP)

IP67

Operating Temperature

-20C ~ +50C

Expected Diode Lifespan

> 15,000 hours (at 25C ambient)

Mounting Interface

360 degrees adjustable stainless steel swivel bracket

Compliance Documentation

CE, RoHS, FCC, FDA/CDRH accession documentation ready



Installation & Configuration



10w-rgb-laser-light20260317050212813f6

Mechanical Mounting

Secure the 360 degrees stainless steel mounting bracket to a rigid overhead truss, gantry, or wall surface using M8 fasteners.
Adjust the pan and tilt angles to align the projected laser line with the designated floor or surface target. Lock the positioning bolts with a torque wrench (recommended torque: 12 Nm).

outdoor-20w-rgb-laser-light202603170516586fe7e

Electrical Connection

For AC models: Connect line (Brown/Live), neutral (Blue/Neutral), and earth ground (Green/Yellow) to a sealed junction box in accordance with local electrical codes.
For DC models: Connect to a regulated DC 24V power supply, ensuring correct polarity. Maintain cable runs under 30 meters using 1.5 mm2 copper conductors to prevent voltage drop.

sky-star-laser-light20260317045426483cc

Focus Adjustment

Loosen the optical barrel locking ring on the front aperture. Rotate the optical lens sleeve until the projected line width measures between 2 mm and 5 mm at the target surface, then retighten the locking ring.





Applications
01.

Overhead Crane Safety Warning

Projects high-visibility boundary lines around moving crane hooks to warn ground personnel of overhead loads in steel mills and assembly plants.

02.

Automotive & Logistics Walkway Guidance

Replaces floor tape and painted lines in high-traffic forklift lanes, withstanding heavy tire abrasion and chemical washdowns.

03.

Robotics & Automated Guided Vehicle (AGV) Corridors

Defines dynamic safety perimeters for autonomous material handling routes.

04.

Architectural & Facade Accent Lighting

Projects crisp linear light accents along exterior building structures, bridges, and monuments requiring IP67 fixtures.



Customization & OEM/ODM

Newstart Lighting operates an in-house optical engineering and manufacturing facility, supporting comprehensive OEM and ODM requirements for industrial and architectural partners.




Optical Customization

Custom wavelength tuning, non-standard fan angles, multi-line diffractive optics, and custom gobo pattern etching.





Electrical & Control Integration

Custom input voltages (e.g., DC 12V-48V), DMX512 dimming integration, or PWM remote trigger inputs for automated safety interlocking.





Mechanical & Branding OEM

Custom housing extrusion profiles, powder coating or anodizing color matching, and laser-etched client nameplates and serial numbers.







Quality Control

Every laser lighting unit undergoes a strict multi-stage testing protocol before leaving our manufacturing floor.

15w-moving-head-laser-light20260317035912d5c0a

Diode Burn-In Testing

100% of laser diode modules undergo a 24-hour high-temperature full-load burn-in test at 45C ambient to screen out infant mortality failures.

6-eyes-rgb-laser-light20260317041412c4f86

Optical Power Meter Calibration

Output power is measured using calibrated integrating sphere photometers to ensure compliance within plus or minus 5% of rated specifications.

6-eyes-red-laser-light20260317042833cd779

Thermal Imaging Inspection

Thermal performance is verified using infrared cameras under load to ensure effective heat dissipation across the aluminum housing.

10w-moving-head-laser-light2026031703480797802

Environmental Sealing Test

Fully assembled fixtures undergo a 2-hour water submersion pressure test to verify IP67 joint integrity.





Technical Support



Our engineering team provides direct technical assistance to integration partners and procurement engineers.

Engineering Assets

Downloadable IES photometric files, 3D STEP models, and 2D engineering drawings for system simulation.

Compliance Package

Full validation packages including FDA/CDRH accession numbers, IEC 60825-1 laser safety classification test reports, and CE-EMC declarations available upon request.

Application Engineering

Send your facility blueprints or throw distance requirements to our engineering desk for automated layout and optical simulation reports.





FAQ



Q: What is the primary advantage of 520nm green lasers over 635nm red lasers in industrial environments?

A: 520nm green laser light matches the peak sensitivity wavelength of the human eye (approx. 555nm). Consequently, a 520nm green laser appears up to 5 times brighter to operators than a red laser of identical optical power, ensuring high visibility under bright factory ambient lighting conditions.

Q: How does the fixture manage internal heat without a mechanical cooling fan?

A: The unit uses passive thermal management. The laser diode is mounted directly onto a CNC-machined internal aluminum core that transfers heat to the external finned 6063-T5 aluminum housing. This eliminates moving parts, reducing maintenance points and achieving an IP67 rating.

Q: Can these units be controlled via a PLC or automated safety relay?

A: Yes. DC 24V models can be integrated directly with industrial Programmable Logic Controllers (PLCs) or safety interlock systems to activate projection only when machinery or cranes are in motion.

Q: What is the typical lead time for standard stock units versus custom OEM orders?

A: Standard stock items with default 520nm line optics ship within 3 to 5 business days. Custom OEM/ODM orders involving specialized wavelengths, private labeling, or non-standard housing finishes typically require 3 to 4 weeks following prototype sign-off.

Q: What is the warranty coverage on the laser diode module?

A: We provide a 2-year or 10,000-hour operational warranty (whichever occurs first) covering the laser diode assembly, optical components, and internal driver electronics.



modular-1
Request a Quote

To receive a formal quotation, volume pricing tiers, or project simulation support, submit your technical requirements below.
Required Wavelength / Color: (E.g., 520nm Green / 638nm Red)
Required Output Power: (E.g., 100mW / 200mW / 500mW)
Target Throw Distance & Environment: (E.g., 8 meters mounting height, indoor warehouse floor)
