Guangdong New Start Lighting Co., Ltd. is one of the leading manufacturers and suppliers of outdoor 10x60w led moving head beam light in China. With abundant experience, we warmly welcome you to wholesale customized lighting products at competitive price from our factory. Contact us for pricelist.
Main Features
1. Core configuration
- Light source: 10 60W RGBW four-color main light beads (single-point independent control) + 140-288 0.3W/3W auxiliary light beads (including RGB, cool, warm and white), total power approximately 800W, sufficient brightness.
- Protection: Waterproof rating up to IP65/IP66/IP67 (supports rain and water wading), with cast aluminum housing + sealed design, suitable for outdoor music festivals, cultural and tourism performances and other scenarios.
2 Core features
Effect combinations:
- Beam: 2.8°-31° focus for producing sharp, wide beams;
- Dyeing: RGBW full color mixing + 32-bit linear dimming for fine and even color;
- Dynamic effects: Y-axis 202°-270° shaking, 1-30Hz stroboscopic, running horse, flowing water, particle effects (main light + auxiliary light can operate independently in sync).
- Control mode: Supports DMX512, auto-drive, master-slave, voice-controlled with RDM function, up to 186 channels to meet professional programming requirements.
Technical Specifications

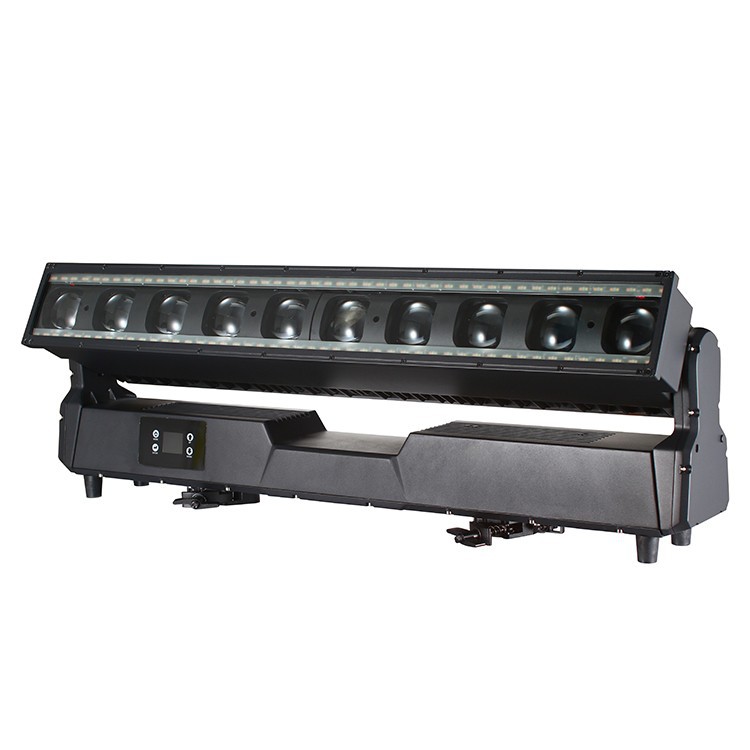

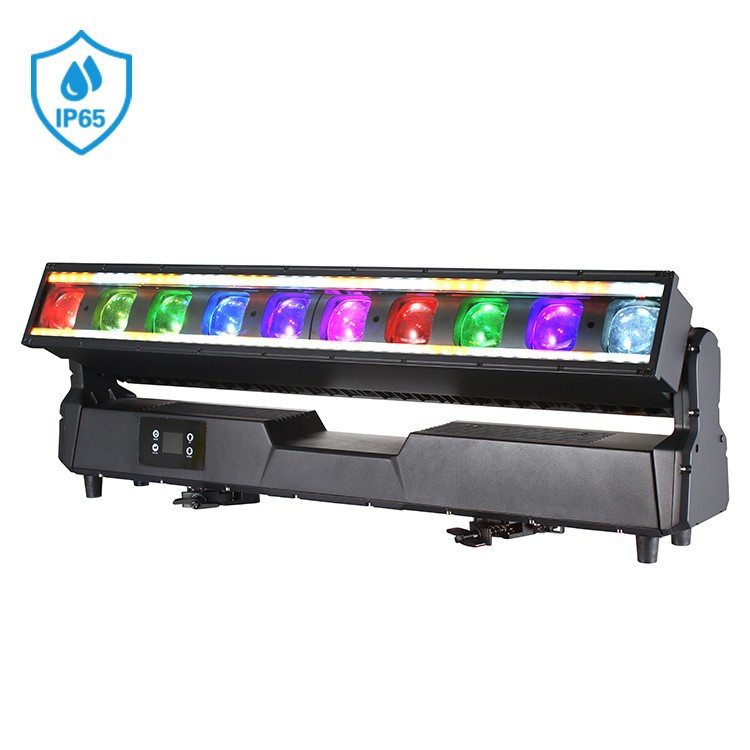

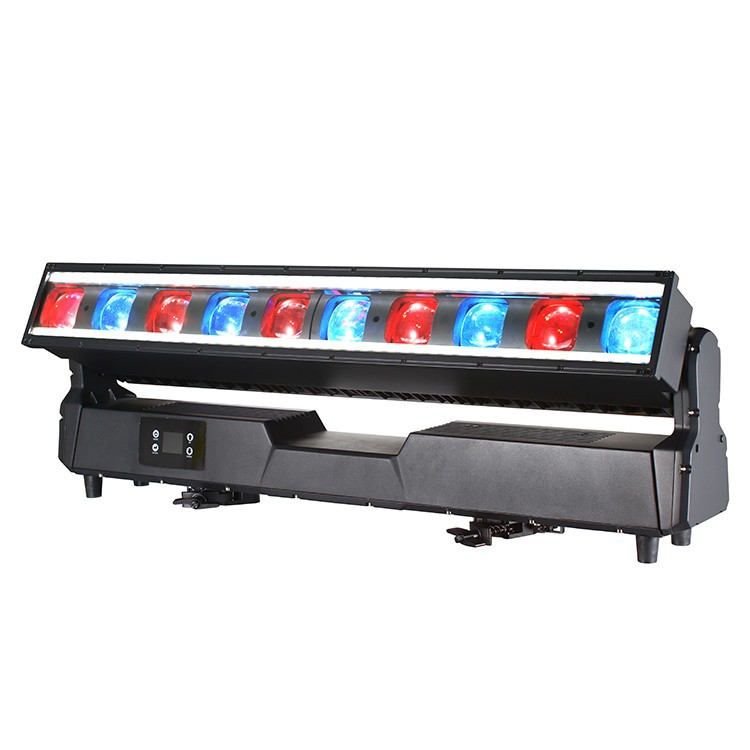

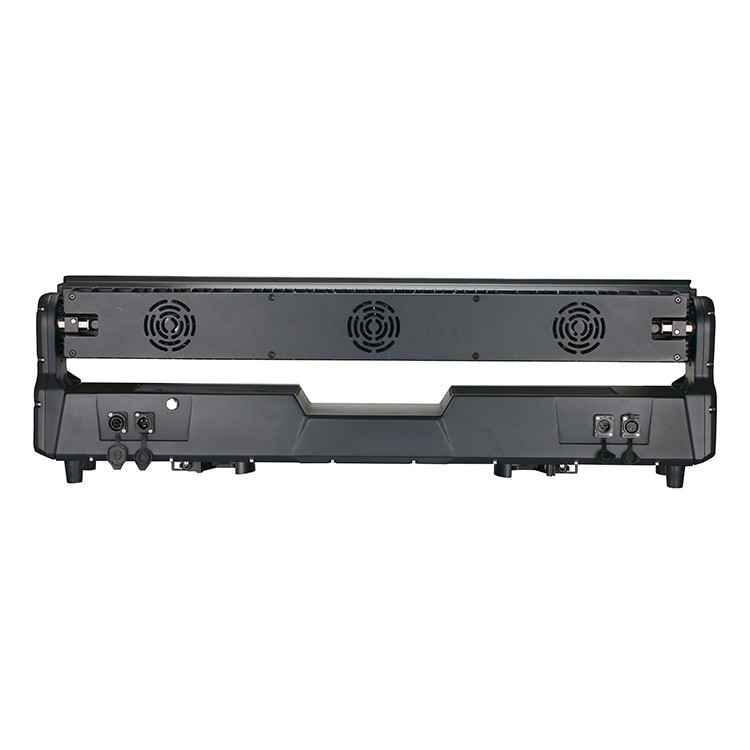

- Product Name: Outdoor 10x60W LED Moving Head Beam Light
- Product model: NST-1060
Light Source
- Main light source: Osram RGBW 10 60W beads
- Stroboscopic auxiliary light:
- 96 2W CW LED
- 96 2W WW LED
- 96 1W RGB LED
Optical System
- Angle: Beam Angle: 2.8°-31° (beam end)
- Spot Angle: 5°-46° (dye end)
- Color temperature: 2800K-8500K
- Overall lamp output illuminance: 21460Lux@ 5 m
- Lamp bead life: 80,000 hours
Effect
- Mixing systems: Uniform RGBW mixing systems and rainbow effects
- Zoom system: Linear electric zoom
- Single-point control: The light source supports independent control for individual units, with outstanding transformation effects
- Effect macros: Static effect macro and dynamic effect macro functions
- Dimming: 0-100% 16-bit fine dimming with four dimming curves
- Stroboscopic: 1-30Hz electronic stroboscopic and random stroboscopic
Controls And Programs
- LCD display in both Chinese and English, with captions automatically reversed.
- Y-axis scan Angle: 202°-270°
- Protection rating: IP65+ for outdoor use
- Dot matrix effect: The left and right groups can be controlled separately, each LED can be controlled independently, colorful and dazzling chase effect
- control mode: auto-drive mode, master-slave mode and DMX512 control mode
- Control protocol: Standard DMX512, RDM protocol
- Optional network function support: Artnet, Klingnet, SACN network protocols
- Data connection: RJ45 network port input/output, three-core or five-core signal input/output
Power Supply And Power
- Total power: 800W
- Voltage: 100V-240V 50-60Hz
- Working environment: Any safe working environment mirror
- Operating environment temperature: -20°C to 40°C
Features
- High-noise motor for precise focusing, no spot jitter
- Powerful fast stroboscopic effect, high-definition images no flicker
- Efficient heat dissipation system, full temperature monitoring, high-temperature automatic adjustment protection, no risk of lamp damage
- Intelligent speed-regulating fan, real-time temperature display
- Chassis structure: High-temperature resistant engineering plastic outer mold, high-hardness metal, various lamp body colors such as black, white, gray, etc. You can freely choose according to your needs
Light Specifications
- Length: 1010mm (39.76")
- Width: 151mm (5.94")
- Height: 332 mm (13.07")
- Net weight: 26kg (57.2bs)
Flight Case Size
- Length: 1070mm (42.12")
- Width: 570 mm (22.44")
- Height: 570 mm (22.44")
- Net weight: 106 kg(233.2lbs) (including standard 1 in 3 airbags)
Others
- Protection class: IP20
- Operating environment: -20 ° C to 45 ° C
- Maximum surface temperature of the lamp body: 65 ° C
- Maximum current of the lamp: 1.9A/220V; 4.3 A / 110 v
Certification
- ISO9001 Quality Management System certification
- CE certification
Installation
- Can be installed horizontally or vertically
- Universal operating position
- 2 fixed light hooks for 50mm light stands
- Safety rope connection hole
Factory Configuration
- Electronic Instruction Manual
- Power cord, signal cord, hangers 1 set
- Two light hooks suitable for 50mm light stands
