Guangdong New Start Lighting Co., Ltd. is one of the leading manufacturers and suppliers of outdoor 48x10w led city color light in China. With abundant experience, we warmly welcome you to wholesale customized lighting products at competitive price from our factory. Contact us for pricelist.
Main Features
- - High level protection standard: Meets IP65/IP66 level protection requirements, completely dust-proof (dust cannot enter) and resistant to strong water spray, wave impact, and even short immersion. The housing is made of aluminum die-cast one-piece and reinforced with sealing strips to effectively prevent water vapor and dust from entering the internal circuits.
- - Extreme environment adaptation: Operating environment temperature range -30 ° C to 45 ° C can withstand harsh weather conditions such as extreme cold, high temperature, high humidity, etc. The lamp body surface is coated with anti-corrosion coating, suitable for long-term outdoor exposure scenarios without additional protective measures.
- - Heat dissipation and silent design: High thermal conductivity extruded aluminum profile heat dissipation body + air convection heat dissipation structure, fanless silent operation, lamp cup surface temperature controlled within 60 ° C to avoid performance degradation caused by overheating, built-in temperature sensor supports automatic power reduction protection in case of over-temperature.

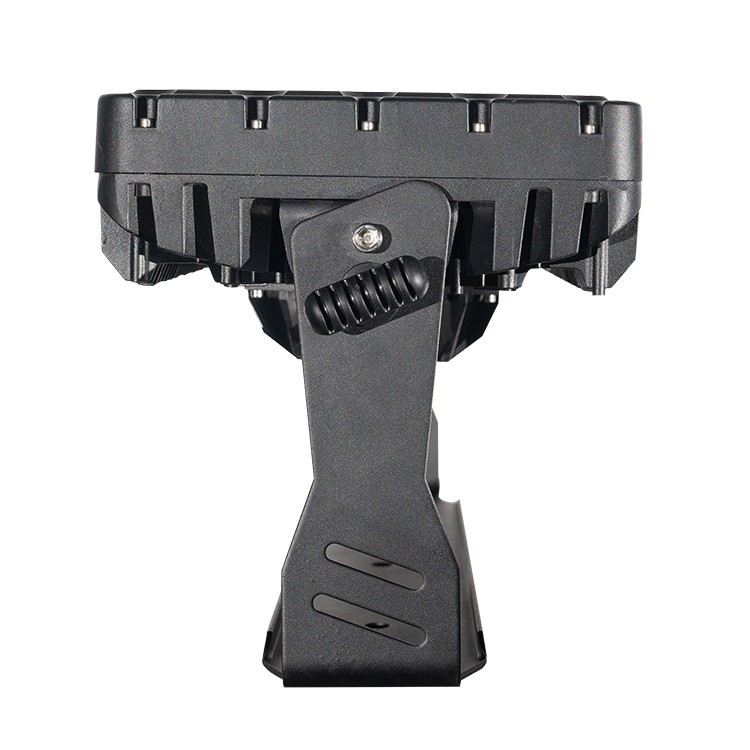

- With an adjustable mounting bracket, it supports horizontal and vertical multi-angle installation, uses a snap-on structure with a waterproof socket for easy installation and disassembly, supports parallel expansion of multiple lamps, has high lamp placement efficiency, and is suitable for different installation scenarios such as high-altitude work and ground layout.
- - Safety and stability guarantee: Built-in EMC electromagnetic compatibility module effectively avoids radio frequency interference and light flicker, the driver power supply is externally installed in reverse, away from the high-temperature area of the lamp body, further extending service life, in compliance with IEC 60529 and GB/T 4208 national standards.
Technical Specifications

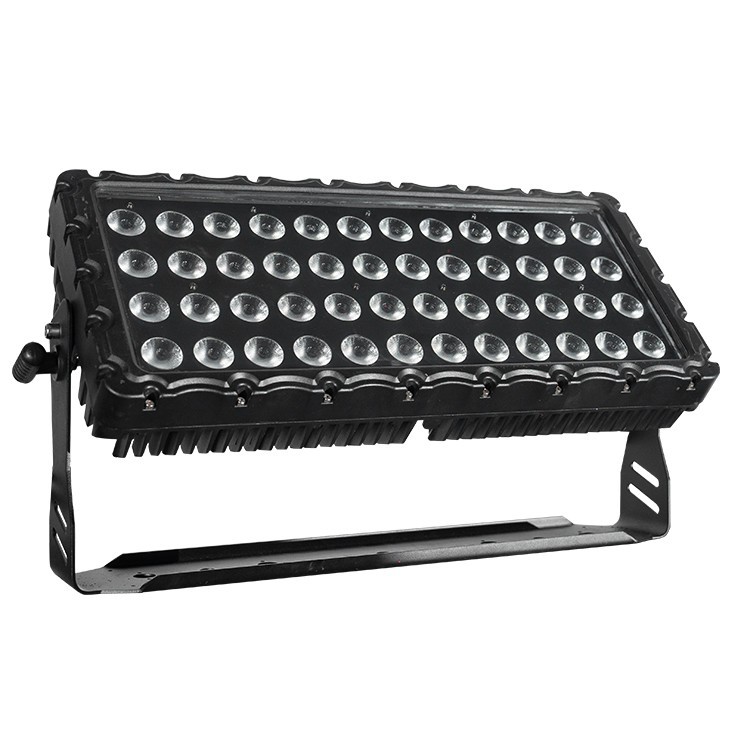

- Product Name: Outdoor 48x10W LED City Color Light
- Product Model: NST-TGD48
- Waterproof Grade:IP65
- Light Source: LED48 10W RGBW four-in-one lamp beads
- LED Lifetime: 80,000 hours
- Color: RGBW linear mixing
- Heat Dissipation: Thickened cast aluminum heat dissipation, natural heat dissipation, thermal gel heat dissipation
- Stroboscopic: Independent electronic stroboscopic
- Exit Lens Angle: 36°
- Dimming: 0-255, 0%-100% linear dimming
Controls And Programs

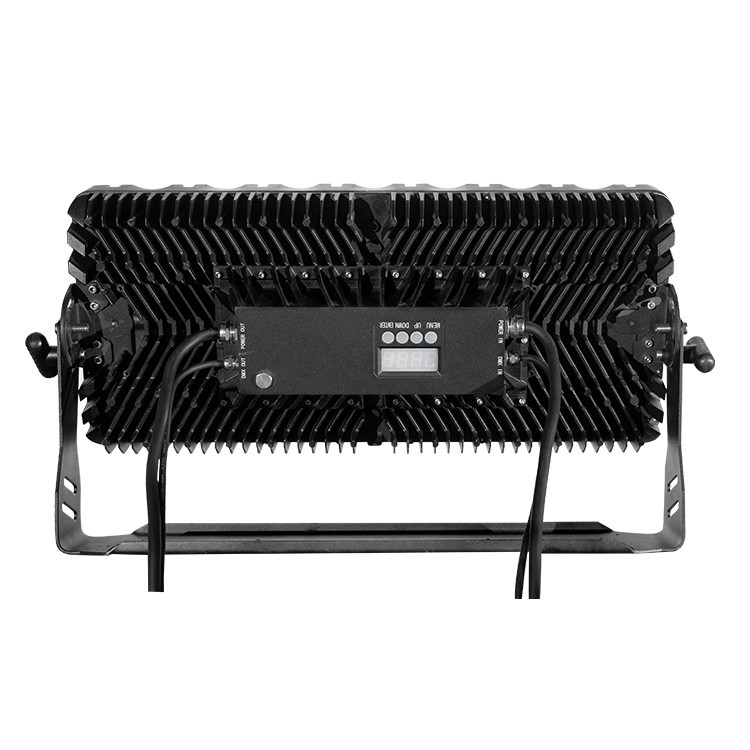

- 4 physical keys
- Control Protocol: Compatible with master-slave mode, voice-controlled mode, master-slave synchronization, DMX512, RDM control protocol, single-machine mode
Electrical And Interface
- Input voltage range: 110-240V to 50/60Hz
- Power: 500W
- Power socket: Body integrated waterproof power cable 1.5 meters 3 cores 2.5 flat
- Signal input/output: Waterproof 1.5m three-core card socket integrated signal cable
Device Size And Weight
- Length: 646mm (25.43")
- Width: 255mm (10.03")
- Height: 330mm (12.99")
- Luminaires net weight: 13.8kg (30.36lbs)
Carton Size And Weight 1in1
- Length 750mm (29.52")
- Width: 450mm (17.71")
- Height: 210mm (8.26")
- Gross weight: 17.5kg(38.5lbs)
Working Environment
- Maximum ambient temperature: 40°C
- Minimum operating temperature: -20°C
- Maximum surface temperature: 65°C
Certification
- ISO9001 Quality Management System certification
- CE certification
Installation
- Can be installed horizontally or vertically
- Universal operating position
- 2 fixed eagle-claw lamp hooks for 50mm lamp stands
Factory Configuration
- One use manual
- 2 Eagle claw lamp hooks
- 1 Safety rope
Order & Shipment
Q1: What is the lead time for regular orders and customized orders?
A1: For regular stock products, the lead time is 3-5 working days. For OEM orders, the lead time is 15-20 working days after sample confirmation. For ODM orders, it takes 25-35 working days (depending on the R&D and production cycle). We will confirm the exact delivery time with you before placing the order.
Q2: What shipping methods do you offer?
A2: We cooperate with well-known international logistics companies such as DHL, FedEx, UPS, TNT for small-batch orders, which can deliver goods to your door within 6-10 days. For large-batch orders, we can arrange sea shipping, air shipping or railway shipping according to your needs, and provide door-to-door, port-to-port or warehouse-to-warehouse services. We will help you choose the most cost-effective shipping method based on your order quantity and delivery time requirements.
Q3: How do you package the products to avoid damage during shipping?
A3: We use high-quality packaging materials, including shockproof foam, cartons with reinforced edges, and flight cases for large or fragile products. Each product is individually packaged and tested for impact resistance before shipment. We also purchase transportation insurance for all orders to ensure that you can get compensation in case of product damage during shipping.
