Guangdong New Start Lighting Co., Ltd. is one of the leading manufacturers and suppliers of 12x60w led moving head wave beam light in China. With abundant experience, we warmly welcome you to wholesale customized lighting products at competitive price from our factory. Contact us for pricelist.
Main Features
1. Light source and brightness
- 12x60W RGBW 4-in-1 LED beads, each individually controllable;
- With a total power of about 800W and a luminous flux of up to 132,000 lumens, high brightness and uniform color.
2. Dynamic control
- The 12 lamp heads support independent shaking, with a Y-axis Angle of approximately 220° for a "thousand-handed Guanyin" dynamic effect;
- Supports point-by-point and zonal control, and can perform complex light shows such as pixel mapping and running lights.
3. Optical effects
- Supports zoom focusing (with an Angle of 3.5°-36°), with the option to switch between "beam (narrow Angle)" or "light curtain (wide Angle)" effects;
- With 0-100% linear dimming, 1-30Hz stroboscopic (speed adjustable), and RGBW stepless color mixing
Technical Specifications

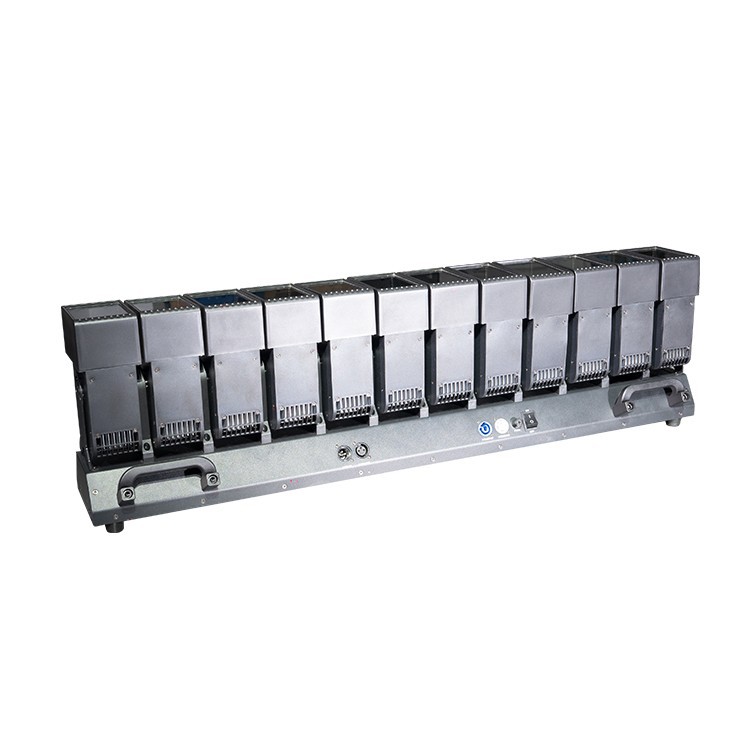

- Product Name: 12x60W LED Moving Head Wave Beam Light
- Product Model: NST-1260
Optical System
- Light source: Osram 4IN1 RGBW 60W LED 12
- Shite light color temperature: 6500K
- LED lifetime: 80,000 hours
- Luminous flux: 132000 lumens
- Zoom Angle: 3.5°-36°
- Coated lens maintains high brightness for a long time
Effect
- Features: Single swing + dye + beam
- Dimmer: 0-100% linear dimming system, 16-bit fine dimming
- Y-axis scanning Angle: 220°
- Pixel by pixel, each LED controllable
- Stroboscopic frequency: 1-30hz, no flicker
- Magnetic encoders automatically calibrate
Voltage And Power
- Total power: 800W
- Input voltage: AC 90V-250V, 50-60HZ
Control System
- Display: LCD display; 4 touch keys
- DMX channels: 20/53/101/155/169/179 CHS
- Control modes: master-slave synchronization, independent mode, DMX512 control mode, RDM control
Electrical And Interface
- DMX Link: 3-core DMX XLR
- Power connection power input and output
- Protection level: lP20, indoor use
- Housing: heat-resistant plastic module + hard metal, black/silver/white available
Light Specifications
- Length: 1010mm (39.76")
- Width: 165mm (6.49")
- Height: 300 mm (11.81")
- Net weight: 27 kg (59.4lbs)
Working Environment
- Maximum ambient temperature: 40°C
- Minimum operating temperature: -20°C
- Maximum surface temperature: 65°C
Certification
- ISO9001 Quality Management System certification
- CE certification
Installation
- Can be installed horizontally or vertically
- Universal operating position
- 2 fixed folding light hooks for 50mm light stands
- Safety rope connection hole
Factory Configuration
- Electronic Instruction Manual
- Power cord, signal line
- 2 fixed folding light hooks for 50mm light stands
