Guangdong New Start Lighting Co., Ltd. is one of the leading manufacturers and suppliers of five heads led moving head beam light in China. With abundant experience, we warmly welcome you to wholesale customized lighting products at competitive price from our factory. Contact us for pricelist.
Main Features
1. Light source and brightness
- 5x60W RGBW quad-in-1 LED main beads with radiance of 6 20W golden COB, output 2.5° narrow Angle sharp beam;
- Supports dynamic effects such as full-color mixing, white stroboscopic, rolling beams, and running lights.
2. Dynamic controls
- X-axis horizontal stepless rotation, 5 lamp heads independently oscillating vertically 270°, supporting individual/group linkage for precise beam trajectory.
3. Manipulation and adaptation
- Compatible with DMX512, RDM, voice control, auto-drive, master-slave and other modes, compatible with professional consoles or automatic scenarios;
- Cast aluminum body + efficient heat dissipation, compatible with AC100-240V wide voltage range, suitable for various scenarios such as bars and banquet halls.
Technical Specifications

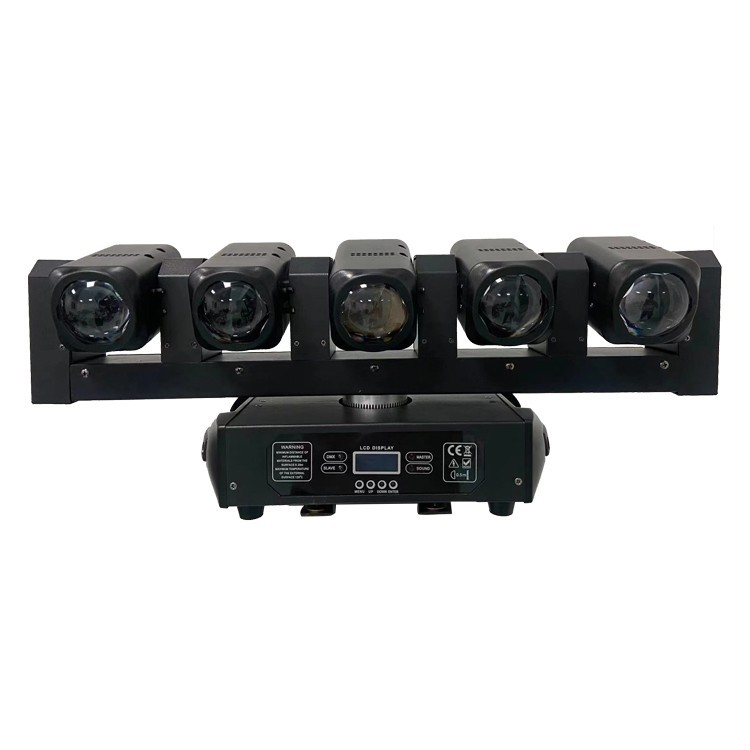

- Product Name: Five Heads LED Moving Head Beam Light
- Product model: NST-W40
Optical System
- Light source: Main light is 5 60W RGBW LED beads, radiant light is 6 20W golden COB
- White light color temperature: 6500K
- Service life: 50,000 hours
- Beam Angle: 2.5°
- Coated lens maintains high brightness for a long time
Effect
- Lighting effects: Full color mixing, white stroboscopic, rolling beam, running horse light effect
- Dimmer: 0-100% linear dimming system, 16-bit fine dimming
- X-axis horizontal stepless rotation, Y-axis 220° vertical scan
- Each LED head can control
- The stroboscopic frequency: 1 to 30HZ, no flicker
- Optional RDM, Artnet
- Magnetic encoders automatically correct
Voltage And Power
- Total power: 350W
- Input voltage: AC 90V-250V, 50-60HZ
- Working position: Any safe working position
Control System
- Display: LCD display, screen can be inverted for display; 4 touch keys
- DMX channels: 44/29/18/14 channels
- Control modes: master-slave, auto-run mode, DMX512 control mode, RDM control

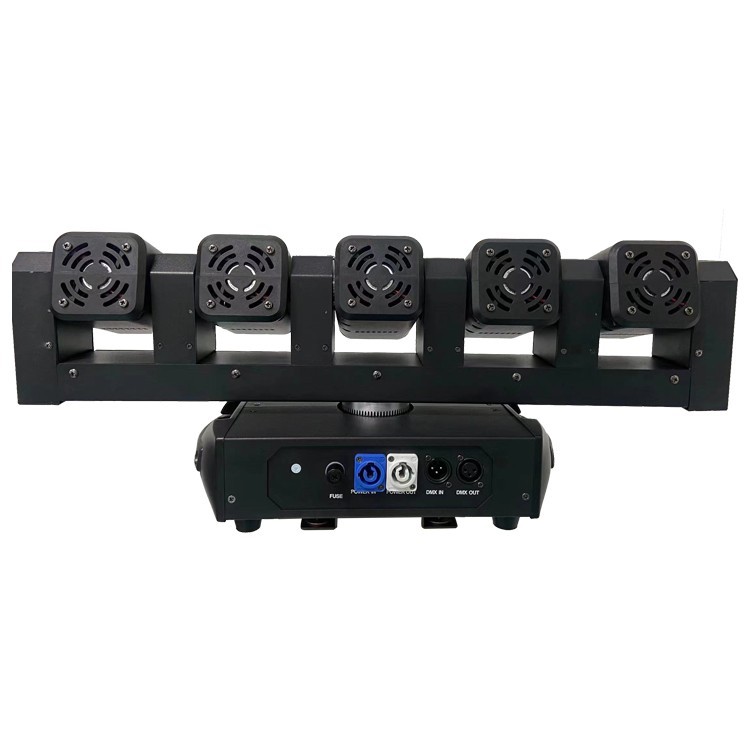

Electrical And Interface
- DMX Link: 3-pin DMX XLR
- Power connection power input and output
- Protection class: lP20 indoor use
- Housing: Heat-resistant plastic module + hard metal, black, high-efficiency cooling fan
Light Specifications
- Length: 660 mm (25.98")
- Width: 200mm (7.87")
- Height: 300mm (11.81")
- Net weight: 10.4kg (22.88bs)
Working Environment
- Maximum ambient temperature: 40°C
- Minimum operating temperature: -20°C
- Maximum surface temperature: 65°C
Certification
- ISO9001 Quality Management System certification
- CE certification
Installation
- Can be installed horizontally or vertically
- Universal operating position
- 2 fixed light hooks for 50mm light stands
- Safety rope connection hole
Factory Configuration
- Electronic Instruction Manual
- Power cord, signal line
- 2 fixed light hooks for 50mm light stands
