Product Overview


The Newstart Lighting LED Par Light Series is engineered for professional AV integrators, stage rental companies, and architectural lighting contractors who demand high optical output, color consistency, and thermal reliability. Utilizing high-bin LED emitters coupled with precision-engineered optical lenses, these fixtures deliver uniform wash coverage, smooth dimming, and flicker-free operation required for broadcast studios and live performances. Built with extruded aluminum housings and rigorous IP-rated sealing options, our fixtures withstand demanding tour schedules and harsh outdoor environments.

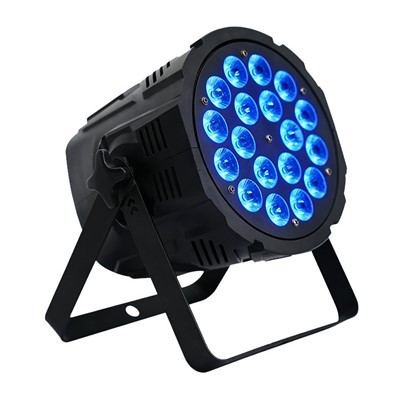

  • High Quality 18x12W RGBW 4 in 1 LED Par Light
    Model:NST-18SBrand:New StartCountry of origin:ChinaHigh Quality 18x12W RGBW 4 in 1 LED Par Light features a single 10W high-power RGBW four-color integrated LED chip with excellent light efficiency
  • 18x12W RGBW 4 in 1 LED Par Light
    Model: NST-18KBrand:New StartCountry of origin:China18x12W RGBW 4 in 1 LED Par Light is a professional stage lighting fixture that combines high brightness with fine tinting effect. Its core
  • LED Par 54x3W RGB
    Model:NST-54KBrand:New StartCountry of origin:ChinaThe LED Par 54x3W RGB is a cost-effective professional stage color lighting fixture. Its core advantages focus on wide coverage color + stable
  • High Quality 24x12W RGBW 4 in 1 LED Par Light
    Model:NST-24KBrand:New StartCountry of origin:ChinaHigh Quality 24x12W RGBW 4 in 1 LED Par Light with exclusive appearance design and professional lighting performance, become the preferred lighting

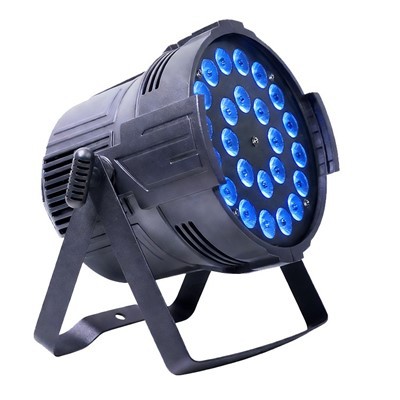

  • 24x12W RGBW 4 in 1 LED Par Light
    Model:NST-24KBrand:New StartCountry of origin:China24x12W RGBW 4 in 1 LED Par Light features a single 10W high-power RGBW four-color integrated LED chip with excellent light efficiency and low energy

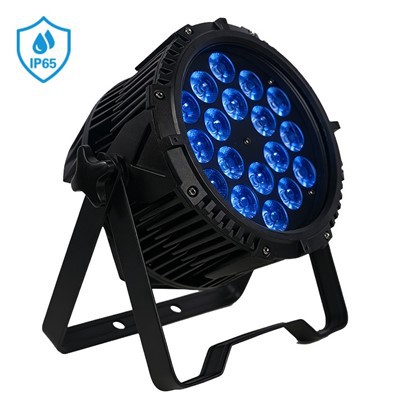

  • Outdoor 18x12W RGBW 4 in 1 LED Par Light
    Model:NST-FS18Brand:New StartCountry of origin:ChinaOutdoor 18x12W RGBW 4 in 1 LED Par Light is a cost-effective lighting fixture that combines professional dyeing effect with outdoor adaptability.

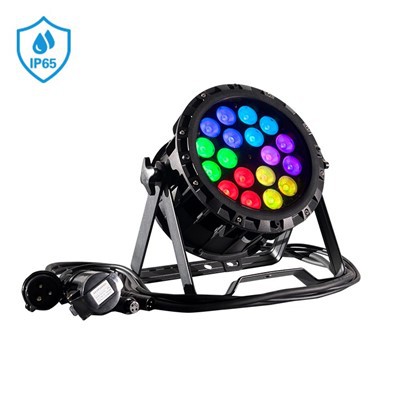

  • Outdoor Circle Control 18x12w RGBW LED Par Light
    Model:NST-FS18QBrand:New StartCountry of origin:ChinaOutdoor Circle Control 18x12w RGBW LED Par Light is a professional color-colored light that combines outdoor adaptability and circular control

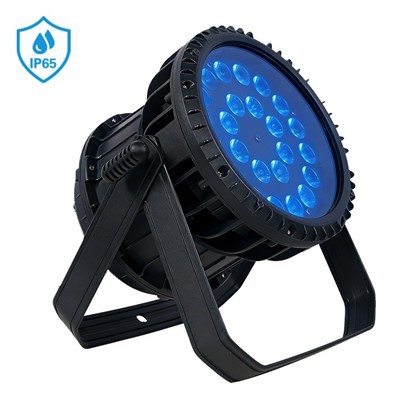

  • Outdoor 24x12W RGBW 4 in 1 LED Par Light
    Model:NST-FS24Brand:New StartCountry of origin:ChinaOutdoor 24x12W RGBW 4 in 1 LED Par Light is IP65 waterproof, soft light without speck. RGBW four-color mixed light supports dimming, stroboscopic,

Key Features

Modular Optical System

Interchangeable lens kits allow field-adjustable beam angles, transitioning from narrow beam throw to wide wash coverage.

Flicker-Free Operation

Adjustable PWM frequency settings (up to 25kHz) eliminate scanning lines and flickering under high-speed broadcast cameras.

Robust Control Protocols

Full support for DMX512-A and RDM (Remote Device Management) protocols, allowing two-way communication for remote address setting and diagnostic monitoring.

High Color Fidelity

Employs high-CRI (CRI > 90, TLCI > 95) LED sources, ensuring natural skin tones and accurate color rendering for television broadcast and theatrical stages.



Technical Specifications



Parameter

Standard Model (Indoor)

Tour/Rental Model (Heavy-Duty)

Architectural Model (IP65 Outdoor)

LED Source

18x 15W RGBWA+UV 6-in-1 LED

1x 200W COB (RGBW / WW+CW)

24x 10W RGBW 4-in-1 LED

Input Voltage

AC 100V-240V, 50/60Hz

AC 100V-240V, 50/60Hz

AC 100V-240V, 50/60Hz

Power Consumption

220W

240W

250W

Beam Angle

25 degrees (Optional: 15 degrees, 45 degrees)

60 degrees (Reflector cup)

30 degrees

CRI / TLCI

CRI > 90, TLCI > 92

CRI > 92, TLCI > 95

CRI > 85

Control Protocol

DMX512, Master/Slave, Auto

DMX512, RDM, Art-Net (optional)

DMX512, RDM

DMX Channels

6 / 10 CH

4 / 8 / 10 CH

4 / 8 CH

Dimming Resolution

16-bit, Electronic (0 to 100 percent)

16-bit, Electronic (0 to 100 percent)

16-bit, Electronic (0 to 100 percent)

Cooling System

Convection cooling (Fanless)

Temperature-controlled low-noise fan

Convection cooling (Sealed chassis)

Ingress Protection

IP20

IP20

IP65

Housing Material

Extruded Aluminum

Die-cast Aluminum

Die-cast Aluminum & Tempered Glass

Operating Temp

-20 degrees Celsius to 40 degrees Celsius

-20 degrees Celsius to 45 degrees Celsius

-30 degrees Celsius to 50 degrees Celsius

Certifications

CE, RoHS, FCC

CE, RoHS, ETL, FCC

CE, RoHS, IP65, FCC



Installation & Configuration



18x12w-rgbw-4-in-1-led-par-light202603160510135dcc6

Mounting

Secure the dual-bracket yoke to truss clamps using standard M10 bolts, or utilize the floor-standing dual-bracket configuration for ground-row uplighting. Ensure a secondary safety cable is secured through the designated anchor point on the rear chassis.

Outdoor Circle Control 18x12w RGBW LED Par Light

Power & Signal Connection

Link power via PowerCON TRUE1 in/out connectors (max 8 units linked at 230V). Connect DMX data using 3-pin or 5-pin XLR cables. Terminate the final fixture in the DMX line with a 120-ohm resistor.

24x12w-rgbw-4-in-1-led-par-light20260317085938a63b5

Addressing & Menu Setup

Use the OLED display and tactile navigation buttons (or RDM controller) to set the DMX start address, select dimmer curves (Linear, Square Law, Inverse Square, S-Curve), and configure PWM frequency.



Applications


Concerts & Touring Events

High-output stage wash and backlighting for temporary rigging structures.

Broadcast Studios & Theaters

Silent operation and accurate color mixing for television sets, auditoriums, and theatrical productions.

Architectural & Façade Lighting

IP65-rated models deployed for exterior wall grazing, bridge illumination, and permanent outdoor installations.

Corporate Venues & Events

Flexible beam angles and smooth color transitions for hotel ballrooms, exhibitions, and product launches.



Customization & OEM/ODM

Backed by our 10,000 square meter manufacturing facility equipped with automated SMT placement lines, CNC machining centers, and an in-house optical laboratory (supported by 35 R&D engineers and a monthly output of over 20,000 fixtures), Newstart Lighting provides comprehensive OEM/ODM services for global brand owners and project contractors:




Hardware Modifications

Custom housing colors (RAL color matching), bracket dimensions, and proprietary connector types (True1, XLR 3/5-pin, or waterproof aviation plugs).





Hardware Modifications

Tailored DMX channel charts, customized start-up splash screens, and localized menu languages.





Optical Tuning

Custom binning selection for specific CCT requirements (e.g., precise 3200K / 5600K or specialized theatrical white balances).





Quality Control



Every fixture undergoes a strict, multi-stage quality assurance process before leaving our facility:


01


Component Screening

LED chips are sorted using automated integration spheres to guarantee bin consistency within a 3-step MacAdam ellipse, preventing batch color mismatch.


02


Environmental Testing

Representative samples from each production run undergo thermal aging tests in a 50 degrees Celsius chamber for 48 hours at full load, alongside vibration testing to simulate transit and rigging stress.


03


Electrical & Optical Verification

Automated test benches measure electrical safety (Hi-Pot test at 1500V), power factor, actual lumen output, and chromaticity coordinates prior to final packaging.

high-quality-24x12w-rgbw-4-in-1-led-par-light20260316053306a154c



Technical Support

Documentation Access

Complete IES files, photometric data reports, CAD drawings, user manuals, and DMX channel charts available for project engineering.

Engineering Assistance

Direct access to our lighting application engineers for Dialux lighting simulations, wiring topology planning, and system integration troubleshooting.

Warranty & Spares

Standard 3-year limited warranty backed by readily available modular spare parts (power supplies, LED boards, and control PCBs) to ensure rapid field serviceability.





FAQ



Q: How do you ensure color consistency across fixtures purchased in different production batches?

A: We utilize strict binning control with automated spectrometer sorting during SMT assembly. All LEDs are selected within a 3-step MacAdam ellipse tolerance, and batch calibration data is archived to match replenishment orders.

Q: Are these fixtures suitable for television studios requiring zero acoustic noise?

A: Yes. Our indoor theater and studio models utilize fanless, convection-cooled aluminum extrusion heatsinks, achieving 0 dB acoustic output during full-power operation.

Q: What IP rating options are available for outdoor architectural projects?

A: We offer IP65-rated models featuring waterproof cable glands, sealed die-cast enclosures, and tempered glass covers designed to withstand heavy rain, dust, and ambient temperature extremes from -30 degrees Celsius to 50 degrees Celsius.

Q: What is the typical lead time for standard bulk orders versus custom OEM projects?

A: Standard catalog orders ship within 10 to 15 business days. OEM/ODM projects requiring custom firmware, specialized housing colors, or unique optical configurations typically require 25 to 35 business days following sample prototype approval.



modular-1
Request a Quote & Engineering Resources

Need technical validation or project pricing for your upcoming installation?
Request a Sample / Commercial Quote: newstartkate@gmail.com
Download Photometric IES Files & CAD Drawings: newstartkate@gmail.com
Request a Free Dialux Simulation for Your Project: newstartkate@gmail.com
