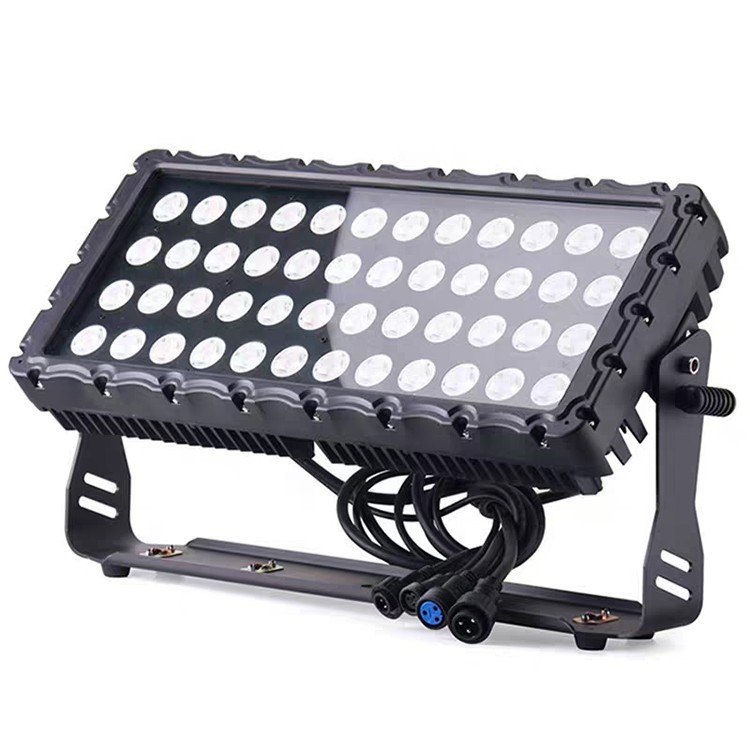

Outdoor 60x10W LED City Color Light

Guangdong New Start Lighting Co., Ltd. is one of the leading manufacturers and suppliers of outdoor 60x10w led city color light in China. With abundant experience, we warmly welcome you to wholesale customized lighting products at competitive price from our factory. Contact us for pricelist.

• High level protection standard: Meets IP65/IP66 level protection requirements, completely dust-proof (dust cannot enter) and resistant to strong water spray, wave impact, and even short immersion. The housing is made of aluminum die-cast one-piece and reinforced with sealing strips to effectively prevent water vapor and dust from entering the internal circuits.
• - Extreme environment adaptation: Operating environment temperature range -30 ° C to 45 ° C can withstand harsh weather conditions such as extreme cold, high temperature, high humidity, etc. The lamp body surface is coated with anti-corrosion coating, suitable for long-term outdoor exposure scenarios without additional protective measures.

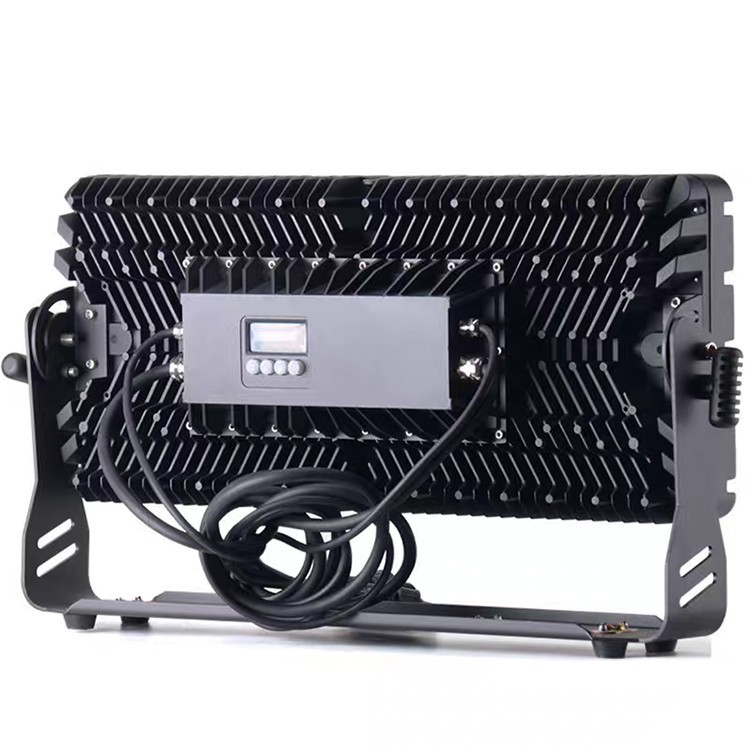

• - Heat dissipation and silent design: High thermal conductivity extruded aluminum profile heat dissipation body + air convection heat dissipation structure, fanless silent operation, lamp cup surface temperature controlled within 60 ° C to avoid performance degradation caused by overheating, built-in temperature sensor supports automatic power reduction protection in case of over-temperature.
• With an adjustable mounting bracket, it supports horizontal and vertical multi-angle installation, uses a snap-on structure with a waterproof socket for easy installation and disassembly, supports parallel expansion of multiple lamps, has high lamp placement efficiency, and is suitable for different installation scenarios such as high-altitude work and ground layout.
• - Safety and stability guarantee: Built-in EMC electromagnetic compatibility module effectively avoids radio frequency interference and light flicker, the driver power supply is externally installed in reverse, away from the high-temperature area of the lamp body, further extending service life, in compliance with IEC 60529 and GB/T 4208 national standards.

• Product Name: Outdoor 60x10W LED City Color Light
• Product model: NST-TGD60
• Light source: LED60 10W RGBW four-in-one lamp beads
• LED bead life: 80,000 hours
• Color: RGBW linear mixing
• Heat dissipation: Thickened cast aluminum heat dissipation, natural heat dissipation, thermal gel heat dissipation, durable.
• Stroboscopic: Independent electronic stroboscopic
• Exit lens Angle: 25° (15 ° -35 ° optional) Narrow light Angle for long projection, wide Angle for large area illumination.
• Dimming: 0-255, 0%-100% linear dimming

• 4 physical keys
• Control mode Protocol: Compatible with master-slave mode, voice-controlled mode, master-slave synchronization, DMX512 line control, (professional stage) RDM control protocol, single-machine mode, multi-light series for synchronous light show.

• Input voltage range: 110-240V to 50/60Hz
• Power: 600W
• Power socket: Body integrated waterproof power cable 1.5 meters 3 cores 2.5 flat
• Signal input/output: Waterproof 1.5m three-core card socket integrated signal cable

• Length: 646mm (25.43")
• Width: 255mm (10.03")
• Height: 330mm (12.99")
• Luminaire net weight: 14.8kg (32.56lbs)

• Length: 750mm (29.52"
• Width: 450mm (17.71")
• Height: 210mm (8.26")
• Gross weight: 18.5kg(40.7lbs)

• Maximum ambient temperature: 40°C
• Minimum operating temperature: -20°C
• Maximum surface temperature: 65°C

• ISO9001 Quality Management System certification
• CE certification

• Can be installed horizontally or vertically
• Universal operating position
• 2 fixed eagle-claw lamp hooks for 50mm lamp stands

• One electronic version of the instruction manual
• 2 Eagle claw lamp hooks
• 1 Safety rope
• DMX512 Cable line
• Power Cable line
