Product Overview


The New Start Lighting LED Follow Spot Light is engineered for professional stage productions, concert touring, and permanent venue installations requiring intense light output, precise optical framing, and faithful color rendering. Powered by a high-wattage single-chip LED engine coupled with precision-ground optical lenses, this fixture delivers a sharp, uniform beam over long throws while replacing traditional, high-heat discharge lamps. Built into an extruded aluminum and reinforced steel chassis, it meets the rigorous mechanical and thermal demands of road-ready rental inventories and architectural deployment.

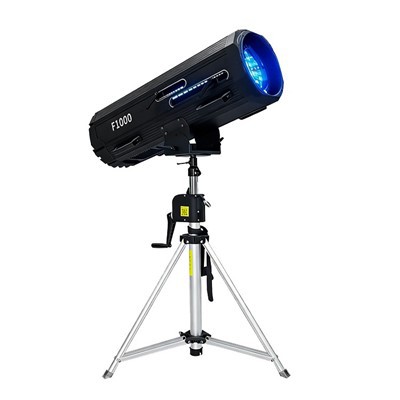

  • 1000W LED Follow Spot Light
    Model:NST-F1000Brand:New StartCountry of origin:ChinaThe 1000W LED Follow Spot Light is a high-precision spotlight device for professional stage use, featuring high color rendering mode to reproduce
  • 440W LED Follow Spot Light
    Model:NST-F440Brand:New StartCountry of origin:ChinaThe 440W LED Follow Spot Light is suitable for wedding, stage performance, film and television and other scenarios, with high brightness, flexible

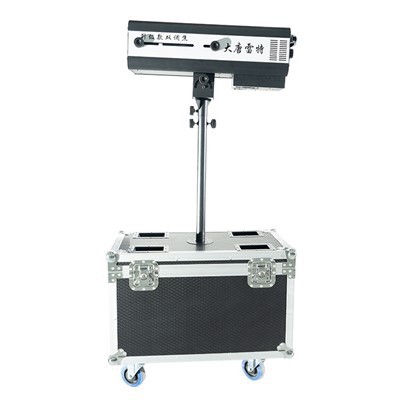

  • 330W LED Follow Spot Light
    Model:NST-F330Brand:New StartCountry of origin:ChinaThe 330W LED Follow Spot Light is a high-precision spotlight device for professional stage use, featuring high color rendering mode to reproduce

Key Features

High-Efficiency LED Engine

Utilizes an integrated multi-chip or high-density single-chip LED module, eliminating warm-up time and reducing HVAC loads in enclosed control booths.

Precision Optical System

Multi-element glass lens assembly delivers flat-field beam distribution with zero hot spots, clean edge definition, and manual mechanical zoom/focus control.

Integrated Color & Effects Module

Features a modular color temperature correction filter (3200K/5600K switchable or variable CTO), a dedicated color wheel, mechanical iris, and a variable frost filter.

Dual Control Flexibility

Supports standalone manual operation via rear-panel potentiometer sliders, as well as remote DMX512/RDM protocol integration for lighting console tracking.



Technical Specifications & Engineering Downloads



Technical Parameter

Specification Value

Light Source

300W / 400W / 600W High-Output LED Module (Configurable)

Color Temperature (CCT)

5600K Standard (Optional 3200K / Bi-color tunable)

Color Rendering Index (CRI)

CRI >= 92, TLCI >= 95

Beam Angle / Zoom

Manual Zoom, range from 8 degrees to 15 degrees (Application dependent)

Illuminance (Lux @ Distance)

e.g., 45,000 Lux @ 10m (600W variant at native zoom)

Color Wheel

5 Dichroic filters + Open (Customizable gel slots available)

Effects & Control

Mechanical Iris, Strobe (1-25 Hz), Manual Dimmer (0-100% linear)

Control Protocols

DMX512, RDM, Manual Control Panel with LCD Display

Input Voltage

AC 100-240V, 50/60Hz (PowerCON True1 input/output)

Cooling System

Copper heat pipes + low-noise PWM controlled cooling fans

Housing Material

Extruded aluminum profile with powder-coated steel plates

IP Rating

IP20 (Indoor touring and stage use)

Dimensions / Weight

850mm x 320mm x 350mm / Net Weight: 18.5 kg





Installation & Configuration
440w-led-follow-spot-light2026031703251830536

Mounting Setup

Supplied with a heavy-duty balanced yoke and standard spigot mount for secure attachment to heavy-duty lighting stands or suspension trusses.

1000w-led-follow-spot-light202603170307138a444

Optical Adjustment

Manual focus and zoom rings are fitted with high-torque dampening grease to prevent slippage during vibration-heavy concert environments.

1000w-led-follow-spot-light2026031703071251f3c

Power & Data Linking

Features Neutrik PowerCON True1 and 3-pin/5-pin XLR DMX feed-through connections for daisy-chaining power and control signals.

330w-led-follow-spot-light20260317033911667a9

Operational Calibration

On-board OLED interface allows technicians to adjust dimming curves, PWM refresh frequencies (flicker-free for 4K/8K camera broadcast), and DMX addressing.



Applications


Concert Tours & Live Music Venues

Long-throw tracking of lead performers across large arenas and outdoor festival stages.

Theatres & Performing Arts Centers

Precision key-lighting and spot-focusing from balcony control booths.

TV Broadcast & Studio Production

Flicker-free operation with high CRI/TLCI metrics for accurate skin tone reproduction under studio cameras.

Corporate Events & Auditoriums

Brand presentation spotlighting and high-impact keynote highlighting.



Customization & OEM/ODM

New Start Lighting operates direct manufacturing lines equipped for flexible B2B customization:




Optical Configuration

Tailor beam angle ranges and CCT specifications (e.g., warm white 3200K, cool white 5600K, or custom high-CRI modules) to regional market preferences.





Mechanical Branding

Laser-engraved company logos, customized powder-coat housing colors (standard matte black), and private-label user manuals.





Control Firmware

Custom DMX channel profiles, localized language menus, and proprietary software integration tailored for system integrators.





Quality Control



Every production batch undergoes strict quality assurance protocols prior to export:



Raw Material Inspection

Spectroradiometer testing for LED binning consistency (ensuring uniform CCT across all units) and optical glass purity verification.




Thermal Aging Test

24-hour full-power burn-in test in a 40 degrees C temperature-controlled aging room to screen for thermal runaway or solder-joint degradation.




Mechanical Stress Test

Vibration table testing simulating long-distance freight transit to verify internal structural stability.




Electrical Safety

Hi-Pot dielectric withstand testing (3000V) and earth continuity checks compliant with CE and RoHS directives.





Technical Support



440w-led-follow-spot-light2026031703251830536

Documentation Access

Complete photometric distribution files (.IES files), user manuals, wiring schematics, and DMX channel charts available upon request.

330w-led-follow-spot-light20260317033911667a9

Spare Parts Availability

Dedicated stock of modular sub-assemblies (power supply units, LED driver boards, optical lenses, and cooling fans) for rapid replacement.

1000w-led-follow-spot-light2026031703071251f3c

Engineering Assistance

Direct engineering consultation for custom integration projects and firmware troubleshooting.





Frequently Asked Questions



Q: What is the recommended throw distance for the 600W LED Follow Spot Light model?

A: The 600W model delivers optimal beam intensity and clean edge focus at throw distances ranging from 15 meters up to 45 meters, depending on ambient stage wash lighting conditions.

Q: Is the fixture completely flicker-free for high-speed broadcast cameras?

A: Yes. The adjustable PWM refresh frequency (ranging from 1.0 kHz to 25 kHz) ensures zero flicker interference under high-speed filming and 4K/8K broadcast setups.

Q: Can we request custom color filters instead of the standard dichroic wheel configuration?

A: Yes. Through our OEM service, the internal color wheel slots can be customized with specific dichroic glass filters matching your exact design requirements.

Q: What maintenance is required for the optical lens assembly?

A: Periodic cleaning of the front objective lens using optical-grade lint-free microfiber cloths and isopropyl alcohol is recommended. The sealed optical chamber minimizes internal dust accumulation.

Q: What certifications do your LED follow spot lights carry for export?

A: Our fixtures are manufactured under ISO 9001 quality management standards and carry CE, RoHS, and FCC certifications suitable for commercial import in North American and European markets.

Q: What is the standard lead time for bulk orders and OEM production?

A: Standard sample orders ship within 5 to 7 working days. Bulk production runs (100+ units) typically require 25 to 35 days, depending on specific customization requirements.



modular-1
Request a Quote

Ready to source professional-grade stage lighting for your rental inventory or project pipeline? Contact our engineering and sales team at newstartlighting.com to receive detailed wholesale pricing, photometric reports, or sample evaluation terms.
