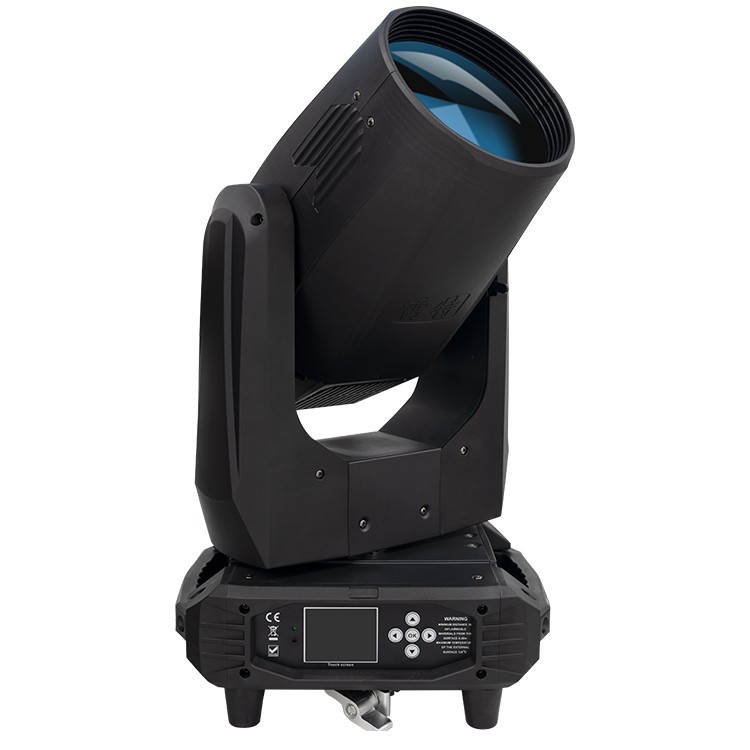

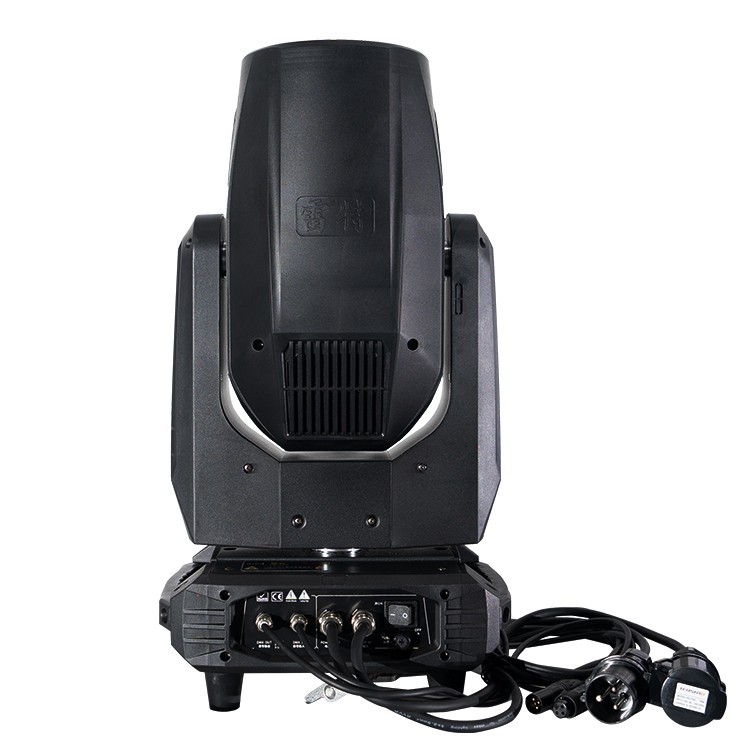

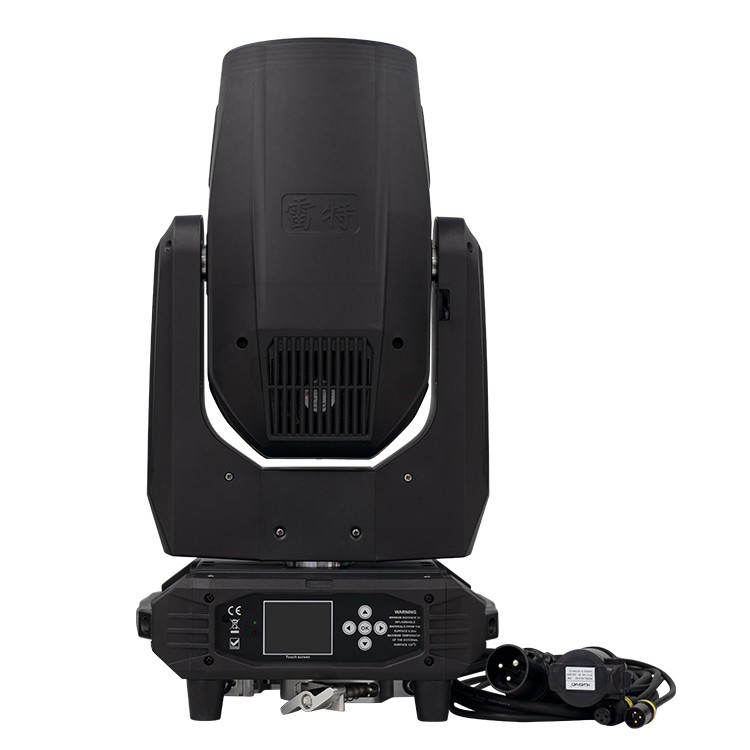

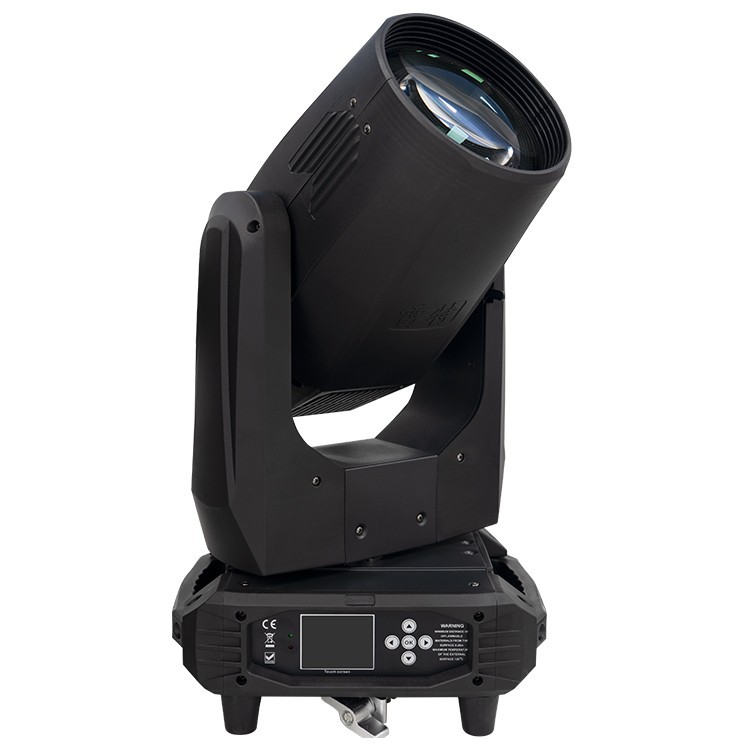

480W Moving Head Beam Light

Guangdong New Start Lighting Co., Ltd. is one of the leading manufacturers and suppliers of 480w moving head beam light in China. With abundant experience, we warmly welcome you to wholesale customized lighting products at competitive price from our factory. Contact us for pricelist.

• 480W Moving Head Beam Light uses imported long-life 4000-hour light source, Philips 420W bulb, Philips original light ballast, and has been verified by Philips' half-year temperature measurement and issued with a formal channel authorization letter. Compared with similar domestic bulbs, it has stronger stability, higher brightness, purer color temperature, longer life, and fuller beam. (800,000 LUX at a distance of 10 meters)

• Built-in exclusive high-end touch smart large motherboard, display size: 2.8 inches, large color screen display: time-saving, labor-saving, more worry-free, its motherboard chip uses American imported TI chip, comes with ten single-step scene programmable automatic operation, powerful function;
• It has the RDM function for remote adjustment of address codes and automatic calculation of address codes, saving time and labor. The motherboard is equipped with an intelligent temperature control system that can detect the temperature of the lamps in real time and provide intelligent heat dissipation and cooling. And intelligent troubleshooting, automatically detecting and recording fault information;
• Intelligent upside-down display effectively reduces cumbersome operations during the performance, automatically switches directions for quick operation; Smart screen brightness adjustment for more precise control when adjusting lights in dark scenes; Smart anti-interference function, touch XY-axis smart return to position without damaging the motor.

• The new design of the dual air nozzles features two separate blower cooling units on top of high-brightness bulbs and is equipped with gyroscope function with different angles and speeds. The gyroscope function allows the blower speed to increase as the temperature rises according to different speeds and when different temperatures are detected, increasing the speed for faster and more efficient cooling.

• Self-developed and designed private mold shell, more robust and durable, nylon flame-retardant ABS industrial-grade material, self-extinguishing when removed from fire, making the performance safer and effectively preventing performance accidents; The shell is thick and durable.

• Double prism design: 24 prisms +8 prisms, up to 32 prisms stacked
• Clear Gobo wheel design: 13 clear fixed Gobo wheel with prism stacking function
• The color temperature of the linear CTO is adjustable from 3200K to 6500K

• Electronic focusing, linear aperture (5%-100%), linear fogging (0-100%).
• Beam Angle 0°-1.8° linear focusing.
• 0-100% linear dimming, multiple stroboscopic modes up to 25Hz (including random and pulsed).

• 540° (horizontal) / 270° (vertical) extra-large range of motion, 16-bit precision scanning, quiet and stable operation with automatic error correction reset function.
• The body is equipped with a high-performance key display that supports RDM functionality.
• International standard 20CH/16CH channel DMX512 control is optional.

• Product Name: 480W Moving Head Beam Light
• Product model: NST-660

• Philips MSD Silver 420W
• Bulb life: 4000 hours

• Luminous flux: 800,000 LM
• Color temperature: 6,800K
• Output lens diameter: 165mm

• 4 touch keys
• Control panel: LCD touchable display
• Control protocol: DMX512, RDM, Art-Net
• DMX channel: Two international standard DMX channel modes 20CH/17CH
• Dimming: 0-100% linear dimming
• Stroboscopic: Up to 25 Hz, with support for random stroboscopic and pulsed stroboscopic
• Focusing: Electronic focusing, ultra-smooth
• Atomization: 0-100% linear atomization
• Magnification Angle: 0° -1.8° linear magnification

• X-axis rotation Angle: 540° (16-bit precision scan)
• Y-axis rotation Angle: 270° (16-bit precision scan)
• Fixed lock: Horizontal/vertical lock
• X-axis/Y-axis position out-of-step automatic correction

• Color wheel :10 colors + white light,half-color overlay is available
• Linear CTO3200K-6500K color temperature adjustable

• 13 fixed Gobos + white light

• 1 prism that can rotate independently 24
• 1 independently rotatable 8 prism
• Double prisms can be stacked for use

• Self-adaptive power supply
• Input voltage range: AC 100-240 V, 50/60 Hz
• Power: 600W
• Power socket: audio plug power connector input/output
• Signal input/output: Three-core XLR socket

• Length: 340 mm (13.39")
• Width: 270mm (10.62")
• Height: 610 mm (24.02")
• Net weight :18.75kg (41.25lbs)

• Length: 840 mm (33.07")
• Width: 490 mm (19.29")
• Height: 870 mm (34.25")
• Net weight: 28.7kg (63.14bs) (including 2 in 1 flight case)

• Maximum ambient temperature: 40°C
• Minimum operating temperature: -20°C
• Maximum surface temperature: 65°C

• ISO9001 Quality Management System certification
• CE certification

• Can be installed horizontally or vertically
• Universal operating position
• 2 fixed folding eagle-claw light hooks for 50mm light stands
• Safety rope connection hole

• Electronic Instruction Manual
• Power cable
• 2 fixed light hooks for 50mm light stands

• Rain cover: For outdoor use
• Signal cable: Three-core XLR signal cable
