Guangdong New Start Lighting Co., Ltd. is one of the leading manufacturers and suppliers of mini 380w moving head beam light in China. With abundant experience, we warmly welcome you to wholesale customized lighting products at competitive price from our factory. Contact us for pricelist.
Main Features
- High-brightness light source: With high-brightness original 371W Osram light source (with Osram certificate), luminous flux up to 580,000 lumens, color temperature stable at 6800K.
Rich Effects System
- Double prism design: 16 prisms +8 prisms, can stack 24 prisms
- Clear pattern disk design: 13 clear fixed pattern disks with prism stacking function
- 1 six-color plate for a colorful rainbow effect
Precision Optics And Control
Electronic focusing, linear aperture (5%-100%), linear fogging (0-100%).
Beam Angle 0°-2° linear focusing.
0-100% linear dimming, multiple stroboscopic modes up to 25Hz (including random and pulsed).
Smart Control And Motion
- 540° (horizontal) / 270° (vertical) extra-large range of motion, 16-bit precision scanning, quiet and stable operation with automatic error correction reset function.
- The body is equipped with a high-performance key display that supports RDM functionality.
- International standard 16-channel DMX512 control.
Technical Specifications

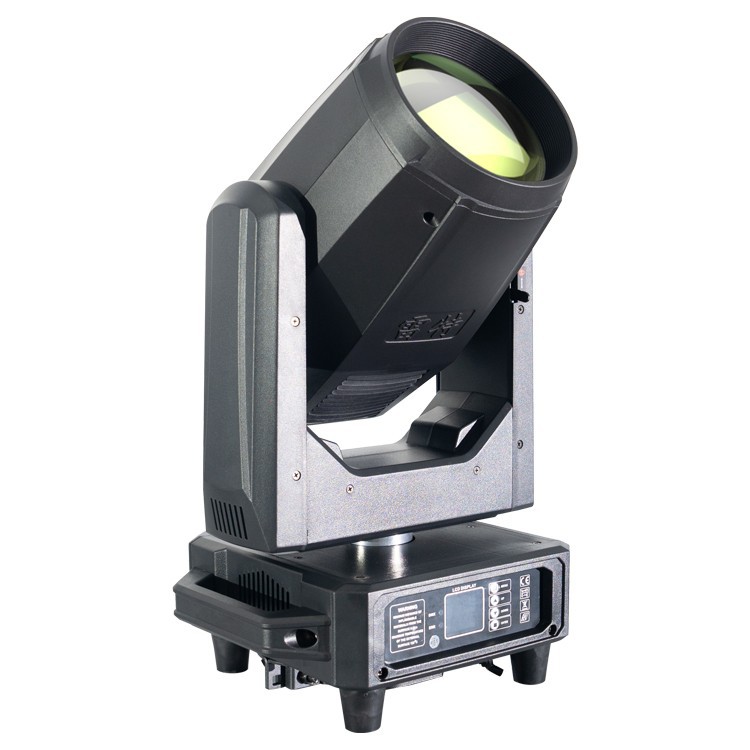

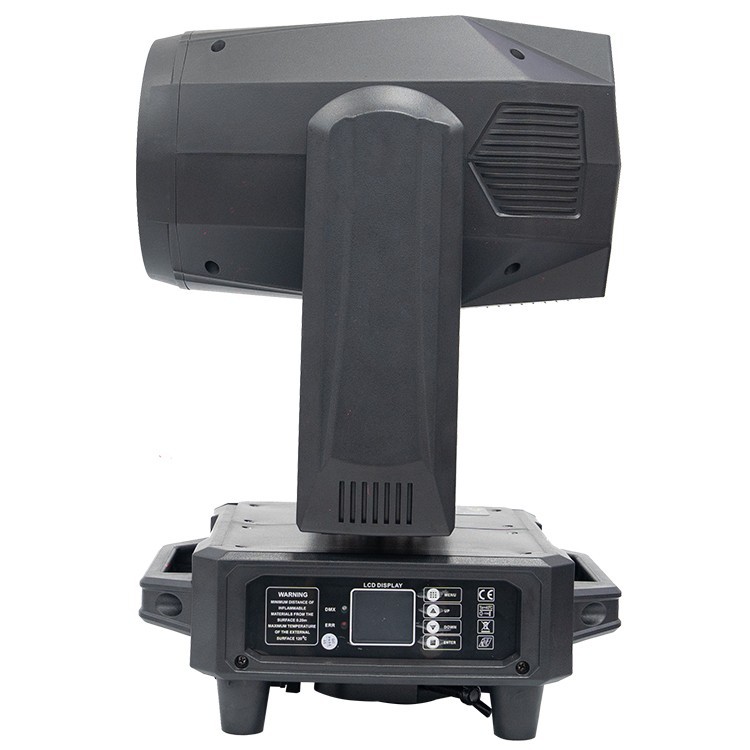

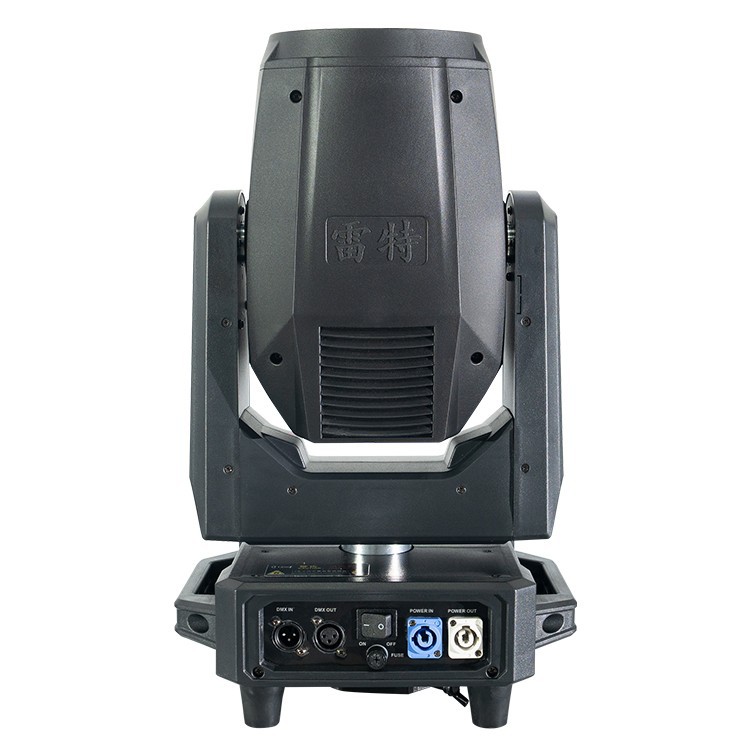

- Product Name: Mini 380W Moving Head Beam Light
- Product model: NST-590
Light Source
- Osram Sirius HRI 371W
- Bulb life: 3000 hours
Optical System
- Luminous flux: 580,000 LM
- Color temperature: 7700K
- Output lens diameter: 152mm
Controls And Programs
- 4 touch keys
- Control panel: LCD touchable display
- Control protocol: DMX512, RDM, Art-Net
- DMX channel: 16CH international standard DMX channel
- Dimming: 0-100% linear dimming
- Stroboscopic: Up to 25 Hz, with support for random stroboscopic and pulsed stroboscopic
- Focusing: Electronic focusing, ultra-smooth
- Atomization: 0-100% linear atomization
- Magnification angle: 0° -2° linear magnification
X-axis/Y-axis
- X-axis rotation Angle: 540° (16-bit precision scan)
- Y-axis rotation Angle: 270° (16-bit precision scan)
- Fixed lock: Horizontal/vertical lock
- X-axis/Y-axis position out-of-step automatic correction
Color Wheel
- Color wheel :10 colors + white light,half-color overlay is available
- Color plate :1 six-color plate (for a seven-color effect)
Gobo Wheel
- 13 fixed Gobos + white light
Prism
- 1 independently rotatable 16 prism
- 1 independently rotatable 8 prism
- Double prisms can be stacked for use
Electrical And Interfaces
- Self-adaptive power supply
- Input voltage range: AC 100-240 V, 50/60 Hz
- Power: 500W
- Power socket: audio plug power connector input/output
- Signal input/output: Three-core XLR socket

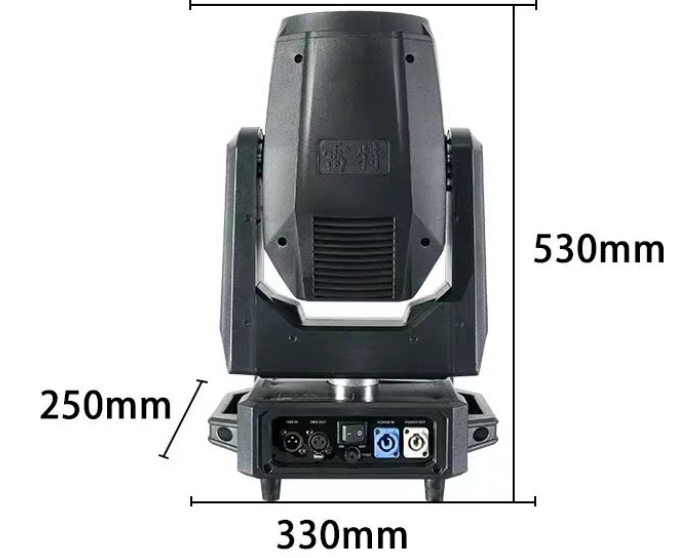

Light Size And Weight
- Length: 330 mm (12.99")
- Width: 250 mm (9.84")
- Height: 530 mm (27.16")
- Net weight :13.2kg (29.04lbs)
Working Environment
- Maximum ambient temperature: 40°C
- Minimum operating temperature: -20°C
- Maximum surface temperature: 65°C
Certification
- ISO9001 Quality Management System certification
- CE certification
Installation
- It can be installed horizontally or vertically
- Universal operating position
- 2 fixed folding light hooks for 50mm light stands
- Safety rope connection hole
Factory Configuration
- Electronic Instruction Manual
- Power cable
Optional Accessories
- Rain cover: For outdoor use
- Signal cable: Three-core XLR signal cable
Order & Shipment
Q1: What is the lead time for regular orders and customized orders?
A1: For regular stock products, the lead time is 3-5 working days. For OEM orders, the lead time is 15-20 working days after sample confirmation. For ODM orders, it takes 25-35 working days (depending on the R&D and production cycle). We will confirm the exact delivery time with you before placing the order.
Q2: What shipping methods do you offer?
A2: We cooperate with well-known international logistics companies such as DHL, FedEx, UPS, TNT for small-batch orders, which can deliver goods to your door within 6-10 days. For large-batch orders, we can arrange sea shipping, air shipping or railway shipping according to your needs, and provide door-to-door, port-to-port or warehouse-to-warehouse services. We will help you choose the most cost-effective shipping method based on your order quantity and delivery time requirements.
Q3: How do you package the products to avoid damage during shipping?
A3: We use high-quality packaging materials, including shockproof foam, cartons with reinforced edges, and flight cases for large or fragile products. Each product is individually packaged and tested for impact resistance before shipment. We also purchase transportation insurance for all orders to ensure that you can get compensation in case of product damage during shipping.
