Outdoor 120x10W LED City Color Light

Guangdong New Start Lighting Co., Ltd. is one of the leading manufacturers and suppliers of outdoor 120x10w led city color light in China. With abundant experience, we warmly welcome you to wholesale customized lighting products at competitive price from our factory. Contact us for pricelist.

1. High-brightness full-color illumination

• With 120 10W RGBW four-in-one leds, it can blend over 16 million colors, supporting gradient, jump, stroboscopic and other dynamic effects.
• With a total power of approximately 1200W and an illumination distance of up to 15-50 meters, it is suitable for large-scale coloring of building facades, landscapes, stages and other scenes.

2 Outdoor waterproof and durable

• With an IP66 protection rating, it can withstand rain, dust and other outdoor environments and is suitable for long-term outdoor installation.
• Over 50,000 hours of LED life, aluminum alloy housing + fin heat dissipation, silent and durable.

3 Flexible control mode

• Supports DMX512, voice control, auto-drive, master-slave synchronization and other control modes, can operate automatically on a single light, or program multiple lights in linkage.
• Supports 0-100% linear dimming, 1-20 times/second stroboscopic, and beam Angle options (15°/25°/45°, etc.).

• Product Name: Outdoor 120x10W LED City Color Light
• Product model: NST-TGD12010
• Light source and optical systems
• Light source: 120x10W 4 in 1 RGBW LED light source
• Light source lifespan: 80,000 hours

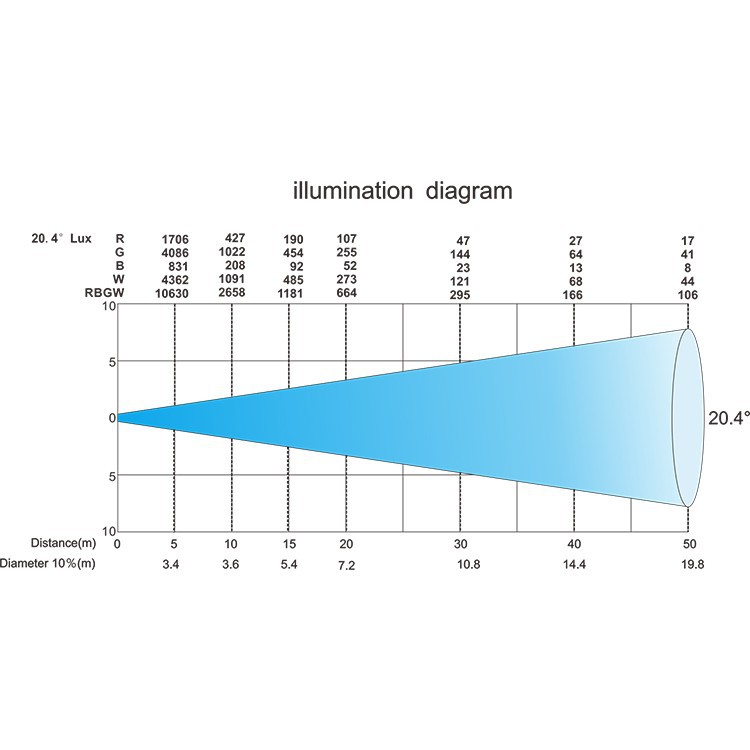

• Beam Angle: 20.4°, spot Angle: 37.5°
• Lens Angle: 20° (standard), optional 40°, 60°
• Vertical tilt Angle: ±45°
• White light color temperature: 6500K
• White light color rendering index: RA≥70
• Light source flux: 35,704 Lm
• Illuminance: 10,630 Lux@ 5 m

• Mixing system: Uniform RGBW mixing system
• Color macros: Static effects Macros and dynamic effects macros features
• Dimming: 0-100% linear perfect dimming system with four dimming curves
• Stroboscopic: 1-25Hz electronic stroboscopic and random stroboscopic
• The upper and lower layers are superimposed, each layer can be controlled independently

• Control protocols: Standard DMX512 protocol, RDM protocol
• Data connection: Three-core or five-core signal input/output
• Chassis construction: Die-cast aluminum chassis. A variety of colors, including white and black, are available as needed

• Input voltage: AC100-240V 50/60Hz
• Maximum power: 1200W
• Power factor: 0.99
• Maximum luminaire current: 8.13A/100V; 3.56 A / 220 v
• Power socket: Waterproof 16A power connector input/output or straight line
• Signal input/output: Three-pin or five-pin XLR socket, RJ45 interface

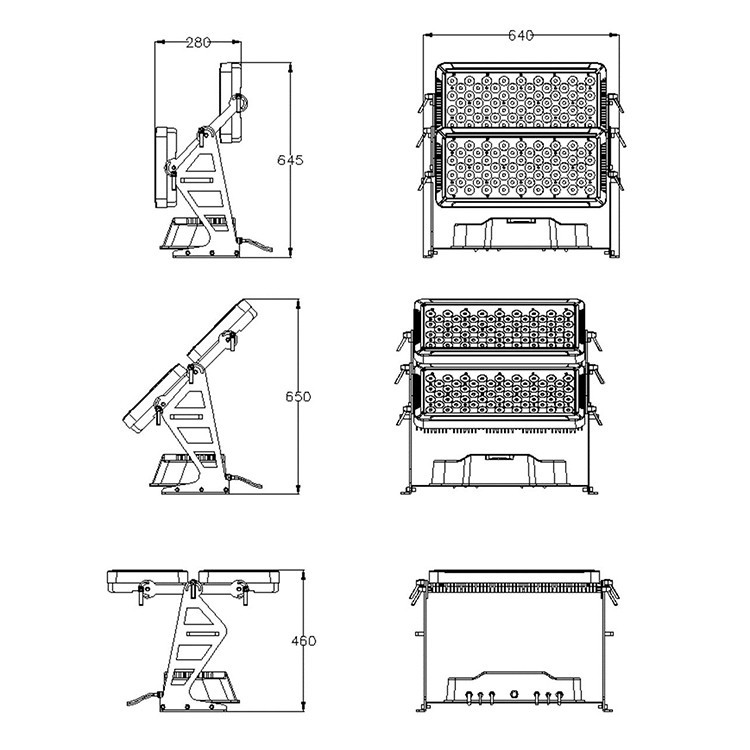

• Length: 640 mm (25.19")
• Width: 280 mm (11.02")
• Height: 645mm (25.39")
• Net weight: 31 kg (68.2bs)

• Length: 780 mm (30.70")
• Width: 490 mm (19.29")
• Height: 755mm (29.72")
• Net weight: 61kg (134.2bs) (including 1-in-1 standard airbox)

• Protection grade: IP66
• Operating environment: -20 ° C to 45 ° C
• Maximum surface temperature of the lamp body: 65 ° C

• ISO9001 Quality Management System certification
• CE certification

• Can be placed horizontally
• Universal operating position

• Electronic Instruction Manual
