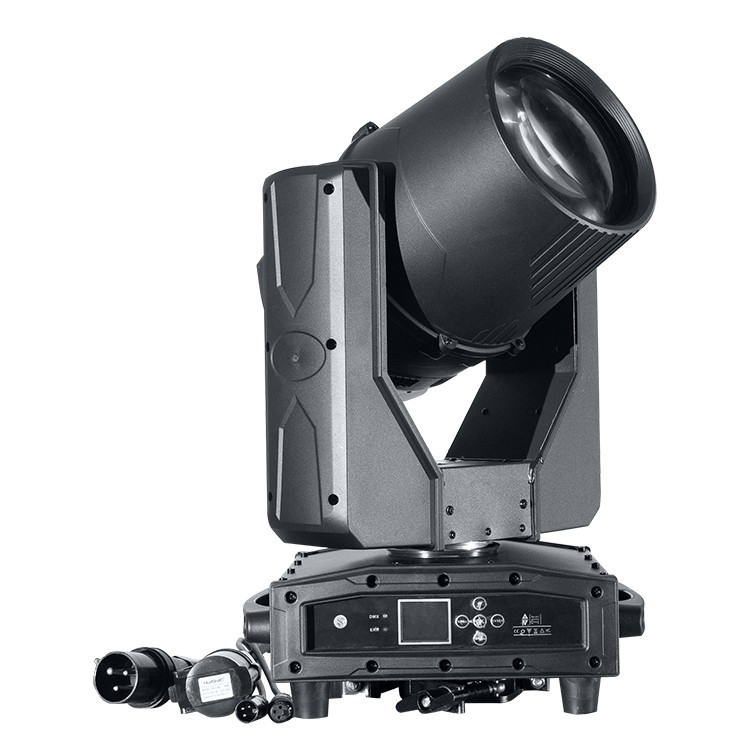

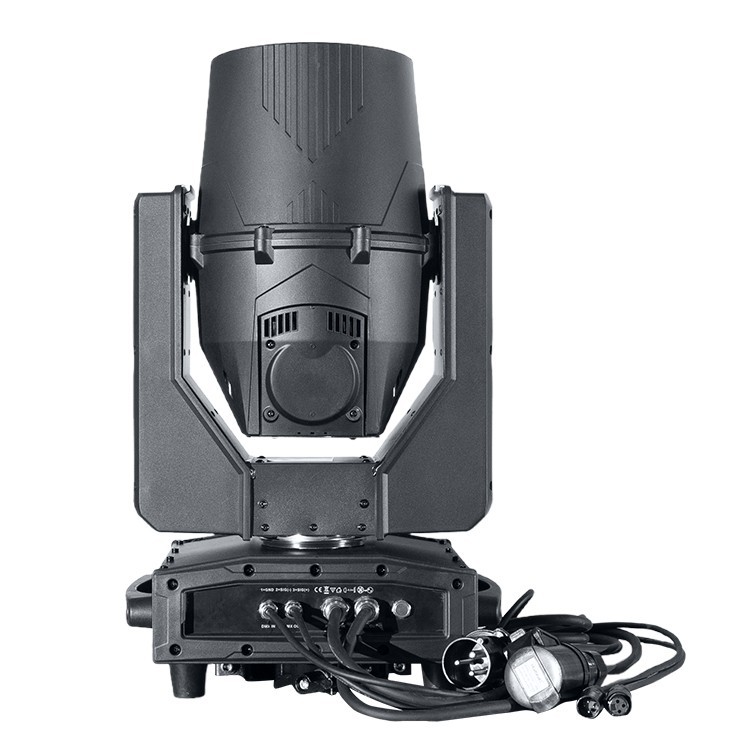

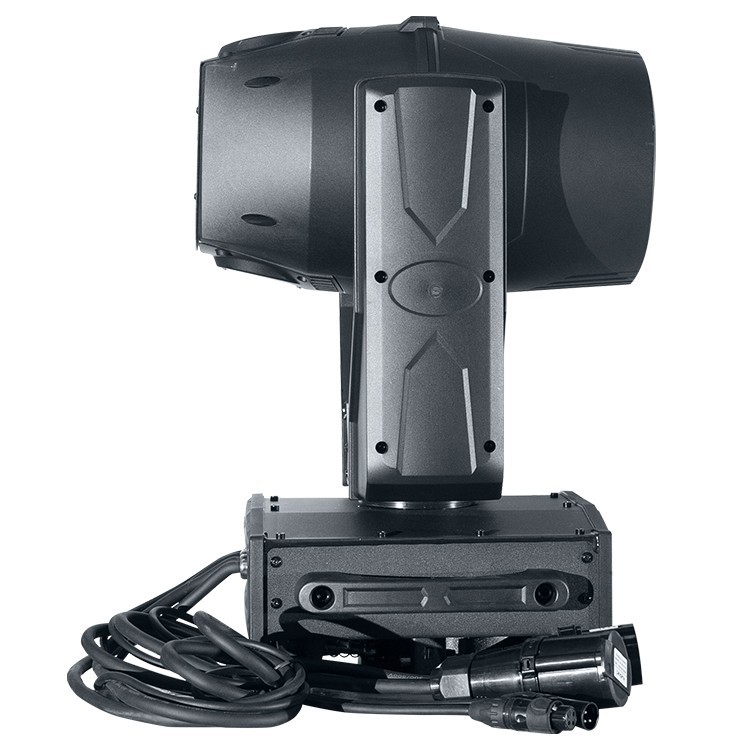

Outdoor Moving Head Beam 460 Light

Guangdong New Start Lighting Co., Ltd. is one of the leading manufacturers and suppliers of outdoor moving head beam 460 light in China. With abundant experience, we warmly welcome you to wholesale customized lighting products at competitive price from our factory. Contact us for pricelist.

• Outdoor Moving Head Beam 460 Light uses original long-life Osram 310W bulbs, Osram original illuminators, has passed the temperature test for half a year and issued a formal channel authorization letter. Compared with similar domestic bulbs, it has stronger stability, higher brightness, purer color temperature, longer life, and fuller beam. (520,000 LUX at a distance of 10 meters)

• Built-in exclusive high-end touch smart large motherboard, display size: 2.8 inches, large color screen display: time-saving, labor-saving, more worry-free, its motherboard chip uses American imported TI chip, comes with ten single-step scene programmable automatic operation, powerful function;
• It has the RDM function for remote adjustment of address codes and automatic calculation of address codes, saving time and labor. The motherboard is equipped with an intelligent temperature control system that can detect the temperature of the lamps in real time and provide intelligent heat dissipation and cooling. And intelligent troubleshooting, automatically detecting and recording fault information;
• Intelligent upside-down display effectively reduces cumbersome operations during the performance, automatically switches directions for quick operation; Smart screen brightness adjustment for more precise control when adjusting lights in dark scenes; Smart anti-interference function, touch XY-axis smart return to position without damaging the motor.

• Self-developed and designed private mold shell, more robust and durable, nylon flame-retardant ABS industrial-grade material, self-extinguishing when removed from fire, making the performance safer and effectively preventing performance accidents; The shell is thick and durable.

• Double prism design: 24 prisms +8 prisms, up to 32 prisms stacked
• Clear pattern disk design: 17 clear fixed Gobo wheel with prism stacking function

• Electronic focusing, linear aperture (5%-100%), linear fogging (0-100%).
• Linear focusing of the beam angle from 0° to 2°.
• 0-100% linear dimming, multiple stroboscopic modes up to 25Hz (including random and pulsed).

• 540° (horizontal) / 270° (vertical) extra-large range of motion, 16-bit precision scanning, quiet and stable operation with automatic error correction reset function.
• The body is equipped with a high-performance key display that supports RDM functionality.
• International standard 20CH/ CH16-channel DMX512 control is optional.

• Product Name: Outdoor Moving Head Beam 460 Light
• Product model: NST-F460

• Osram Sirius HRI 310W
• Bulb life: 3000 hours

• Luminous flux: 520,000 LM
• Color temperature: 6,800K
• Output lens diameter: 160mm

• 4 touch keys
• Control Panel: LCD touchable display
• Control protocol: DMX512, RDM, Art-Net
• DMX channels: Two international standard DMX channel modes, 20CH and 16CH
• Dimming: 0-100% linear dimming
• Stroboscopic: Up to 25 Hz, with support for random stroboscopic and pulsed stroboscopic
• Focusing: Electronic focusing, ultra-smooth
• Atomization: 0-100% linear atomization
• Magnification Angle: 0° -2° linear magnification

• X-axis rotation Angle: 540° (16-bit precision scan)
• Y-axis rotation Angle: 270° (16-bit precision scan)
• Fixed lock: Horizontal/vertical lock
• X-axis/Y-axis position out-of-step automatic correction

• Color :10 color wheels + white light,half-color overlay is available
• Linear CTO 3200K-6500K color temperature adjustable

• 17 fixed Gobos + white light

• 1 prism that can rotate independently 24
• One independently rotatable 8-prism
• Double prisms can be stacked for use

• Self-adaptive power supply
• Input voltage range: AC 100-240 V, 50/60 Hz
• Power: 400W
• Power socket: audio plug power connector input/output
• Signal input/output: Three-core XLR socket

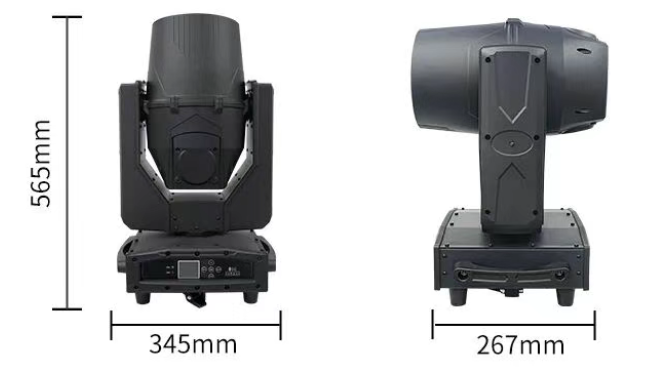

• Length: 800 mm (31.50")
• Width: 430 mm (16.93")
• Height: 780 mm (30.70")
• Net weight: 27.5kg (60.5bs) (including 2 in 1 flight case)

• Maximum ambient temperature: 40°C
• Minimum operating temperature: -20°C
• Maximum surface temperature: 65°C

• ISO9001 Quality Management System certification
• CE certification

• Can be installed horizontally or vertically
• Universal operating position
• 2 fixed folding eagle-claw light hooks for 50mm light stands
• Safety rope connection hole

• Electronic Instruction Manual
• "Power cable
• 2 fixed light hooks for 50mm light stands

• Signal cable: Three-core XLR signal cable
