Product Overview


The Newstart Lighting Moving Head Series provides high-intensity optical output, precision mechanical tracking, and thermal stability for professional stage and event deployment. Available in Spot, Wash, and Hybrid configurations, these fixtures integrate high-efficiency LED engine arrays with multi-element glass optics to maintain uniform beam distribution, sharp gobo projection, and saturated color mixing. Housed in a die-cast aluminum chassis with a modular internal structure, each unit undergoes factory stress testing for pan/tilt endurance, thermal equilibrium, and electrical safety before dispatch.




  • Beam 330W Moving Head
    Model:NST-330Brand:New StartCountry of origin:ChinaThe Beam 330W Moving Head is a high-brightness, sharp beam light. It is equipped with an efficient 300W light source, and the dazzling white light
  • Super 380W Moving Head Beam Light
    Model:NST-380SBrand:New StartCountry of origin:ChinaSuper 380W Moving Head Beam Light is a high-brightness, sharp beam light with a high-brightness original 371W Osram light source (with Osram
  • Mini 380W Moving Head Beam Light
    Model:NST-590Brand:New StartCountry of origin:ChinaMini 380W Moving Head Beam Light is a miniaturized high-brightness professional stage light, and its core features can be summarized as compact body
  • 380W Moving Head Beam Light
    Model:NST-450Brand:New StartCountry of origin:China380W Moving Head Beam Light focuses on miniaturization and high brightness, with the core advantage of compact body + strong beam + multi-effect in
  • 480W Moving Head Beam Light
    Model:NST-660Brand:New StartCountry of origin:China480W Moving Head Beam Light is a beam moving head light designed for outdoor performances with a high brightness effect. It is equipped with an
  • Outdoor Moving Head Beam 460 Light
    Model:NST-FS460Brand:New StartCountry of origin:ChinaOutdoor Moving Head Beam 460 Light is a beam light designed for outdoor performances and cultural tourism markets, outdoor large-scale
  • 330 LED Spot CMY Moving Head Light
    Model:NST-330BSWBrand:New StartCountry of origin:China330 LED Spot CMY Moving Head Light is a professional moving head light that combines beam, spot and wash 3 in1, with sharp light sensation, soft
  • 400W Moving Head BSW CTO Light
    Model:NST-400BSWBrand:New StartCountry of origin:China400W Moving Head BSW CTO Light is a deep fusion of beam, spot and wash functions, with sharp light perception, clear imaging, and soft light
  • LED 400W Moving Head BSW CTO CMY Light
    Model:NST-600BSWBrand:New StartCountry of origin:ChinaLED 400W Moving Head BSW CTO CMY Light is a LED moving head light that combines beam, spot and wash in one, perfectly achieving a three-in-one

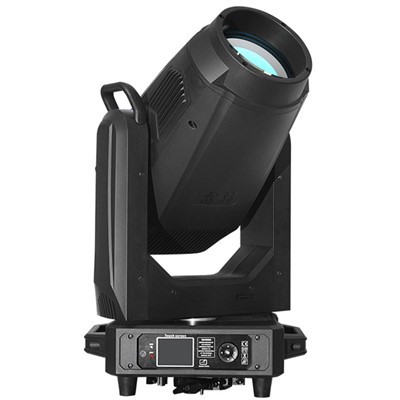

  • LED 1000W BSWP Profile Frame Moving Head Light
    Model:NST-1000BSWPBrand:New StartCountry of origin:ChinaLED 1000W BSWP Profile Frame Moving Head Light is an integrates high brightness and multiple functions LED profile light. It features an
  • LED 1200W BSWP Profile Frame Moving Head Light
    Model:NST-1200BSWPBrand:New StartCountry of origin:ChinaLED 1200W BSWP Profile Frame Moving Head Light is a flagship LED moving head profile light, a high-performance professional lighting fixture

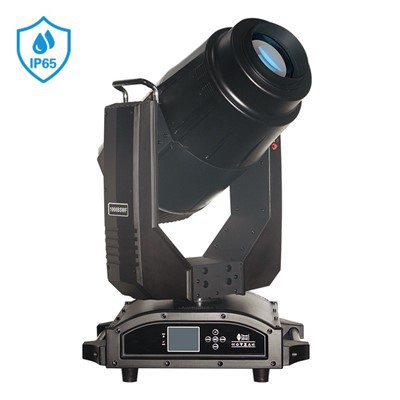

  • Outdoor LED 1000W Profile Frame Moving Head Light
    Model:NST-330Brand:New StartCountry of origin:ChinaOutdoor LED 1000W Profile Frame Moving Head Light is a cost-effective professional lighting fixture designed for outdoor cultural tourism projects,
First 12 Last

Key Features

High-Efficiency Optical Engine

Integrated high-lumen LED chips coupled with multi-element glass optics, delivering high center-beam candela and controlled chromatic aberration across the zoom spectrum.

Closed-Loop Motion Control

Driven by 3-phase micro-stepping motors with magnetic encoder feedback, ensuring 540 degrees pan and 270 degrees tilt movement with automatic positional correction under external physical displacement.

Thermal Management Architecture

Incorporates copper heat pipes, temperature-regulated low-noise cooling fans, and extruded aluminum heat sinks to maintain LED junction temperatures below critical degradation thresholds.

Modular Internal Layout

Compartmentalized structural design separates the optical train, power supply unit (PSU), and main control board, minimizing field maintenance downtime.



Technical Specifications



Parameter

Specification Details

Model Designation

NS-MH400-S (Spot Configuration)

Light Source

400W High-Output White LED Engine

Color Temperature (CCT)

7500K (Standard) / CRI >= 80 (Optional CRI >= 90 available)

LED Lifespan

20,000 Hours (At 70% lumen maintenance threshold)

Zoom Range

6 degrees to 42 degrees Motorized Linear Zoom

Pan / Tilt Movement

Pan: 540 degrees (8/16 bit) / Tilt: 270 degrees (8/16 bit) with absolute encoder feedback

Color Wheel

1 color wheel with 7 dichroic filters + open, bidirectional rainbow effect

Gobo Wheels

1 Rotating Gobo Wheel (7 interchangeable glass gobos + open); 1 Static Gobo Wheel (8 metal gobos + open)

Prism & Effects

3-facet circular prism (bi-directional, variable speed); dual frost filters for wash integration

Dimmer / Shutter

0-100% linear electronic dimming; electronic strobe (1-25 Hz)

Control Channels

22 / 26 / 34 DMX channels selectable

Control Protocols

DMX512-A, RDM, Art-Net, sACN

Input Voltage

AC 100-240V, 50/60Hz

Max Power Consumption

520W

Housing Material

Flame-retardant engineering plastic (V0 grade chassis) + die-cast aluminum frame

IP Rating

IP20 (Indoor touring and stage deployment)

Dimensions (L x W x H)

380 x 260 x 610 mm

Net Weight

21.5 kg

Certifications

CE, RoHS, ETL (Conforming to UL standards), FCC





Installation & Configuration

Rigging & Hardware

Mounting Interfaces: Secured via two quarter-turn fast-lock Omega brackets supporting M10/M12 clamps for truss hanging or floor mounting.
Secondary Safety: Dedicated forged steel anchor point integrated into the base housing, rated for a minimum 50 kg dynamic drop test.

Addressing & Diagnostics

User Interface: 2.4-inch TFT color display with an internal rechargeable battery backup, permitting offline parameter configuration and error log review without mains power.
RDM Telemetry: Remote fixture addressing, DMX personality switching, and real-time sensor monitoring (internal ambient temperature, fan RPM, error reporting) via console link.



Applications



led-400w-moving-head-bsw-cto-cmy-light202603160114439d683

Touring Concerts & Music Festivals

High-intensity beam and spot output designed to cut through high-ambient LED wall backdrops and atmospheric haze.

super-380w-moving-head-beam-light202603131049099a066

Broadcast TV Studios

Flicker-free high-frequency PWM dimming exceeding 25 kHz, paired with high-CRI LED engine options to maintain accurate skin tones under studio cameras.

mini-380w-moving-head-beam-light2026031311212507902

Theaters & Performing Arts

Controlled acoustic output profiles suitable for noise-sensitive auditoriums.
Clubs & Permanent Installations
Continuous high-duty-cycle operation supported by industrial-grade mechanical drive trains.



Customization & OEM/ODM Services


Engineering modifications and private-label manufacturing options available for volume distributors and system integrators:

Optical Customization

Specific LED color temperature sourcing (e.g., warm white 3200K or specialized spectral outputs).

Firmware Adaptation

Custom DMX channel mapping, proprietary RDM system IDs, and localized UI translation.

Enclosure Branding

Silk-screened client logos, custom RAL color powder coating, and tailored flight case packaging.

Custom Gobos

Laser-etched glass gobos manufactured from client-supplied vector data (.ai/.dwg).



Quality Control Protocols

Factory production adheres to a multi-stage verification framework:



Incoming Component Screening
LED chips are sorted and binned for luminous flux and chromaticity consistency. Power supplies undergo 100% full-load burn-in testing for 4 hours.



Optical Calibration
Assembled optical trains are evaluated via goniophotometer to verify beam uniformity, field angle, and lux distribution parameters.



Mechanical Endurance Testing
Automated test rigs cycle pan and tilt mechanisms continuously for 24 hours under electrical power to detect mechanical binding or encoder drift.



Environmental Stress Testing
Sample lots undergo thermal cycling (-10 degrees C to 50 degrees C) and mechanical vibration tests.



Traceability
Each fixture carries a permanent barcode linked to component batch records, assembly operators, and individual QC test metrics.

beam-330w-moving-head20260310100758b123b



Technical Support & Logistics





Technical Support & Logistics

Complete IES photometric data files, user manuals, DMX channel profiles, and CAD drawings available for download or project submittal integration.



Spare Parts Inventory

Critical replacement modules (power supplies, display boards, stepping motors, cooling assemblies) stocked for regional dispatch within 48 hours.



Application Engineering

Direct access to technical support for DMX network layout planning, fixture scheduling, and remote troubleshooting.







Frequently Asked Questions



Q: What is the operational noise level in dB, and is it suitable for quiet theatrical environments?

A: The unit uses temperature-regulated smart fan curves. Under standard maximum output, noise output registers at approximately 42 dB at 1 meter. Engaging "Theater Quiet Mode" via the DMX menu limits fan speeds, reducing acoustic emission below 34 dB for acoustic-sensitive venues.

Q: How do you ensure color uniformity across fixtures purchased in separate production batches?

A: We enforce strict LED binning protocols, restricting chips within a 3-step MacAdam ellipse. Chromaticity coordinates are calibrated during assembly to ensure color temperature variance remains within plus/minus 150K across different production runs.

Q: What is the standard lead time for stock orders versus custom OEM/ODM projects?

A: Standard stock inventory ships within 7 to 10 business days for orders under 50 units. OEM/ODM orders involving custom firmware, specialized housing colors, or custom glass gobos require 25 to 35 business days following sample sign-off and deposit receipt.

Q: What warranty coverage and electrical certifications apply to this series?

A: Fixtures carry a 2-year factory warranty covering non-consumable mechanical and electronic assemblies. Units hold official CE, RoHS, ETL (conforming to UL standards), and FCC certifications, with complete documentation available for regulatory compliance submissions.



modular-1
Request a Quote / Technical Inquiry

To obtain project pricing, freight calculations, photometric IES files, or to discuss custom OEM/ODM specifications with our engineering team, contact us directly:
Direct Technical & Sales Inquiries: newstartkate@gmail.com
Project Submittal Portal: [Link to Inquiry Form]

Guangdong New Start Lighting Co., Ltd. is one of the most professional moving head light manufacturers and suppliers in China. Welcome to wholesale durable moving head light in stock here and get quotation from our factory. All customized products are with high quality and competitive price.
