Guangdong New Start Lighting Co., Ltd. is one of the leading manufacturers and suppliers of beam 330w moving head in China. With abundant experience, we warmly welcome you to wholesale customized lighting products at competitive price from our factory. Contact us for pricelist.
Main Features
Rich Effects System
- Double prism design: 16 prisms +8 prisms, can stack 24 prisms
- Clear pattern disk design: 13 clear fixed pattern disks with prism stacking function
- 1 six-color plate for a colorful rainbow effect
Precision Optics And Control
- Electronic focusing, linear aperture (5%-100%), linear fogging (0-100%).
- Beam Angle 0°-2° linear focusing.
- 0-100% linear dimming, multiple stroboscopic modes up to 25Hz (including random and pulsed).
Smart Control And Motion
- 540° (horizontal) / 270° (vertical) extra-large range of motion, 16-bit precision scanning, quiet and stable operation with automatic error correction reset function.
- The body is equipped with a high-performance key display that supports RDM functionality.
- International standard 16-channel DMX512 control.
Technical Specifications

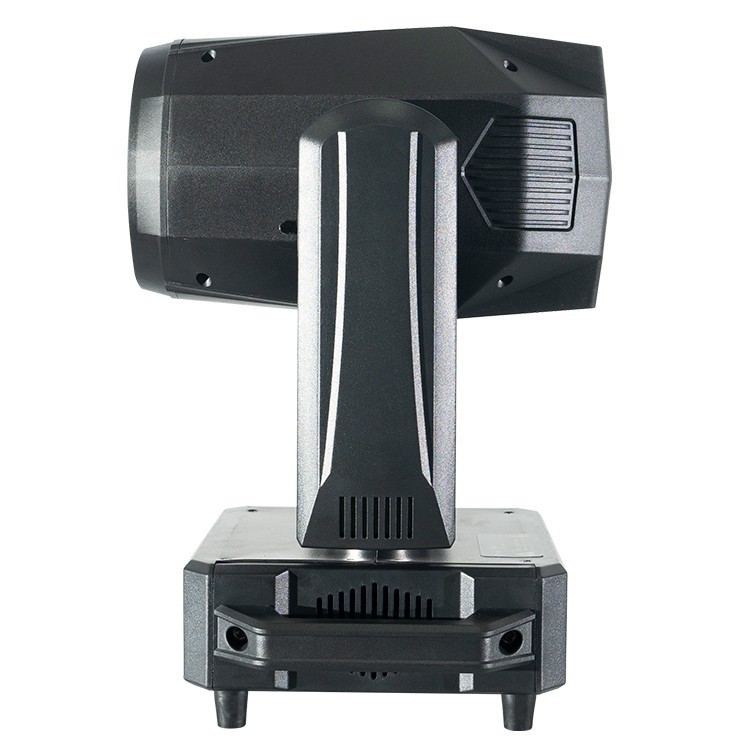

- Product Name: Beam 330W Moving Head
- Product model: NST-330
- Light source: 300W bulb
- Bulb life: 2000 hours
Optical System
- Color temperature: 6,800K
- Output lens diameter: 152mm
Controls And Programs
- 4 touch keys

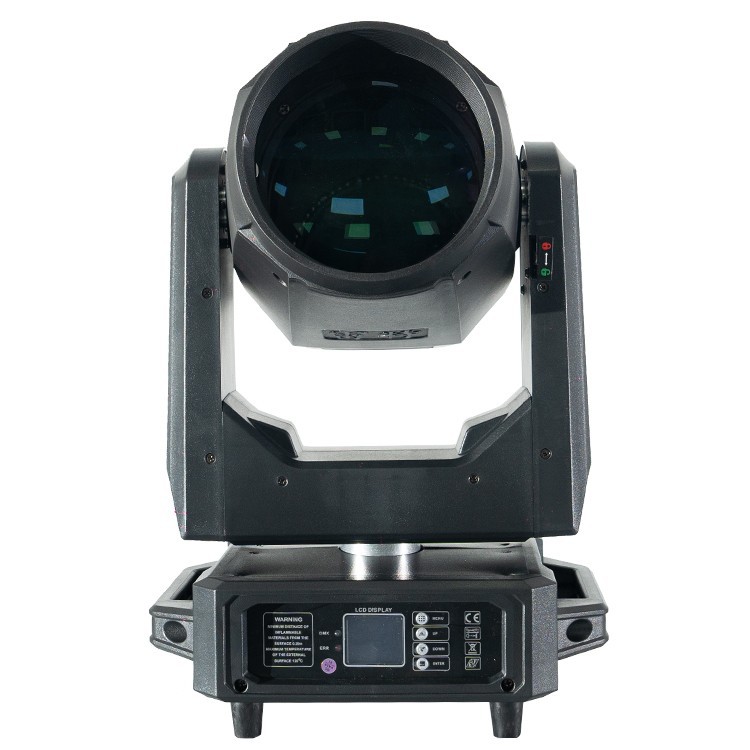

- Control panel: LCD touchable display
- Control protocol: DMX512, RDM, Art-Net
- DMX channels: 16 international standard DMX channels
- Dimming: 0-100% linear dimming
- Stroboscopic: Up to 25 Hz, with support for random stroboscopic and pulsed stroboscopic
- Focusing: Electronic focusing, ultra-smooth
- Atomization: 0-100% linear atomization
- Magnification Angle: 0° -2° linear magnification
Color Wheel
Color wheel 1 :10 colors + white light,half-color overlay allowed
Color wheel 2 :1 six-color chip (for a seven-color effect)
Gobo Wheel
13 fixed gobos + white light
X-axis/Y-axis
- X-axis rotation Angle: 540° (16-bit precision scanning)
- Y-axis rotation Angle: 270° (16-bit precision scan)
- Fixed lock: Horizontal/vertical lock
- X-axis/Y-axis position out-of-step automatic correction
Prism
- 1 independently rotatable 16 prism
- 1 independently rotatable 8 prism
- Double prisms can be stacked for use

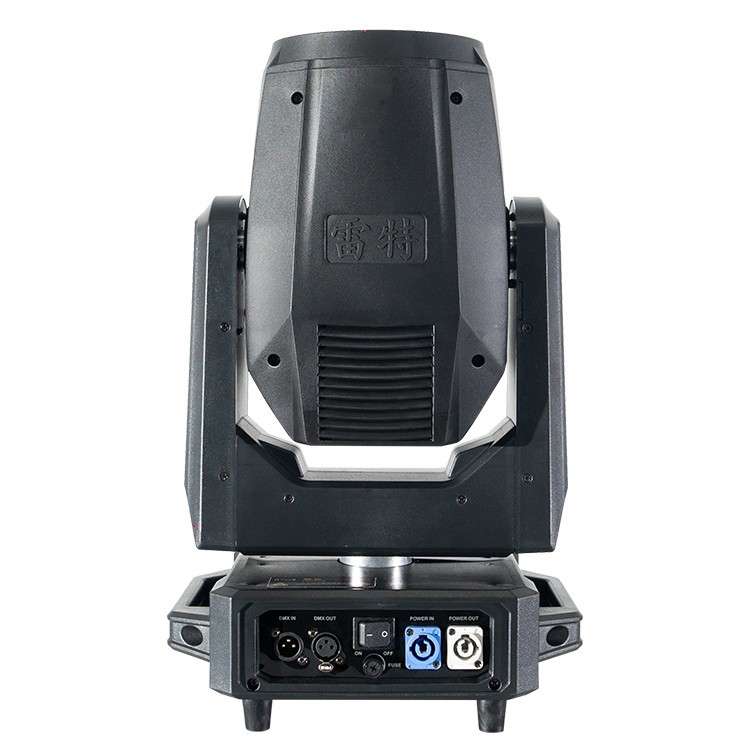

Electrical And Interfaces
- Self-adaptive power supply
- Input voltage range: AC 100-240 V, 50/60 Hz
- Power: 350W
- Power socket: Audio plug power connector input/output
- Signal input/output: Three-core XLR socket
Light Size And Weight
- Length: 330 mm (12.99")
- Width: 250 mm (9.84")
- Height: 530 mm (27.16")
- Net weight :13.2kg (29.04lbs)
Working Environment
- Maximum ambient temperature: 40°C
- Minimum operating temperature: -20°C
- Maximum surface temperature: 65°C
Installation
- Can be installed horizontally or vertically
- Universal operating position
- Two fixed folding lamp hooks suitable for 50mm lamp stands
- Safety rope connection hole
Factory Configuration
- Electronic Instruction Manual
- Power cable
- 2 fixed lamp hooks for 50mm lamp stands
Optional Accessories
- Rain cover: For outdoor use
- Signal cable: Three-core signal cable
Client Projects
ABBA Live Concert (Sri Lanka)
We teamed up to light this Arrival from Sweden (ABBA tribute) show, leaning into our Beam 330W Moving Heads to anchor the retro-glam visual vibe. Mounted in the overhead stage trussing, these fixtures cranked out crisp, far-reaching beams-cutting through the venue's energy for punchy bursts on uptempo tracks, then softening into warm washes for the set's ballads.
Our on-site crew synced every flicker and fade to the performance: the 330W beams locked into the upbeat swing of Dancing Queen, then shifted to lush, layered tones for The Winner Takes It All-turning the stage into a backdrop that matched ABBA's iconic sound. The production team loved how the rig held up through the full set, and the packed crowd? They danced under those beams all night long.
Product Quality & Certification
How do you ensure the quality of your stage lighting products?
A1: Quality control is a top priority for us. We implement strict quality management systems throughout the entire production process. This includes incoming inspection of raw materials and components, in-process quality checks during manufacturing, and 100% final testing before shipment (such as light intensity testing, durability testing, voltage stability testing and safety testing). We only use high-quality components from trusted suppliers to ensure the performance and lifespan of our products.

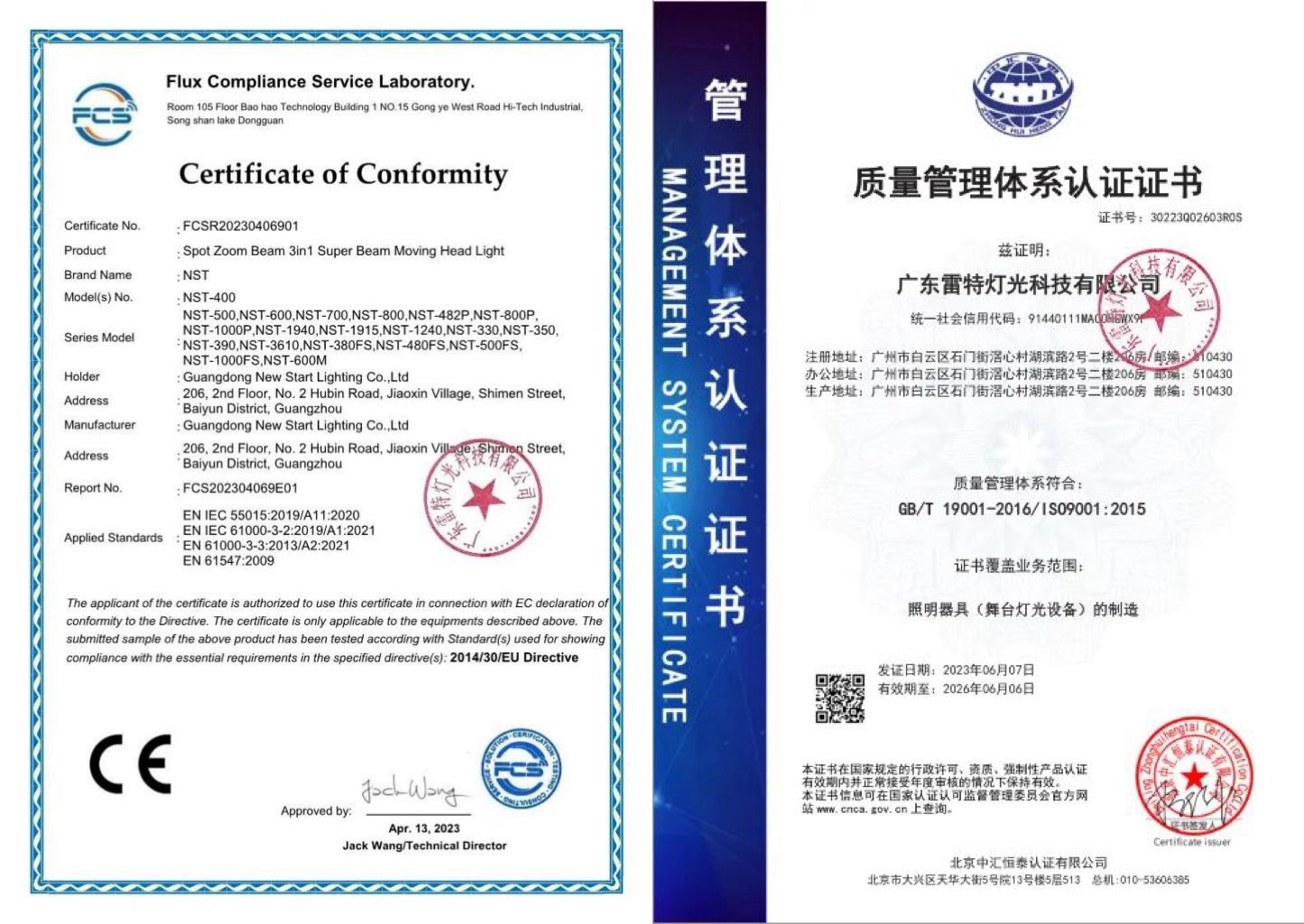

Do your products have relevant certifications?
A2: Yes. Our stage lighting products have passed a series of international certifications, including CE, ROHS, ISO9001, etc., which comply with the safety and environmental standards of global markets. We can also provide customized certification services according to the specific requirements of your target market.
Sample & Testing
Can I get a sample before placing a bulk order?
A3: Yes, we provide sample services. You can order 1-5 samples to test the quality, performance and compatibility of our products. The sample fee is slightly higher than the bulk price (including material cost and processing cost), and the sample fee can be deducted from the bulk order payment if you place a formal order later. The lead time for samples is 3-5 working days.
Can I send my own samples for you to replicate?
A4: Yes. You can send your sample to our factory, and our R&D team will analyze its structure, components and performance, then replicate it according to your requirements. We will ensure that the replicated product is consistent with your sample in terms of quality and performance, and can also optimize it based on our professional experience if needed.
