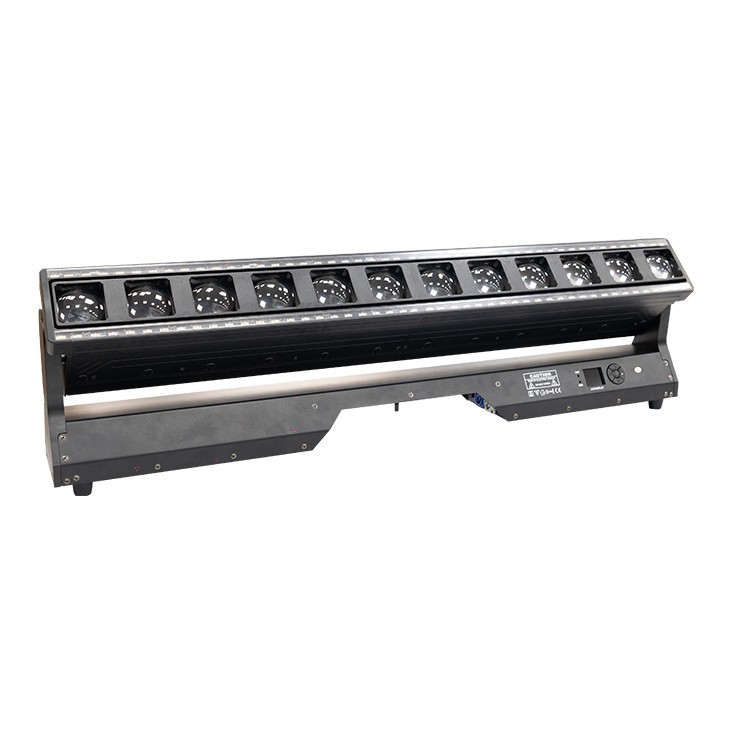

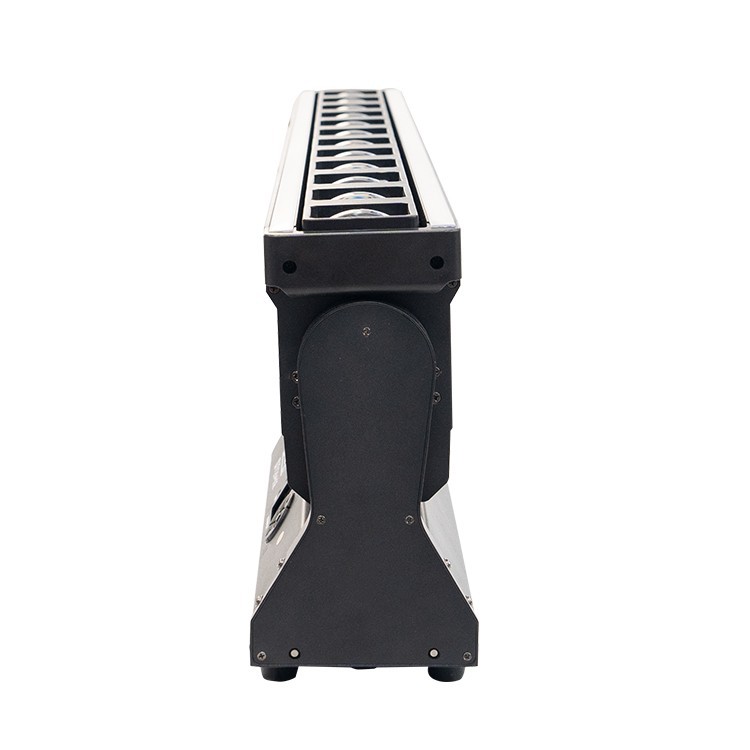

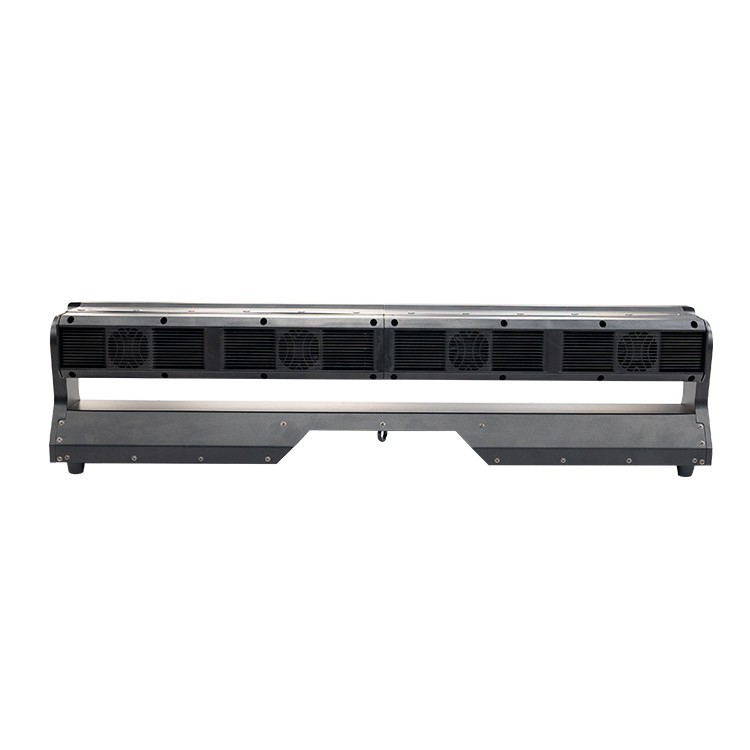

12X40W LED Moving Head Bar Zoom Pixel Light

Guangdong New Start Lighting Co., Ltd. is one of the leading manufacturers and suppliers of 12x40w led moving head bar zoom pixel light in China. With abundant experience, we warmly welcome you to wholesale customized lighting products at competitive price from our factory. Contact us for pricelist.

• Light source configuration: 12 40W RGBW four-color main light beads (supporting RGBW color change) + 144 0.3W RGB auxiliary light beads, combining main and auxiliary light for rich effects.
• Core effects
• Beam: Supports 2.8°-40° focusing for both sharp beams and staining effects;
• Dyeing: RGBW full color change + 32-bit linear dimming for fine color;
• Dynamic features: Y-axis 0°-230° shaking, with flicker, running horse, flowing water, rainbow and other dynamic effects, main and auxiliary lights can be combined to create an atmosphere
• Supports individual control for precise lighting programming
• Control mode: Supports DMX512, auto-drive, master-slave, voice control. Some models have RDM function, with up to 144 channels to meet professional programming requirements.

• Product Name: 12X40W LED Moving Head Bar Zoom Pixel Light
• Product model: NST-1240S

• Light source: Osram RGBW 12 40W beads
• Beam Angle: 2.8°-40°
• Spot Angle: 4.2°-53°
• Color temperature: 2800K-8500K
• Overall lamp output illuminance: 18460Lux@ 5 m
• Lamp bead life: 100,000 hours

• Mixing systems: Uniform RGBW mixing systems and rainbow effects
• Zoom system: Linear electric zoom
• Single-point control: The light source supports independent control for individual units, with outstanding transformation effects
• Effects Macros: Static effects macro and dynamic effects macro features
• Dimming: 0-100% 16-bit fine dimming with four dimming curves
• Stroboscopic: 1-30Hz electronic stroboscopic and random stroboscopic

• LCD display in both Chinese and English, with captions automatically reversed.
• Y-axis scan Angle: 230°
• Protection grade: IP20, for indoor use
• Dot matrix effect: The left and right groups can be controlled separately, and each LED can be independently controlled. The control methods for the colorful and dazzling chasing effect
• Control mode: auto-run mode, master-slave mode and DMX512 control mode
• Control protocol: Standard DMX512, RDM protocol
• Optional network function support: Artnet, Klingnet, SACN network protocols
• Data connection: RJ45 network port input/output, three-core or five-core signal input/output

• Total power: 600W
• Voltage: 100V-240V 50-60Hz
• Working environment: Any safe working environment mirror
• Operating environment temperature: -10°C to 40°C

• High-noise motor for precise focusing, no spot jitter
• Powerful fast stroboscopic effect, high-definition images no flicker
• Efficient heat dissipation system, full temperature monitoring, high-temperature automatic adjustment protection, no risk of lamp damage
• Intelligent speed-regulating fan, real-time temperature display
• Chassis structure: High-temperature resistant engineering plastic outer mold, high-hardness metal, various lamp body colors such as black, white, gray, etc. You can freely choose according to your needs

• Length: 1000mm (39.37")
• Width: 135mm (5.31")
• Height: 175mm (6.89")
• Net weight: 15.1kg (33.22bs)

• Protection class: IP20
• Operating environment: -20 ° C to 45 ° C
• Maximum surface temperature of the lamp body: 80 ° C
• Maximum current of the lamp: 1.9A/220V; 4.3 A / 110 v

• ISO9001 Quality Management System certification
• CE certification

• Can be installed horizontally or vertically
• Universal operating position
• 2 fixed folding lamp hooks for 50mm light stands
• Safety rope connection hole

• Electronic Instruction Manual
• Power cord
• 2 fixed folding light hooks for 50mm light holders

•  Signal cable: Three-core signal cable
