5x30W LED Matrix Light

Send Inquiry
5x30W LED Matrix Light
Details
Model：NST-0530
Brand：New Start
Country of origin：China

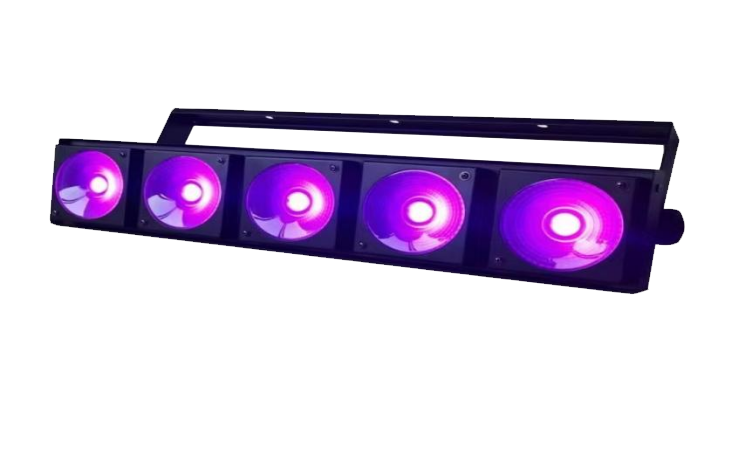

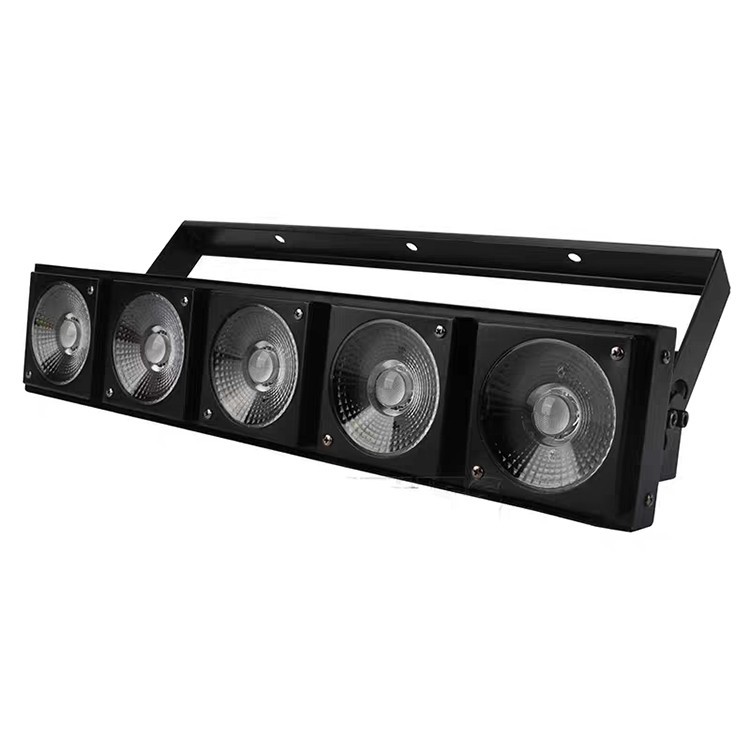

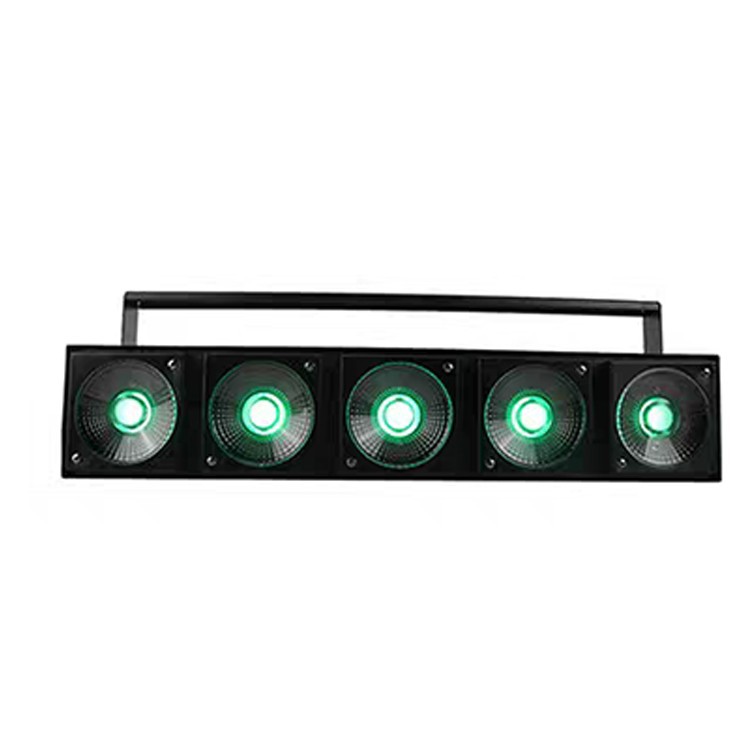

5x30W LED Matrix Light is a commonly used stage lighting device. It consists of five 30-watt LED beads arranged in a matrix, with a total power of 150 watts, providing a strong brightness output.
High brightness: A single high-brightness 30-watt LED bead has high brightness, which can meet the lighting requirements for stages, performances, and other occasions, and performs well even in outdoor environments.
Rich colors: Usually an RGB three-in-one light source, red, green, and blue can be controlled independently, with natural color transitions and the ability to blend multiple colors to create different atmospheres.
Point control function: With point control dyeing function, each LED bead can be individually controlled in terms of color and brightness for precise lighting effect design, such as gradients, patterns, etc.
Category
LED Effect Light
Share to

Guangdong New Start Lighting Co., Ltd. is one of the leading manufacturers and suppliers of 5x30w led matrix light in China. With abundant experience, we warmly welcome you to wholesale customized lighting products at competitive price from our factory. Contact us for pricelist.



Main Features

  • When multiple units are connected, it can create matrix effects, single-point, single-color control, full beam, brilliant colors, stroboscopic explosive, running horse and flowing water effects, etc.

Technical Specifications

  • Product Name: 5x30W LED Matrix Light
  • Product model: NST-0530
  • Light source: 5 leds 30W RGB red green blue three-in-one wick
  • LED bead life: 80,000 hours
  • Color temperature: RGB linear mixed color temperature
  • Heat dissipation: Thickened cast aluminum for natural heat dissipation and thermal conductive adhesive for heat dissipation
  • Stroboscopic: Independent electronic stroboscopic
  • Lens Angle: 25° 35° angles can be customized
  • Dimming: 0-255, 0%-100% linear dimming
  • Color Index (CRI) : Ra≥85
  • Protection grade: IP20

Controls And Programs

  • 4 physical keys
  • Control Protocol: Supports DMX512 signal control, as well as bit control, voice control, auto run, master-slave mode, etc.
  • It is convenient for professional lighting technicians to operate and can also meet the usage requirements of different scenarios

Electrical And Interfaces

  • Input voltage range: 110-240V to 50/60Hz
  • Power: 150W
  • Power socket: Blue and white audio power socket
  • Signal input/output: International standard signal male/female XLR socket

Light Specifications

  • Length: 620mm (24.40")
  • Width :150mm (5.90")
  • Height: 160mm (6.29")
  • Net weight: 3.5kg (7.7lbs)

Carton Size: 4 in 1

  • Length 750mm (29.52")
  • Width: 700mm (27.55")
  • Height :240 mm (9.44")
  • Gross weight: 20kg(44lbs)

Working Environment

  • Maximum ambient temperature: 40°C
  • Minimum operating temperature: -20°C
  • Maximum surface temperature: 65°C

Certification

  • ISO9001 Quality Management System certification
  • CE certification

Installation

  • It can be installed horizontally or vertically
  • Universal operating position

Factory Configuration

  • One electronic copy of the manual
  • Signal cord: 1pcs
  • Power cord: 1pcs
  • 1 Safety cord
