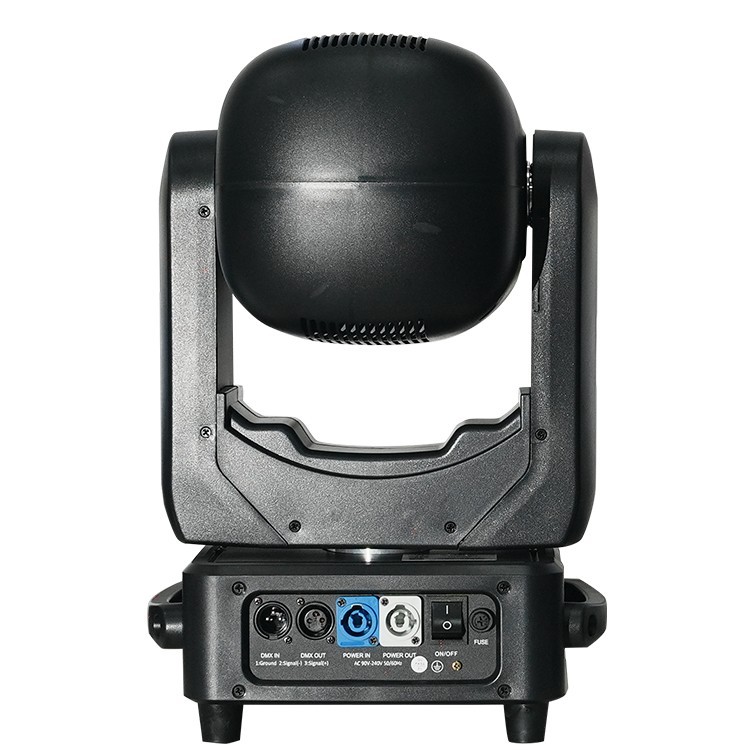

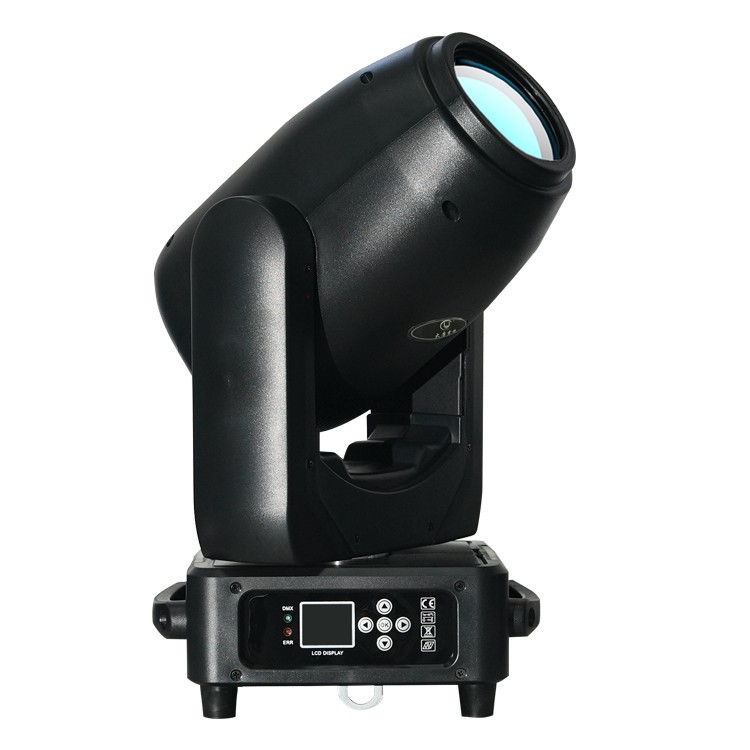

330 LED Spot CMY Moving Head Light

Guangdong New Start Lighting Co., Ltd. is one of the leading manufacturers and suppliers of 330 led spot cmy moving head light in China. With abundant experience, we warmly welcome you to wholesale customized lighting products at competitive price from our factory. Contact us for pricelist.

• High-brightness light source: The light source uses 200W LED integrated beads

• Dual Gobo wheel design: 1 rotatable Gobo wheel with 7 replaceable glass Gobos; 1 fixed Gobo wheel with 9 fixed metal Gobos.
• 1 with a rotating prism for both forward and reverse rotation.

• Linear atomization (0-100%).
• Beam angle 9°-42° linear amplification.
• 0-100% linear dimming, multiple stroboscopic modes up to 25Hz (including random and pulsed).

• 540° (horizontal) / 270° (vertical) extra-large range of motion, 16-bit precision scanning, quiet and stable operation
• The body is equipped with a touch color LCD screen that supports RDM functionality.
• International standard 17-channel DMX512 control.

• Product Name: 330 LED Spot CMY Moving Head Light
• Product Model: NST-330

• 200W LED integrated beads
• LED lifespan: 50,000 hours

• Color temperature: 7000K
• Color rendering Index (CRI) :85
• Light-emitting lens diameter: 88mm

• 4 touch keys
• Control Panel: LCD touchable display
• Control protocol: DMX512, RDM, Art-Net
• DMX channels: 17 international standard DMX channels
• Dimming: 0-100% linear dimming
• Stroboscopic: Up to 25 Hz, with support for random stroboscopic and pulsed stroboscopic
• Aperture: 5% - 100% linear adjustment
• Focusing: Electronic focusing, ultra-smooth
• Atomization: 0-100% linear atomization
• Spot zoom angle: 9° - 42° linear magnification

• X-axis rotation Angle: 540° (16-bit precision scan)
• Y-axis rotation Angle: 270° (16-bit precision scan)
• Fixed lock: Horizontal/vertical lock
• X-axis/Y-axis position out-of-step automatic correction

• 1 color wheel: 9 fixed colors + white light

• 1 rotating glass gobo wheel: 1 rotatable Gobo wheel with 7 replaceable glass Gobos + white circle, each glass gobo can rotate independently forward and backward
• 1 fixed metal gobo wheel: 9 fixed gobos + white circles

• Rotating 3 prism with positioning function

• Self-adaptive power supply
• Input voltage range: AC 100-240 V, 50/60 Hz
• Power: 350W
• Power socket: audio blue and white plug connector input/output
• Signal input/output: Three-pin XLR socket, RJ45 interface

• Length: 310 mm (12.2")
• Width: 220 mm (8.66")
• Height: 550mm (21.65")
• Net weight: 13 kg (28.6lbs)

• Maximum ambient temperature: 40°C
• Minimum operating temperature: -20°C
• Maximum surface temperature: 65°C

• ISO9001 Quality Management System certification
• CE certification

• Can be installed horizontally or vertically
• Universal operating position
• Two fixed light hooks suitable for 50mm light stands
• Safety rope connection hole

• Electronic Instruction Manual
• Power cable
• 2 fixed light hooks for 50mm light stands

• Rain cover: For LED BSW lights
• Signal cable: Three-core XLR signal cable
