Guangdong New Start Lighting Co., Ltd. is one of the leading manufacturers and suppliers of outdoor led 1000w profile frame moving head light in China. With abundant experience, we warmly welcome you to wholesale customized lighting products at competitive price from our factory. Contact us for pricelist.
Main Features
- High-brightness light source: 1000W high-power white LED
- Professional cutting system: 4 gratings for fast, smooth cutting, eight cutting directions and angles can be controlled individually, and the entire cutting module can rotate 90°
Rich Effects System
- Even and smooth CMY+CTO mixing system.
- Dual gobo wheel design: 1 rotating wheel with 7 replaceable gobos with gobo shake and gobo arbitrary positioning, 1 fixed gobo + flowing gobo + white light with gobo shake.
- 1 dynamic effect wheel, linear cut, bidirectional water flow can be fast or slow.
- 1pcs four prism, 1pcs four-row prism with bidirectional rotation and adjustable speed.
Precision Optics And Control
- Electronic focusing, linear aperture (5%-100%), linear fogging (0-100%).
- Zoom angle 6°-45° linear magnification.
- Frequencies can be up to 16Hz/s, and random stroboscopic and pulsed stroboscopic options are available.
Smart Control And Motion
- With a super large movement range of 540° (horizontal) / 270° (vertical), 16-bit precision scanning, it operates quietly and stably, and is equipped with an automatic error correction and reset function.
- The body is equipped with a touch color LCD screen that supports RDM functionality.
Technical Specifications

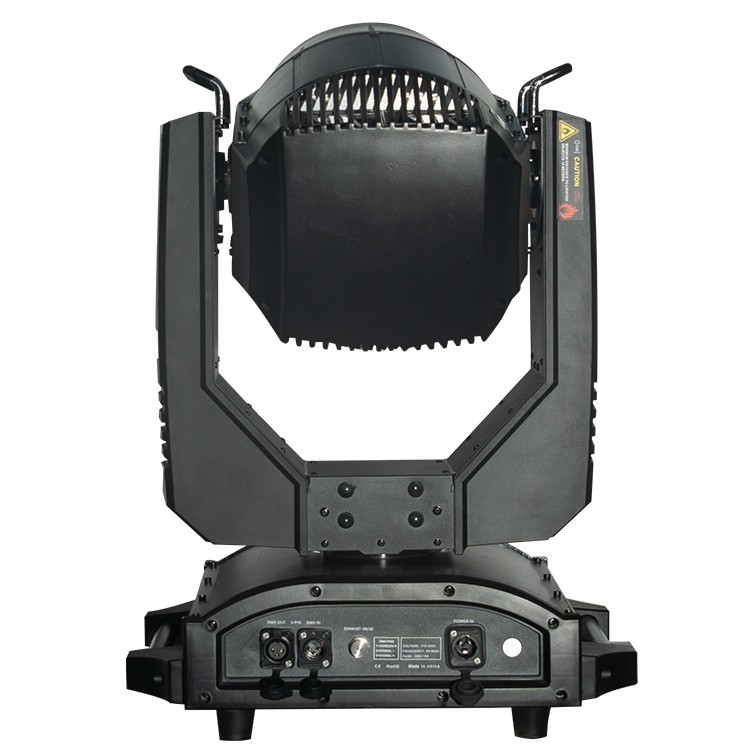

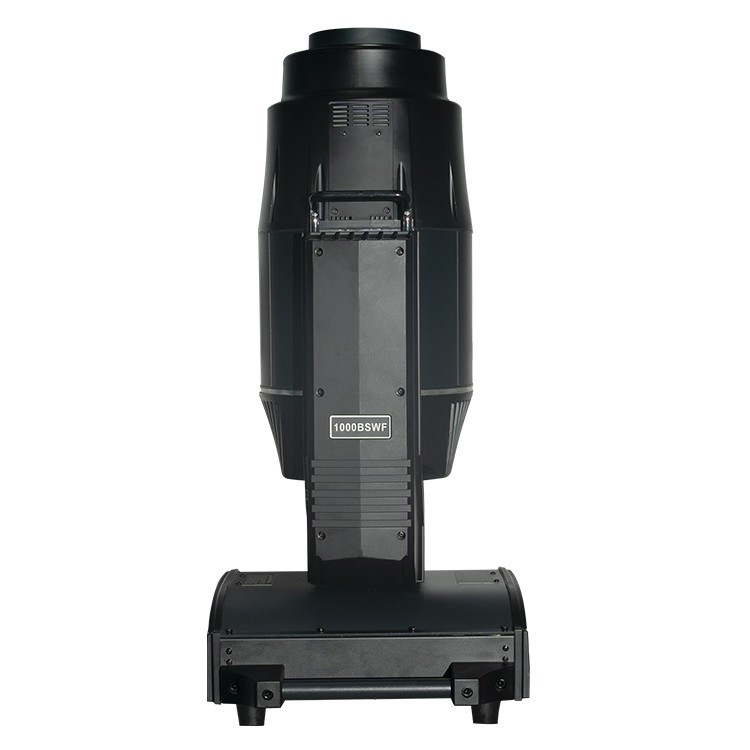

- Product Name: Outdoor LED 1000W Profile Frame Moving Head Light
- Product Model: NST-F1000P
Light Source
- 1000W high-power white LED
- LED lifespan: 50,000 hours
Optical System
- Luminous flux: 56,000 LM
- Color temperature: 7200K
- Color Rendering Index (CRI) : Ra≥90 ultra-high color rendering index
- Output lens diameter: 158mm
Controls And Programs
- 4 touch keys
- Control panel: LCD touchable display
- Control protocol: DMX512, RDM, Art-Net
- Dimming: 0-100% linear dimming
- Stroboscopic: Up to 16Hz/s, with random stroboscopic and pulsed stroboscopic options available.
- Aperture: 5% - 100% linear adjustment
- Focusing: Electronic focusing, ultra-smooth
- Atomization: 0-100% linear atomization
- Zoom Angle: 6° -45 ° linear magnification
X-axis/Y-axis
- X-axis rotation Angle: 540° (16-bit precision scan)
- Y-axis rotation Angle: 270° (16-bit precision scan)
- Fixed lock: Horizontal/vertical lock
- X-axis/Y-axis position out-of-step automatic correction
Color Wheel
- Linear CMY mixing system
- Linear CTO color temperature adjustment
- 1 color wheel: 6 colors + white light, half-color effect, colors can be positioned arbitrarily, with bidirectional rotating rainbow effect
Gobo Wheel
- 1 rotating gobo wheel with 7 replaceable gobos(supporting jitter and positioning)+ white circle with gobo shake and gobo positioning
- 1 fixed metal gobo wheel with 6 fixed gobos++ white circle with gobo shaking.
Effect wheel
- Linear cut, bidirectional water flow can be fast or slow
Prism
- 1pcs four prism, 1pcs four-row prism with bidirectional rotation and adjustable speed.
Cutting system
- 4 gratings for fast, smooth cutting, eight cutting directions and angles can be controlled individually,
- Fast and smooth operation with adjustable speed
- The cutting system can move smoothly and position precisely
- The entire cutting module can rotate 90°
Electrical And Interfaces
- Self-adaptive power supply
- Input voltage range: AC100-240 V, 50/60 Hz
- Power: 1200W
- Power socket: Waterproof power connector input/output or direct output
- Signal input/output: Three-core XLR socket, RJ45 interface
Light Size And Weight
- Length: 446mm (17.55")
- Width: 362mm (14.25")
- Height: 770 mm (30.31")
- Net weight: 43 kg (94.6lbs)
Flight Case Size And Weight
- Length: 590 mm (23.22")
- Width: 560 mm (22.04")
- Height: 860 mm (33.85")
- Net weight: 29.35 (64.57lbs)(including 1 in 1 flight case)
Working Environment
- Maximum ambient temperature: 40°C
- Minimum operating temperature: -20°C
- Maximum surface temperature: 65°C
Certification
- ISO9001 Quality Management System certification
- CNAS third-party test report included
- CE certification
Installation
- Can be installed horizontally or vertically
- Universal operating position
- 2 fixed folding light hooks for 50mm light stands
- Safety rope connection hole
Factory Configuration
- Electronic Instruction Manual
- Power cable
- 2 fixed folding light hooks for 50mm light holders
Optional Accessories
- Signal cable: Three-core XLR signal cable
Order & Shipment
Q1: What is the lead time for regular orders and customized orders?
A1: For regular stock products, the lead time is 3-5 working days. For OEM orders, the lead time is 15-20 working days after sample confirmation. For ODM orders, it takes 25-35 working days (depending on the R&D and production cycle). We will confirm the exact delivery time with you before placing the order.
Q2: What shipping methods do you offer?
A2: We cooperate with well-known international logistics companies such as DHL, FedEx, UPS, TNT for small-batch orders, which can deliver goods to your door within 6-10 days. For large-batch orders, we can arrange sea shipping, air shipping or railway shipping according to your needs, and provide door-to-door, port-to-port or warehouse-to-warehouse services. We will help you choose the most cost-effective shipping method based on your order quantity and delivery time requirements.
Q3: How do you package the products to avoid damage during shipping?
A3: We use high-quality packaging materials, including shockproof foam, cartons with reinforced edges, and flight cases for large or fragile products. Each product is individually packaged and tested for impact resistance before shipment. We also purchase transportation insurance for all orders to ensure that you can get compensation in case of product damage during shipping.
