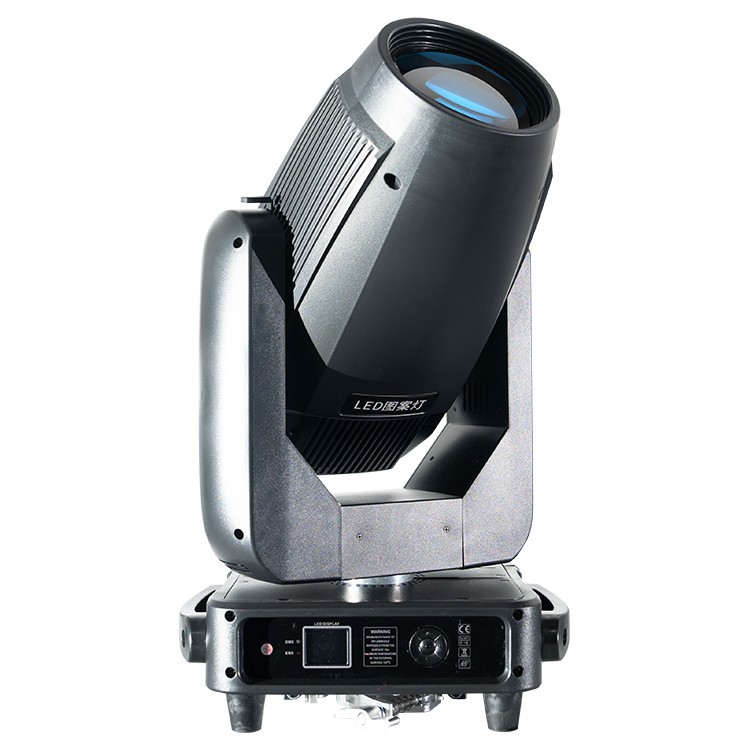

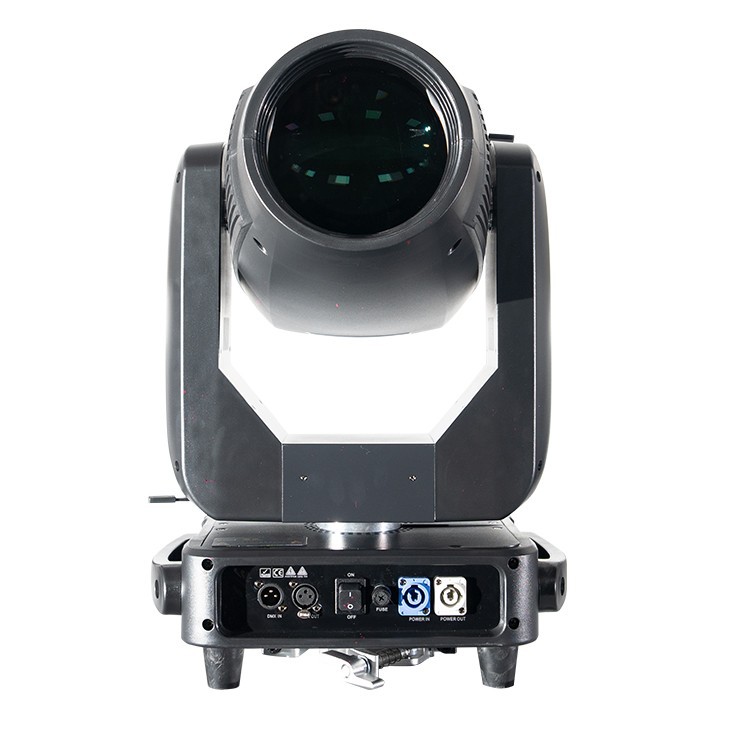

LED 400W Moving Head BSW CTO CMY Light

Guangdong New Start Lighting Co., Ltd. is one of the leading manufacturers and suppliers of led 400w moving head bsw cto cmy light in China. With abundant experience, we warmly welcome you to wholesale customized lighting products at competitive price from our factory. Contact us for pricelist.

• High-brightness light source: 400W white light module

• Even and smooth CMY+CTO mixing system.
• Double gobo wheel design: 1 rotatable Gobo wheel with 7 replaceable glass Gobos, 1 fixed Gobo wheel with 9 fixed metal Gobos+ flame gobo.
• 1pcs 3 prism 1pcs 8 prism, with bidirectional rotation and adjustable speed.

• Linear atomization 0-100%.
• Spot zoom angle 5°-52° linear amplification.
• 0-100% linear dimming, 1-20 times/second high-speed stroboscopic mode (including random and pulse).

• 540° (horizontal) / 270° (vertical) extra-large range of motion, 16-bit precision scanning, quiet and stable operation.
• The body is equipped with a touch color LCD screen and supports RDM function.
• International standard 26-channel DMX512 control.

• Product Name: LED 400W Moving Head BSW CTO CMY Light
• Product Model: NST-600BSW

• 400W white light module
• LED lifespan: 50,000 hours

• Color temperature: 7700K
• Color Rendering Index (CRI) : 90
• Output lens diameter: 140MM

• 4 touch keys
• Control Panel: LCD touchable display
• Control protocol: DMX512, RDM, Art-Net
• DMX channels: 26 international standard DMX channels
• Dimming: 0-100% linear dimming
• Stroboscopic: 1-20 times per second high-speed stroboscopic mode (including random and pulse)
• Aperture: 5% - 100% linear adjustment
• Focusing: Electronic focusing, ultra-smooth
• Atomization: 0-100% linear atomization
• Spot zoom angle: 5° -52 ° linear magnification

• X-axis rotation Angle: 540° (16-bit precision scan)
• Y-axis rotation Angle: 270° (16-bit precision scan)
• Fixed lock: Horizontal/vertical lock
• X-axis/Y-axis position out-of-step automatic correction

• 1 color wheel: 9 fixed colors + white light

• 1 rotatable Gobo wheel with 7 replaceable glass Gobos+ white circle, each glass gobo can rotate independently forward and backward
• 1 fixed metal Gobo wheel with 9 fixed Gobos+flame gobo

• 1 prism disk and 1 octagonal prism

• Self-adaptive power supply
• Input voltage range: AC 100-240 V, 50/60 Hz
• Power :600W
• Power socket: audio blue and white plug connector input/output
• Signal input/output: Three-pin XLR socket, RJ45 interface

• Length: 380 mm (14.96")
• Width: 280 mm (11.02")
• Height: 650 mm (25.59")
• Net weight: 23.5 kg (51.7lbs)

• Length: 830 mm (32.67 ")
• Width: 490mm (19.29 ")
• Height: 860mm (33.85")
• Net weight: 79kg(173.8lbs) (including 2 in 1 flight case)

• Maximum ambient temperature: 40°C
• Minimum operating temperature: -20°C
• Maximum surface temperature: 65°C

• Can be installed horizontally or vertically
• Universal operating position
• 2 fixed lamp hooks for 40-55mm lamp stands
• Safety rope connection hole

• Electronic Instruction Manual
• Power cord
• 2 fixed light hooks for 50mm light stands

• Rain cover: For LED BSW lights
• Signal cable: Three-core XLR signal cable

Q1: How do you ensure the quality of your stage lighting products?

A1: Quality control is a top priority for us. We implement strict quality management systems throughout the entire production process. This includes incoming inspection of raw materials and components, in-process quality checks during manufacturing, and 100% final testing before shipment (such as light intensity testing, durability testing, voltage stability testing and safety testing). We only use high-quality components from trusted suppliers to ensure the performance and lifespan of our products.

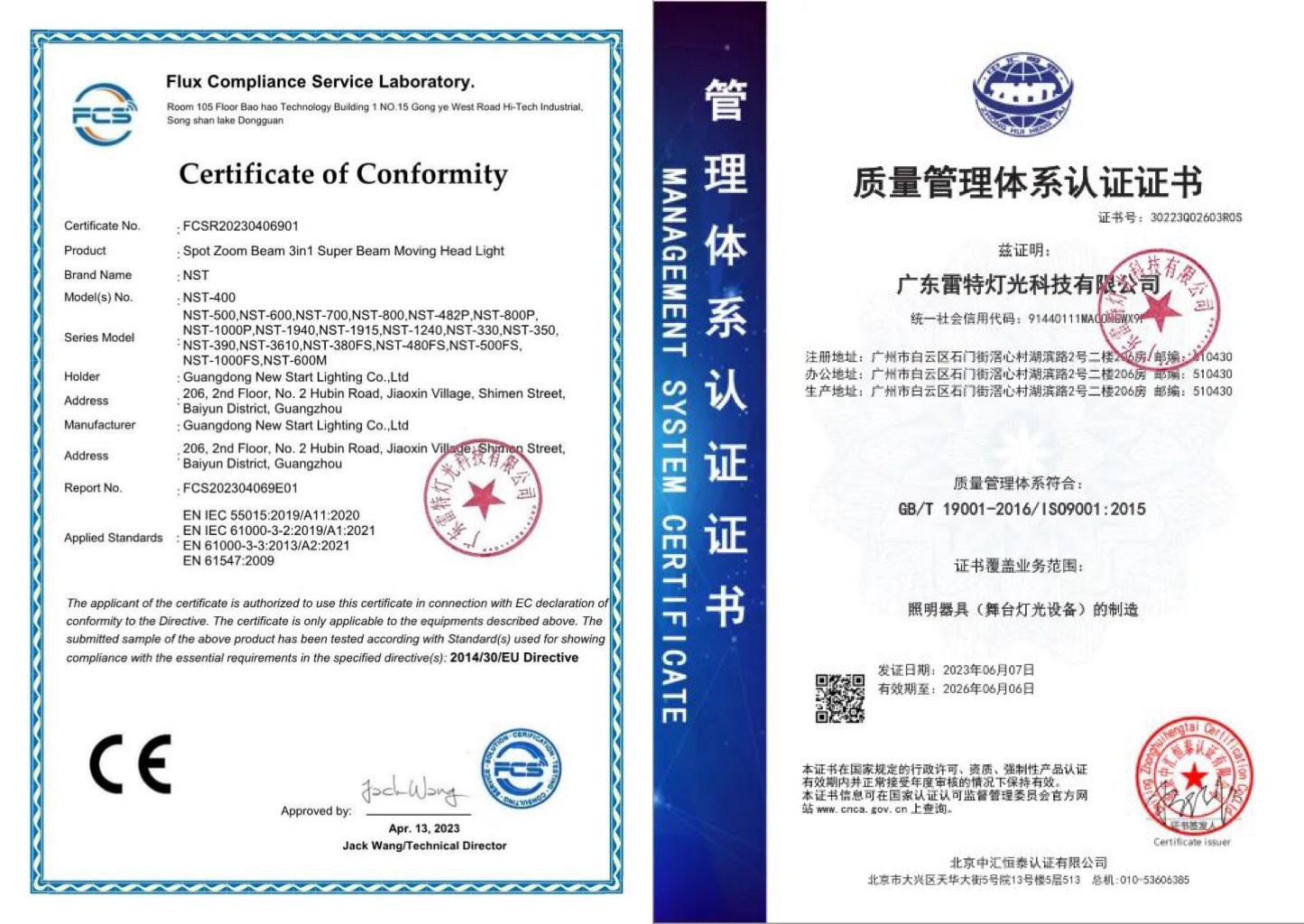

Q2: Do your products have relevant certifications?

A2: Yes. Our stage lighting products have passed a series of international certifications, including CE, ROHS, ISO9001, etc., which comply with the safety and environmental standards of global markets. We can also provide customized certification services according to the specific requirements of your target market.
