Guangdong New Start Lighting Co., Ltd. is one of the leading manufacturers and suppliers of 400w moving head bsw cto light in China. With abundant experience, we warmly welcome you to wholesale customized lighting products at competitive price from our factory. Contact us for pricelist.
Key Features
- High-brightness light source: Original Osram 371W light source
Rich Effects System
- Arc CTO, color temperature 3200-5600K linearly adjustable, white light color temperature 7500K
- Dual gobo wheel design: 1 rotatable Gobo wheel with 7 replaceable glass Gobos + white light for bidirectional jitter, flowing water effect; 1 fixed Gobo wheel with 12 fixed metal Gobos+ white light.
- 8 prisms +6 rows of prisms for superimposing effects in both forward and reverse motion
Precision Optics And Control
- Linear atomization (0-100%).
- Spot zoom angle: 5° - 50° linear magnification.
- 2 gate stroboscopic structures adjustable 0.5-9 times per second.
Smart Control And motion
- 540° (horizontal) / 270° (vertical) extra-large range of motion, 16-bit precision scanning, quiet and stable operation
- The body is equipped with a touch color LCD screen that supports RDM functionality.
- International standard 20/24-channel DMX512 control.
Technical Specifications

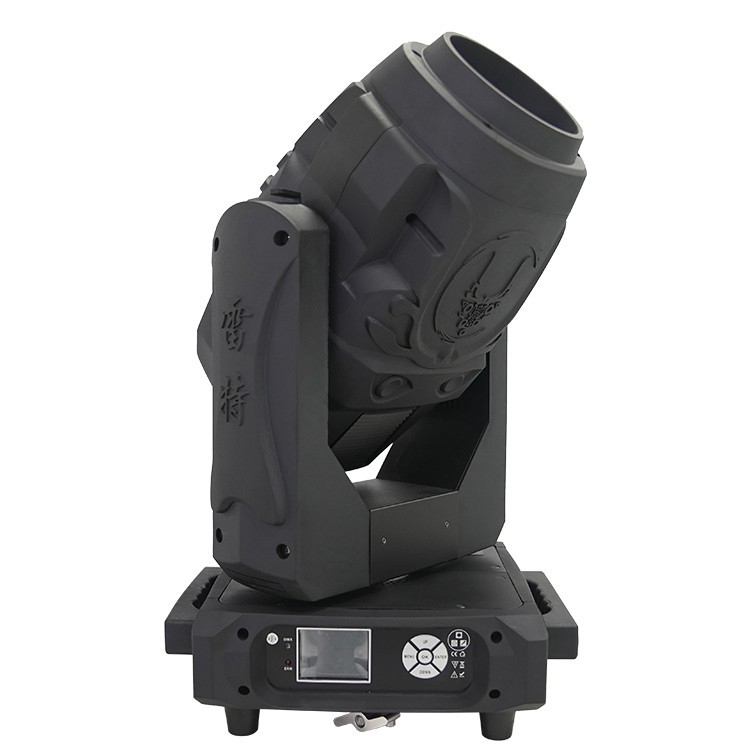

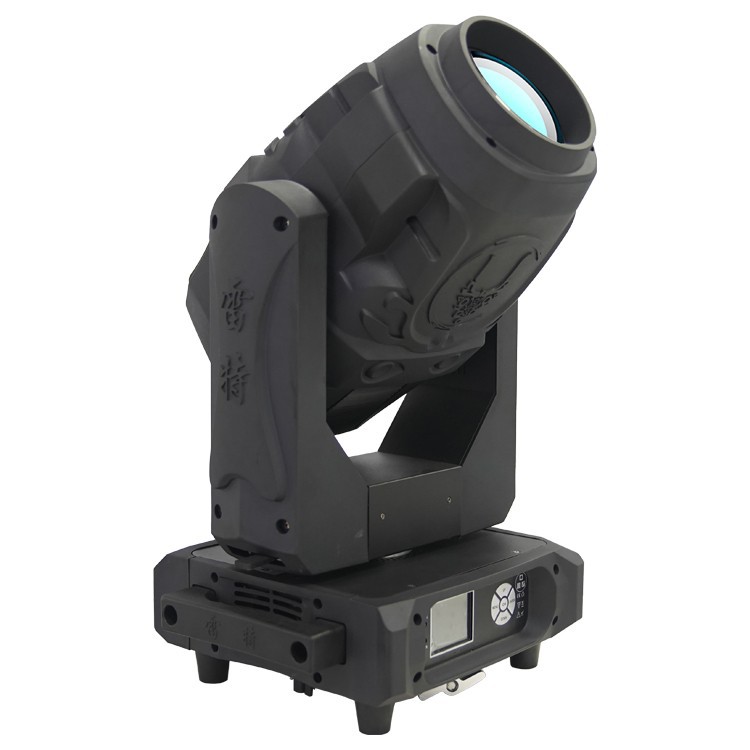

- Product Name: 400W Moving Head BSW CTO Light
- Product Model: NST-400BSW
Light Source
- Osram Sirius HRI 371W
- Bulb life: 3,000 hours
Optical System
- Luminous flux: 580,000 lumens
- Color temperature: CTO color temperature 3200-5600K linearly adjustable, white light color temperature 7500K
- Color Rendering Index (CRI) : 85
- Output lens diameter: 130mm
Controls And Programs
- 4 touch keys
- Control Panel: LCD touchable display
- Control protocol: DMX512, RDM, Art-Net
- DMX channels: 20/24 international standard DMX channels
- Dimming: 0-100% linear dimming
- Stroboscopic: 2 gate stroboscopic structures, adjustable 0.5-9 times per second.
- Aperture: 5% - 100% linear adjustment
- Focusing: Electronic focusing, ultra-smooth
- Atomization: 0-100% linear atomization
- Spot zoom angle: 5° -50 ° linear magnification
X-axis/Y-axis
- X-axis rotation Angle: 540° (16-bit precision scan)
- Y-axis rotation Angle: 270° (16-bit precision scan)
- Fixed lock: Horizontal/vertical lock
- X-axis/Y-axis position out-of-step automatic correction
Color Wheel
1 color wheel with 9 colors + white light, with a bidirectional rotating rainbow effect
Gobo Wheel
- 1 rotatable Gobo wheel with 7 replaceable glass Gobos + white light for bidirectional jitter, flowing water effect;
- 1 fixed Gobo wheel with 12 fixed metal Gobos+ white light.
Effect Wheel
- 2 fixed zoom effect gobos+ forward and reverse water flow gobo
Prism
- 1pcs six row prism and 1pcs eight prism
Electrical and Interface
- Self-adaptive power supply
- Input voltage range: AC 100-240 V, 50/60 Hz
- Power:500W
- Power socket: audio blue and white plug connector input/output
- Signal input/output: Three-pin XLR socket, RJ45 interface
Light Size And Weight
- Length: 360 mm (14.17")
- Width: 270mm (10.62")
- Height: 650 mm (25.59")
- Net weight: 22.1 kg (48.62lbs)
Flight Case Size And Weight
- Length: 830 mm (32.67 ")
- Width: 490mm (19.29 ")
- Height: 860mm (33.85")
- Net weight: 79kg(173.8lbs) (including 2 in 1 flight case)
Working Environment
- Maximum ambient temperature: 40°C
- Minimum operating temperature: -20°C
- Maximum surface temperature: 65°C
Certification
- ISO9001 Quality Management System certification
- CE certification
Installation
- Can be installed horizontally or vertically
- Universal operating position
- 2 fixed light hooks for 50mm light stands
- Safety rope connection hole
Factory Configuration
- Electronic Instruction Manual
- Power cable
- 2 fixed light hooks for 50mm light stands
Optional Accessories
- Rain cover: For moving head BSW lights
- Signal cable: Three-core signal cable
OEM & ODM Services
Q1: Do you provide OEM and ODM services?
A1: Yes, we specialize in providing both OEM and ODM services for global customers. Whether you need to print your own logo on our existing products (OEM) or develop a customized stage lighting product according to your unique design, specifications and requirements (ODM), our R&D and production teams can support you.
Q2: What is the process for OEM/ODM orders?
A2: The process is as follows: 1) You provide your requirements (design drawings, specifications, logo, packaging requirements, etc.); 2) Our team evaluates the feasibility and provides a quotation and sample plan; 3) We produce samples for your confirmation; 4) After sample approval, we sign the contract and start mass production; 5) We conduct strict quality inspection before shipment and deliver the goods on time. The whole process is supervised by a dedicated project manager to ensure smooth progress.
Q3: Is there a minimum order quantity (MOQ) for OEM/ODM orders?
A3: The MOQ for OEM orders is usually 20-50 units per model, and for ODM orders, it depends on the complexity of the product and customization requirements (usually 50-100 units). We can also negotiate the MOQ for long-term cooperative customers or small-batch trial orders to meet your business needs.
Hot Tags: 400w moving head bsw cto light, China 400w moving head bsw cto light manufacturers, suppliers, factory
