Guangdong New Start Lighting Co., Ltd. is one of the leading manufacturers and suppliers of led 1200w bswp profile frame moving head light in China. With abundant experience, we warmly welcome you to wholesale customized lighting products at competitive price from our factory. Contact us for pricelist.
Main Features
- High-brightness light source: With 1200W LED module.
- Professional cutting system: A cutting disc consisting of 4 independent bevel pieces that can rotate 90 degrees to precisely shape geometric spots in any direction.
Rich Effect System
- Even and smooth CMY+CTO mixing system.
- Dual gobo wheels design: 1 rotating gobo wheel with 7 replaceable gobos (supporting jitter and bidirectional rotation), gobo rotation with 16-bit precision fine-tuning;1 gobo wheel with 8 gobos, variable jitter and bidirectional rotation.
- 1 Dynamic effects wheel that simulates dynamic effects such as flames and flowing water.
- 1pcs four prism, 1pcs four-row prism with bidirectional variable rotation.
Precision Optics And Control
- Electronic focusing, linear aperture (5%-100%), linear fogging (0-100%).
- zoom angle 5.5°-50° linear magnification.
- Fast electronic stroboscopic effect of 1-25Hz per second, featuring pulse stroboscopic and synchronous and asynchronous stroboscopic effects.
Smart Control And Motion
540° (horizontal) / 270° (vertical) extra-large range of motion, 16-bit precision scanning, quiet and stable operation with automatic error correction reset function.
The body is equipped with a touch color LCD screen that supports RDM functionality.
International standard 41-channel DMX512 control.
Technical Specifications

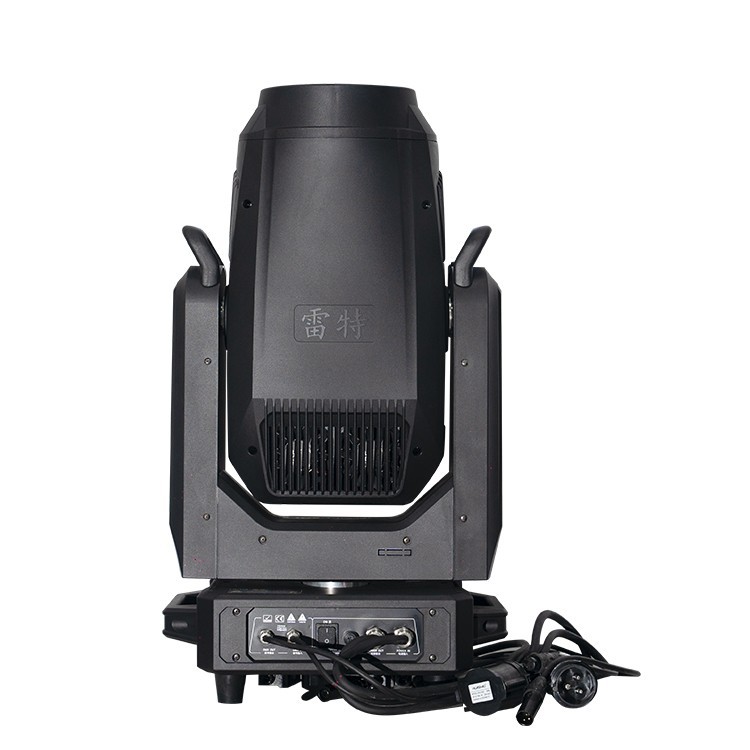

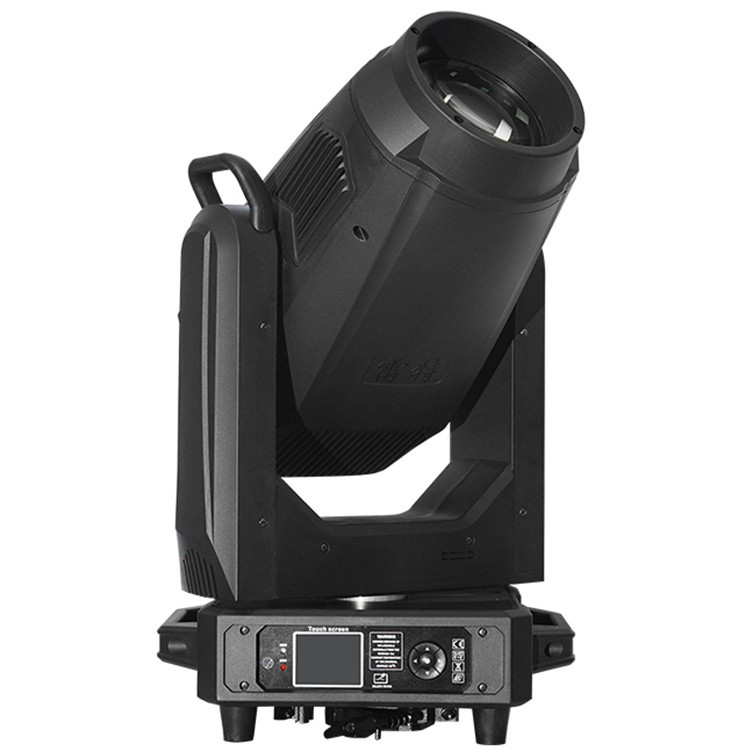

- Product Name: LED 1200W BSWP Profile Frame Moving Head Light
- Product model: NST-1200BSWP
Light Source
- 1200W LED module
- LED lifespan: 50,000 hours
Optical System
- Luminous flux:67,000 LM
- Color temperature: 6500K/7500K
- Color Rendering Index (CRI) : when 6500K,High color rendering index :Ra≥93/96,R9≥90/96; when 7500K,Low color rendering index :Ra≥70
- Output lens diameter: 158mm
Controls And Programs
- 4 touch keys
- Control panel: LCD touchable display
- Control protocol: DMX512, RDM, Art-Net
- DMX channels: 41 international standard DMX channels
- Dimming: 0-100% linear dimming
- Stroboscopic: 1-25Hz fast electron stroboscopic per second
- Aperture: 5% - 100% linear adjustment
- Focusing: Electronic focusing, ultra-smooth
- Atomization: 0-100% linear atomization
- Zoom angle: 5.5° -50 ° linear magnification
X-axis/Y-axis
- X-axis rotation Angle: 540° (16-bit precision scan)
- Y-axis rotation Angle: 270° (16-bit precision scan)
- Fixed lock: Horizontal/vertical lock
- X-axis/Y-axis position out-of-step automatic correction
Color Wheel
- Linear CMY mixing system
- Linear CTO color temperature adjustment
- 1 color wheel: 7 fixed colors + white light, half-color effect, color wheels can be positioned arbitrarily, with bidirectional rotating rainbow effect
Gobo Wheel
- 1 rotating gobo wheel with 7 replaceable gobos (supporting jitter and bidirectional rotation), gobo rotation with 16-bit precision fine-tuning;
- 1 gobo wheel with 8 gobos, variable jitter and bidirectional rotation.
Effect Wheel
- 1 dynamic effect wheel that simulates dynamic effects such as flames, flowing water, etc.
Prism
- 1pcs four prism, 1pcs four-row prism with bidirectional variable rotation.
Cutting system
- 4 cutting wheels for fast, smooth cutting, with independent control of direction and angle for each cutting wheel;
- Fast and smooth operation with adjustable speed
- The cutting system can move smoothly and position precisely
- A single piece can be completely closed to light, and the entire cutting module can rotate ±90° to create triangular, prism, rectangular and other shapes of light spots in any direction
Electrical And Interfaces
- Self-adaptive power supply
- Input voltage range: AC100-240 V, 50/60 Hz
- Power: 1350W
- Power socket: Waterproof power connector input/output or direct output
- Signal input/output: Three-core XLR socket, RJ45 interface
Light Size And Weight
- Length: 480mm (18.89")
- Width: 345mm (13.58")
- Height: 820mm (32.28")
- Net weight: 38 kg (83.6lbs)
Working Environment
- Maximum ambient temperature: 40°C
- Minimum operating temperature: -20°C
- Maximum surface temperature: 65°C
Certification
- ISO9001 Quality Management System certification
- CNAS third-party test report included
- CE certification
Installation
- Can be installed horizontally or vertically
- Universal operating position
- 2 fixed folding light hooks for 50mm light stands
- Safety rope connection hole
Factory Configuration
- Electronic Instruction Manual
- Power cord
- 2 fixed folding light hooks for 50mm light stands
Optional Accessories
- Rain cover: For LED moving head profile light
- Signal cable: Three-core XLR signal cable
OEM & ODM Services
Q1: Do you provide OEM and ODM services?
A1: Yes, we specialize in providing both OEM and ODM services for global customers. Whether you need to print your own logo on our existing products (OEM) or develop a customized stage lighting product according to your unique design, specifications and requirements (ODM), our R&D and production teams can support you.
Q2: What is the process for OEM/ODM orders?
A2: The process is as follows: 1) You provide your requirements (design drawings, specifications, logo, packaging requirements, etc.); 2) Our team evaluates the feasibility and provides a quotation and sample plan; 3) We produce samples for your confirmation; 4) After sample approval, we sign the contract and start mass production; 5) We conduct strict quality inspection before shipment and deliver the goods on time. The whole process is supervised by a dedicated project manager to ensure smooth progress.
Q3: Is there a minimum order quantity (MOQ) for OEM/ODM orders?
A3: The MOQ for OEM orders is usually 20-50 units per model, and for ODM orders, it depends on the complexity of the product and customization requirements (usually 50-100 units). We can also negotiate the MOQ for long-term cooperative customers or small-batch trial orders to meet your business needs.
