Guangdong New Start Lighting Co., Ltd. is one of the leading manufacturers and suppliers of outdoor circle control 18x12w rgbw led par light in China. With abundant experience, we warmly welcome you to wholesale customized lighting products at competitive price from our factory. Contact us for pricelist.
Main Features
- High energy efficiency light source: 18x12W 5050 leds, RGBW 4 in 1 leds, high brightness, low energy consumption
- Excellent color mixing and light effect: Full and even color, with support for multi-angle fogging effect switching
- Lightweight and secure design: Compact and lightweight structure with double hangers for flexible and reliable installation
- Scene adaptability: One-click switching of light effects to meet a wide range of application requirements
- Indoor specific protection: IP65 protection rating, suitable for outdoor environments
Technical Specifications

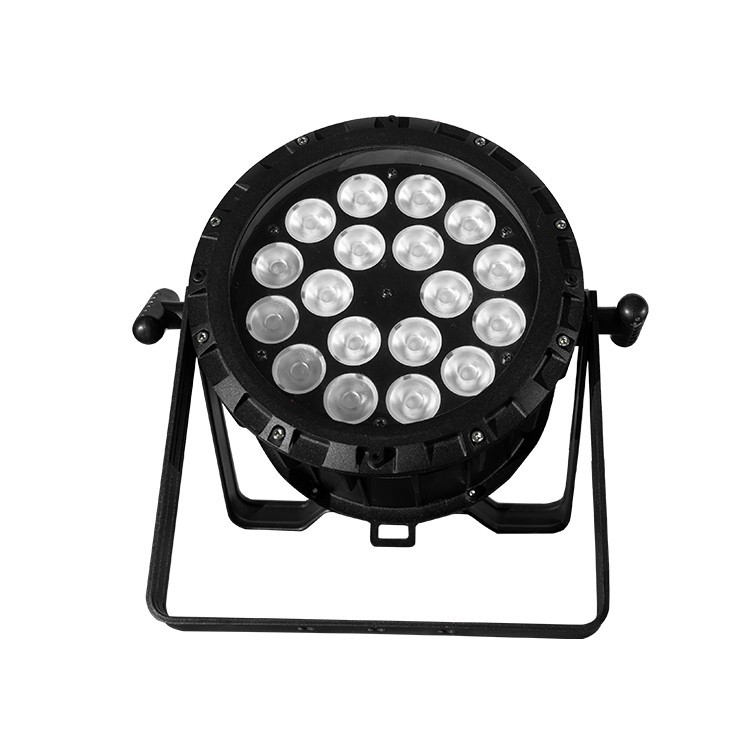

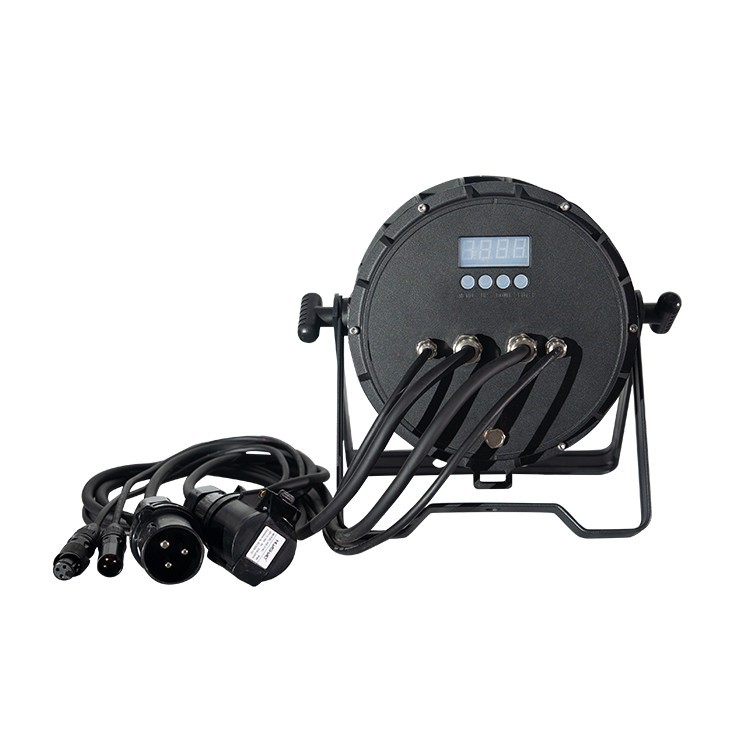

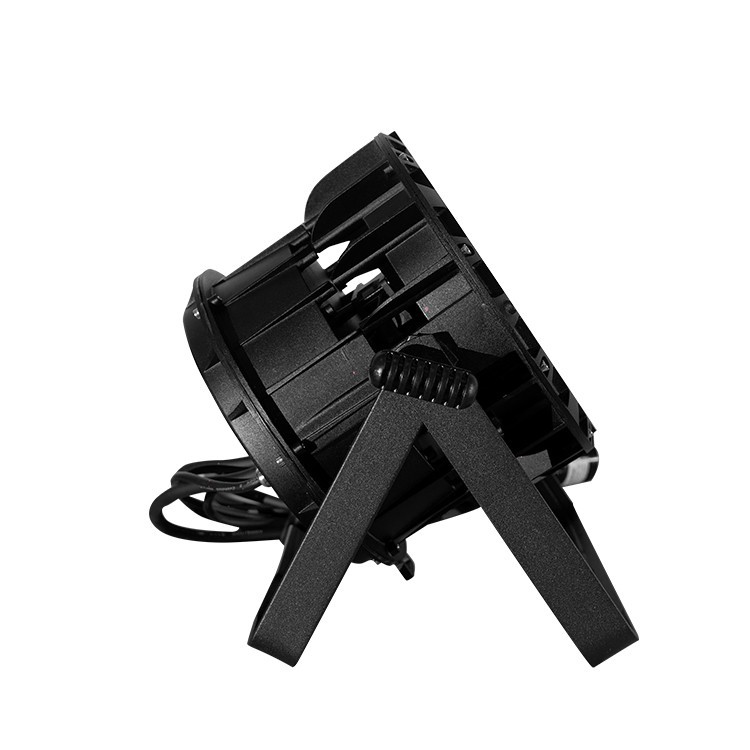

Product Name: Outdoor Circle Control 18x12w RGBW LED Par Light
Product Model: NST-FS18Q
Light Source
- Light source: Full-color 18 12W LED RGBW beads
- Expected service life of the light source: 80,000 hours Data provided by the light source supplier
Optical Systems
- Dimming: 0-100% precise linear dimming (16-bit accuracy)
- Stroboscopic: 1-20 times per second
- Lens Angle: 20°(standard, customizable)
Controls And Programs
- 4 touch keys
- Control panel: LED display
- Operation mode: DMX512 / master-slave mode/auto-program/voice control
- Control protocol: DMX512, RDM
- DMX channel modes: more than three channel modes
- Software upgrade: Upgrade the software via DMX connection
Other Effects
- Multiple speed stroboscopic effects
- 0-100% smooth dimming
Electrical And Interfaces
- Input voltage range: AC 110-240V, 50/60Hz (globally applicable)
- Power: 200W
- Power socket: Power cord input/output
- Signal input/output: 3-pin XLR socket
Mechanical And Physical Properties
- Housing material: Full cast aluminum case (thick heat dissipation)
- Light body color: Black/white (standard, customizable)
Light Size And Weight
- Length: 320 mm (12.6")
- Width: 220mm (8.66")
- Height: 290mm (11.42")
- Net weight: 4.5kg (9.9lbs)
Carton Size
- Length: 260 mm (10.23")
- Width: 260 mm (10.23")
- Height :360 mm (14.17")
- Weight :5.15kg (11.33lbs) (including carton, 1 per 1 standard)
Working Environment
- Maximum ambient temperature: 40°C
- Minimum operating temperature: -20°C
- Maximum surface temperature: 65°C
- Protection class: IP65
Certification
- CE certification
- Obtain ISO9001 quality management system certification
Installation
- It can be installed horizontally or vertically
- Universal working position
- Single hanger mounting (with eagle-claw light hooks)
- Safety rope connection hole
Factory Configuration
- Electronic instruction manual
- Power cord
- Eagle claw light hook
Optional Accessories
- 8 in 1 flight case
