18x12W RGBW 4 in 1 LED Par Light

Send Inquiry

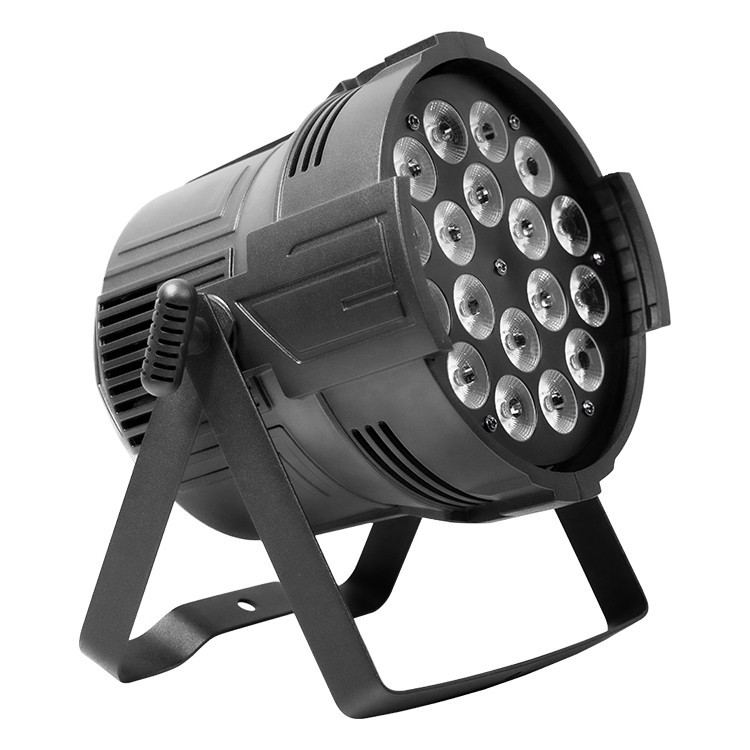

18x12W RGBW 4 in 1 LED Par Light
Details
Model： NST-18K
Brand：New Start
Country of origin：China
18x12W RGBW 4 in 1 LED Par Light is a professional stage lighting fixture that combines high brightness with fine tinting effect. Its core advantages are "full color fit + stable output + multi-scene compatibility", and the specific features are as follows: In terms of core configuration, it is equipped with 18x12-watt RGBW four-in-one (red, green, blue, white) LED beads that support single-point independent control, with a total power of 180W, sufficient brightness and soft light; With high-quality optical lenses, the light spreads evenly, there is no glare, no speckles, and the color coverage is wide.
In terms of core functionality, with RGBW four-color mixing technology, rich color effects such as full-color gradient and static dyeing can be achieved, combined with 32-bit linear dimming and 0-100% seamless dimming, with fine and natural color transitions; It supports 1-20Hz stroboscopic function to create dynamic lighting atmospheres and adapt to different performance rhythms.
Category
LED Par Light
Share to

Guangdong New Start Lighting Co., Ltd. is one of the leading manufacturers and suppliers of 18x12w rgbw 4 in 1 led par light in China. With abundant experience, we warmly welcome you to wholesale customized lighting products at competitive price from our factory. Contact us for pricelist.



Main Features

  • High energy efficiency light source: 18x12W RGBW four-color leds, high brightness, low energy consumption
  • Excellent color mixing and light effects: Full and even colors, with support for multi-angle fogging effect switching
  • Lightweight and secure design: Compact and lightweight structure with double hangers for flexible and reliable installation
  • Scene adaptability: One-click switching of light effects to meet a wide range of application requirements
  • Indoor protection: IP20 protection rating, suitable for dry indoor environments

Technical Specifications

  • Product Name: 18x12W RGBW 4 in 1 LED Par Light
  • Product Model: NST-18K

Light Source

  • Light source: Full-color 18 12W LED RGBW beads
  • Expected lifespan of the light source: 80,000 hours Data provided by the light source supplier

Optical Systems

  • Dimming: 0-100% precise linear dimming (16-bit accuracy)
  • Stroboscopic: 1-20 times per second
  • Lens Angle: 25°(standard, customizable)

Controls And Programs

  • 4 touch keys
  • Control panel: LED display
  • Operation mode: DMX512 / master-slave mode/auto-program/voice control
  • Control protocol: DMX512, RDM
  • DMX channel modes: no fewer than three channel modes
  • Software upgrade: Upgrade the software via DMX connection

Other Effects

  • Multiple speed stroboscopic effects
  • 0-100% smooth dimming

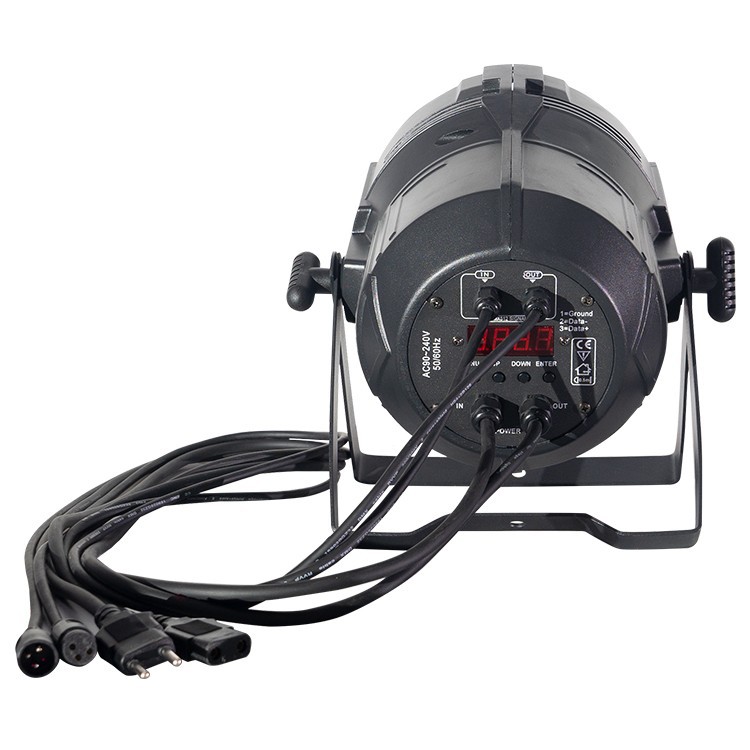

Electrical And Interfaces

  • Input voltage range: AC 110-240V, 50/60Hz (universal)
  • Power: 200W
  • Power socket: Power cord input/output
  • Signal input/output: 3-pin XLR socket

Mechanical And Physical Properties

  • Housing material: Full cast aluminum case (thick heat dissipation)
  • Lamp body color: Black/white (standard, customizable)

Light Size And Weight

  • Length: 280 mm (11.02")
  • Width: 310 mm (12.2")
  • Height: 300 mm (11.81")
  • Net weight: 2.8 kg (6.16lbs)

Carton Size

  • Length: 360 mm (14.2")
  • Width: 260 mm (10.2")
  • Height: 260 mm (10.2")
  • Weight: 3.9kg (8.6lbs) (including carton, 1 per 1 standard)

Working Environment

  • Maximum ambient temperature: 40°C
  • Minimum operating temperature: -20°C
  • Maximum surface temperature: 65°C
  • Protection class: IP20

Certification

  • CE certification
  • Obtain ISO9001 quality management system certification

Installation

  • It can be installed horizontally or vertically
  • Universal working position
  • Single hanger mounting (with small light hooks)
  • Safety rope connection hole

Factory Configuration

  • Electronic Instruction Manual
  • Power cord

Optional Accessories

  • Rain cover
  • 8 in 1 flight case
