LED Triangle Stage Light

Send Inquiry

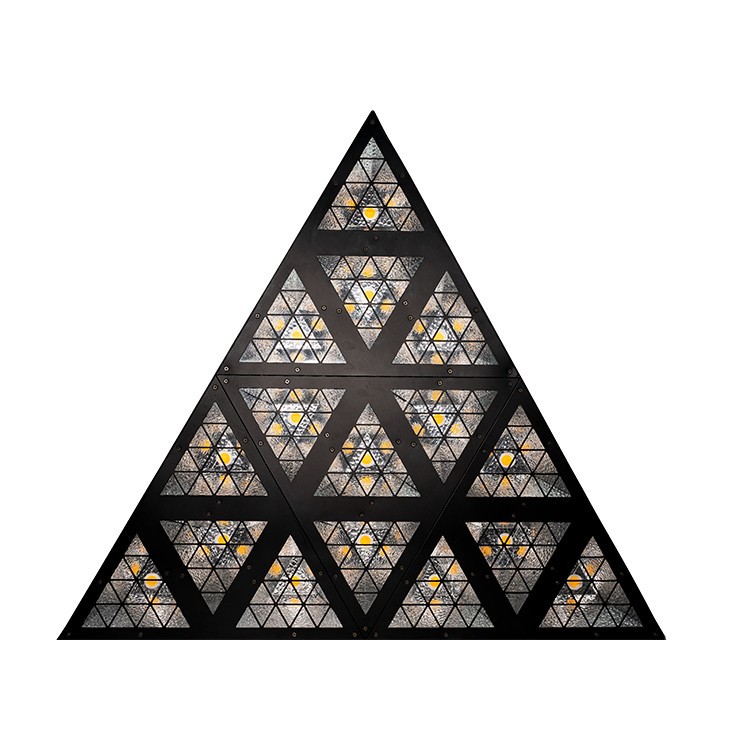

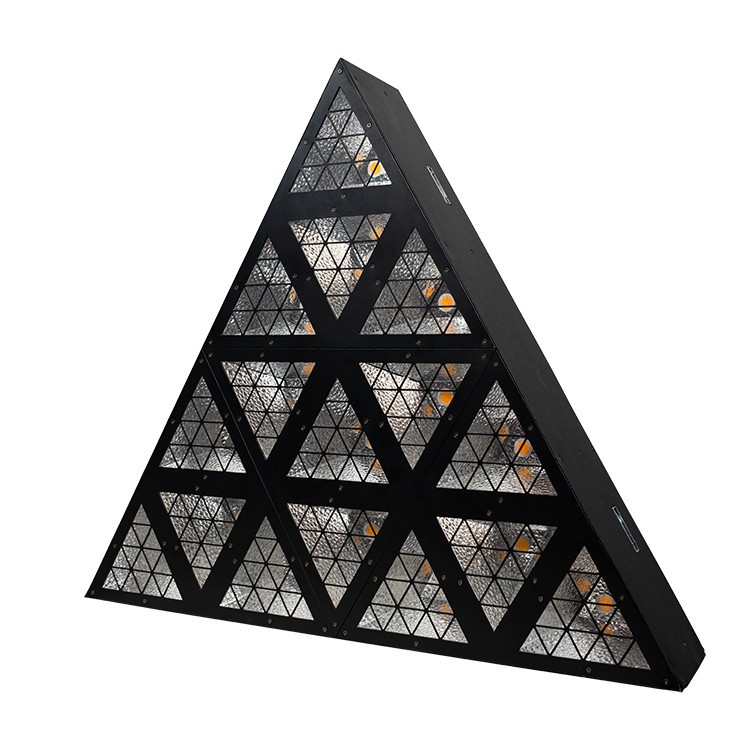

LED Triangle Stage Light
Details
Model：NST-S250
Brand：New Start
Country of origin：China
LED Triangle Retro Light is a professional stage decoration light that emphasizes a retro atmosphere. Its core features revolve around "triangle array light effect + retro texture output". It features a triangular array of lamp heads, with multiple sets of high and low color temperature LED beads. The main light can achieve a wide range of color temperature adjustment from 1500K to 5500K, and the auxiliary light creates an enveloping atmosphere with 3200K warm light, and outputs soft and retro-textured light through the mixed light system; It supports 0-100% linear dimming, 25Hz adjustable stroboscopic, and can achieve static coloring, dynamic light gradient effects, etc. Compatible with DMX512, master-slave, voice-controlled, auto-driven and other control modes, it can achieve fine lighting arrangement through the console, and also enable automatic program adaptation scene with one click. The overall functionality combines atmosphere rendering and dynamic effects, and is suitable for retro bars, themed parties, small performance stages and other scenarios as background decorative lights or ambient auxiliary lights to enhance the retro tone of the space.
Category
LED Effect Light
Share to

Guangdong New Start Lighting Co., Ltd. is one of the leading manufacturers and suppliers of led triangle stage light in China. With abundant experience, we warmly welcome you to wholesale customized lighting products at competitive price from our factory. Contact us for pricelist.



Technical Specifications

Product Name: LED Triangle Retro Light

Product model: NST-S250

Optical System

  • Light source: Main light is 16 30W LED modules, auxiliary light is 576 0.3W LED beads
  • Color temperature: Main light color temperature 1500K+5500K, radiant color temperature 3200K
  • Service life: 80,000 hours
  • Optical system: the luminaire provides a uniformly arranged triangular array of light-emitting surfaces, and the transparent cover plate is made of high-strength engineering plastic and is compactly arranged. A high-temperature resistant aluminum reflective flaky mixed light system is used, and the reflective surface does not shine directly.

Effect

  • Features: Dye + flash + auxiliary light
  • Color system: 3200K surround effect with color mixing to achieve 1500K-5500K color temperature variation
  • Dimmer: 0-100% linear
  • Dimming system, 32-bit fine dimming
  • Stroboscopic frequency: 1-30hz, no flicker

Voltage And Power

  • Total power: 850W
  • Input voltage: AC90V-250V, 50-60HZ

Control System

  • 4 touch keys
  • Control mode: master-slave, auto-run mode, DMX512 control mode, voice control mode, RDM function

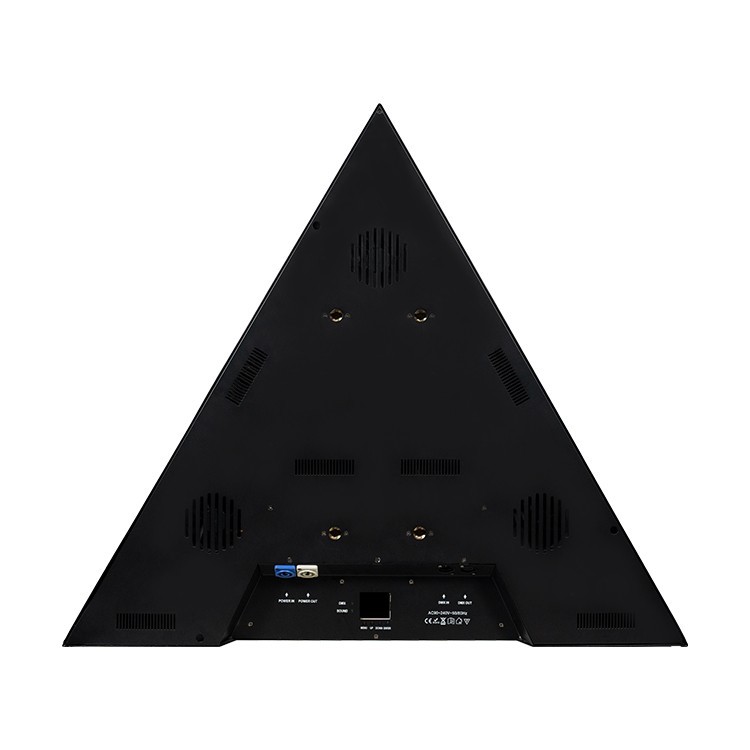

Electrical And Interface

  • DMX Link:3-pin DMX XLR power connection power input and output
  • Protection class: lP20 for indoor use
  • Body structure: high-toughness high-strength aluminum frame, functional modular design, dual handles on the back, black appearance

Light Specification

  • Length: 800mm (31.49")
  • Width: 148mm (5.82")
  • Height: 690 mm (27.16")
  • Net weight: 8.3 kg (18.26lbs)

Working Environment

  • Maximum ambient temperature: 40°C
  • Minimum operating temperature: -20°C
  • Maximum surface temperature: 60°C

Certification

  • ISO9001 Quality Management System certification
  • CE certification

Installation

  • Can be installed horizontally or vertically
  • Universal operating position
  • 2 fixed folding light hooks for 50mm light stands
  • Safety rope connection hole

Factory Configuration

  • Electronic Instruction Manual
  • Power cord, signal line
  • 2 fixed folding light hooks for 50mm light stands
