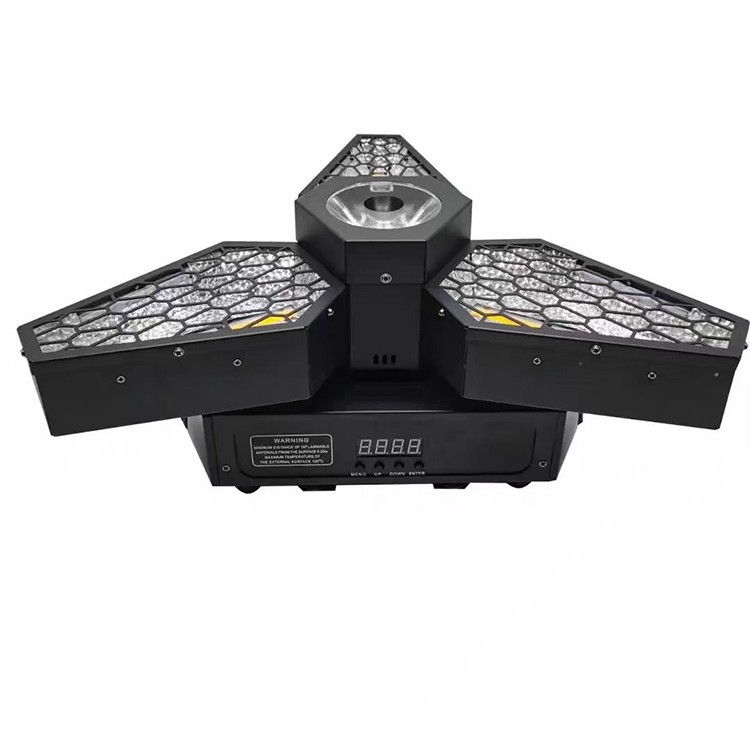

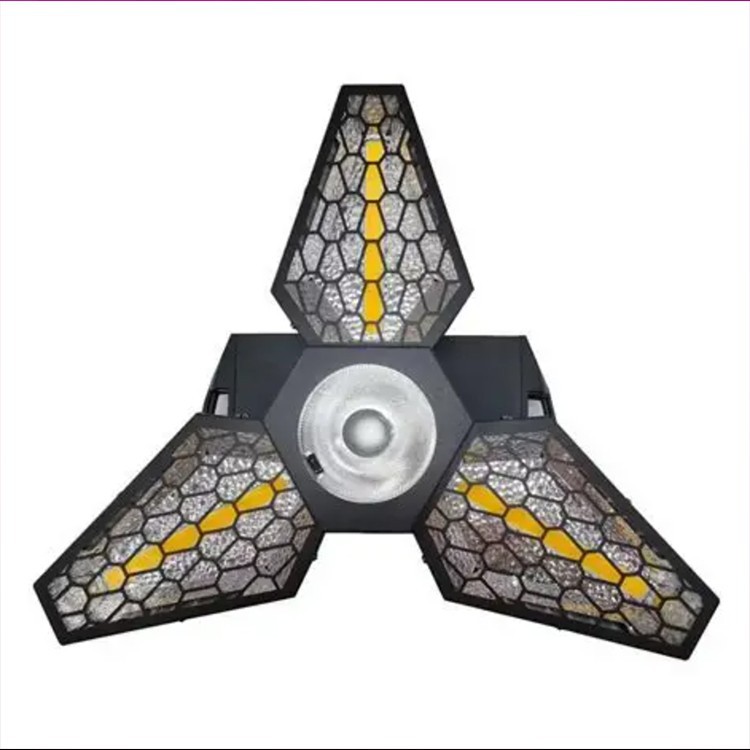

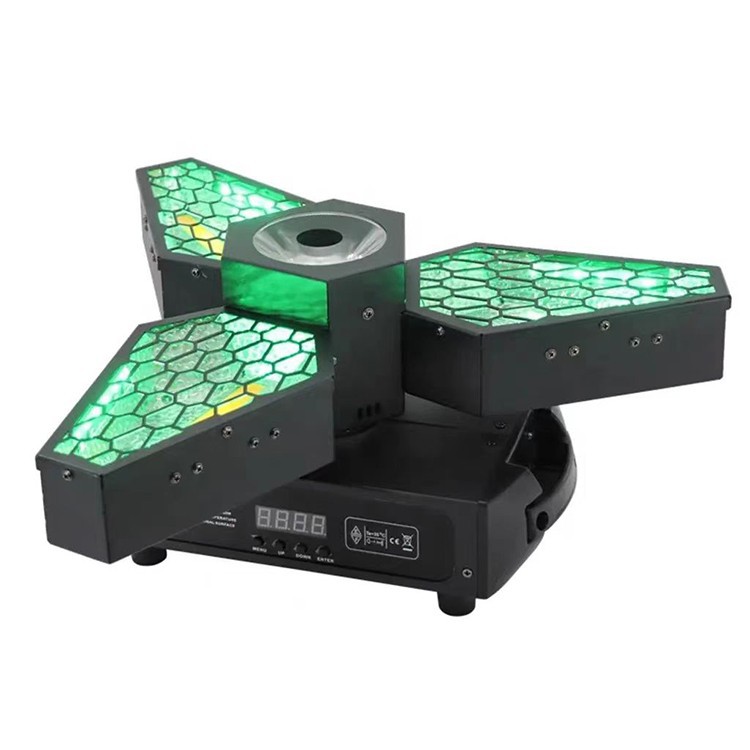

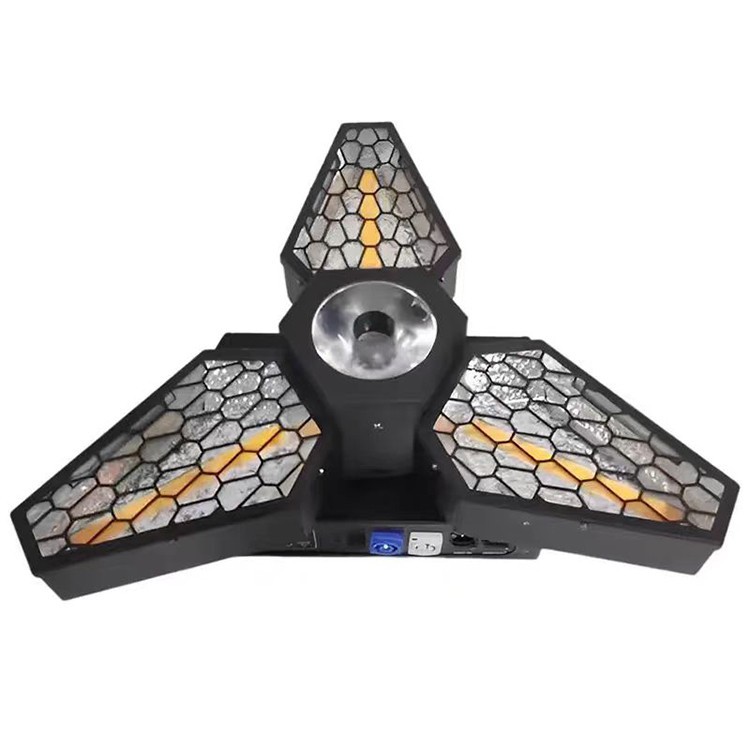

LED Stage Maple Leaf Retro Stage Light

Guangdong New Start Lighting Co., Ltd. is one of the leading manufacturers and suppliers of led stage maple leaf retro stage light in China. With abundant experience, we warmly welcome you to wholesale customized lighting products at competitive price from our factory. Contact us for pricelist.

• Design and material: With a maple leaf-shaped appearance, paired with a retro-textured ABS lampshade and an aluminum alloy body, it is both decorative and durable;
• Composite light source: Integrated with 3 metal halide main lights (warm yellow retro light) +36 RGB auxiliary lights (ambient color) +1 beam light (sharp light effect) for multi-dimensional light layer output;
• Light effect function: Supports 360° horizontal rotation, 1-25Hz adjustable stroboscopic, beam Angle coverage 12° (main light), 25° (auxiliary light), 5° (beam light), color rendering index ≥85;
• Control adaptation: Compatible with DMX512, voice-controlled, auto-program and other modes, equipped with 3-pin XLR interface, compatible with professional console or automatic scene;
• Practical design: Built-in silent cooling fan, supports AC100-240V wide voltage range, IP20 protection (for indoor use only).

• Product Name: LED Stage Maple Leaf Retro Stage Light
• Product model: NST-0360R

• Light source: 3 60W metal halide main lights + 36 0.5W RGB auxiliary light beads +1 40W beam light
• Beam angle: 12° for the main light, 25° for the auxiliary light, 5° for the beam light
• Color temperature range: Main light 2700K (warm yellow retro tone)
• Color rendering index: Ra≥85
• Service life: 80,000 hours

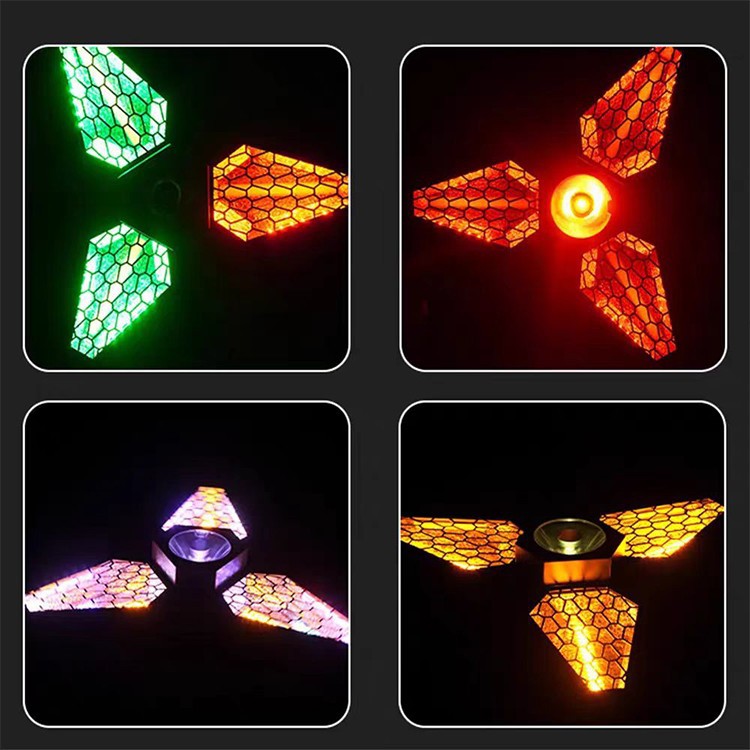

• Features: Full-color color mixing, retro dyeing, 360° horizontal rotation, 1-25Hz stroboscopic.
• Dimmer: 0-100% linear dimming system, 32-bit fine dimming.
• Stroboscopic frequency: 1-30Hz, no flicker

• Total power: 250W
• Input voltage: AC90V-250V, 50-60HZ

• 4 touch keys
• Control mode: master-slave synchronous, independent mode, DMX512 control mode, voice control mode, RDM function
• DMX channels: 15CH/20CH/26CH

• DMX Link: 3-pin DMX XLR
• Power connection power input and output
• Protection level: lP20 for indoor use
• Body structure: aluminum alloy body + ABS retro maple leaf-textured lampshade, black appearance

• Length: 560mm (22.04")
• Width: 500mm (19.68")
• Height: 300mm (11.81")
• Net weight: 8kg (17.6lbs)

• Maximum ambient temperature: 40°C
• Minimum operating temperature: -20°C
• Maximum surface temperature: 60°C

• ISO9001 Quality Management System certification
• CE certification

• Can be installed horizontally or vertically
• Universal operating position
• 2 fixed folding light hooks for 50mm light stands
• Safety rope connection hole

• Electronic Instruction Manual
• Power cord, signal line
• 2 fixed light hooks for 50mm light stands
