Guangdong New Start Lighting Co., Ltd. is one of the leading manufacturers and suppliers of outdoor 20w rgb laser light in China. With abundant experience, we warmly welcome you to wholesale customized lighting products at competitive price from our factory. Contact us for pricelist.
Main Features
- Optical platform, optical bracket, laser-specific lens, laser-specific aluminum chassis
- (Features: Good heat dissipation and corrosion resistance)
- Water resistance rating :IP65
- Built-in temperature controller automatically adjusts the temperature
Technical Specifications

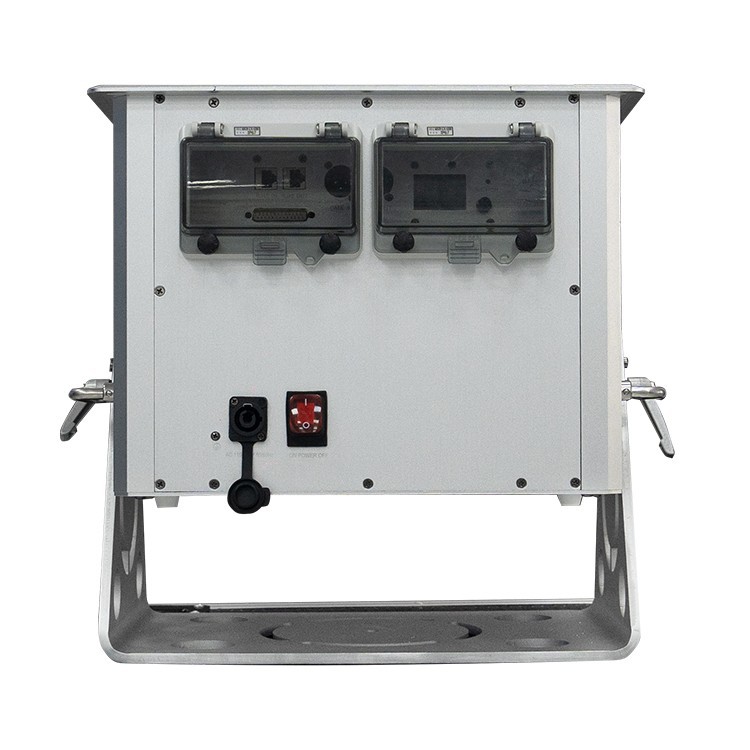

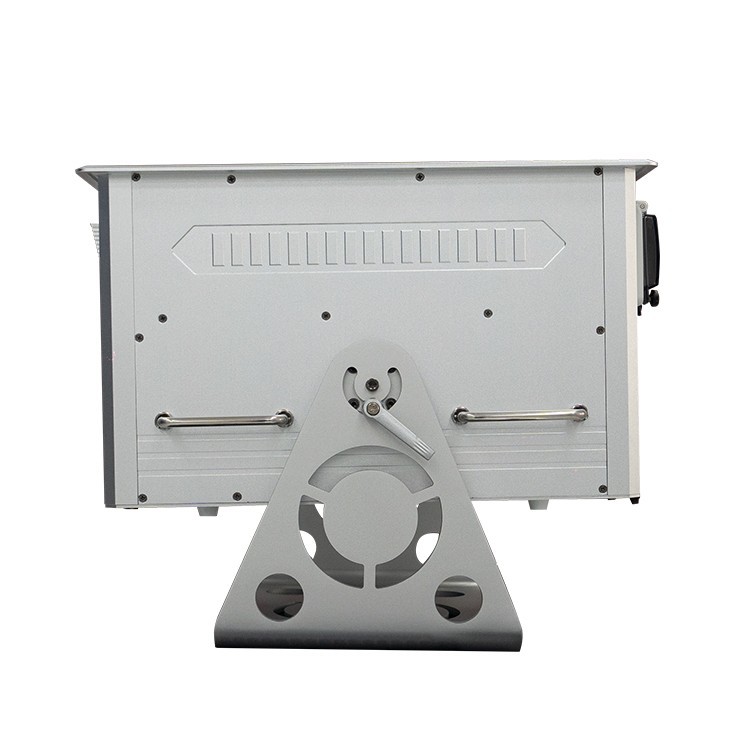

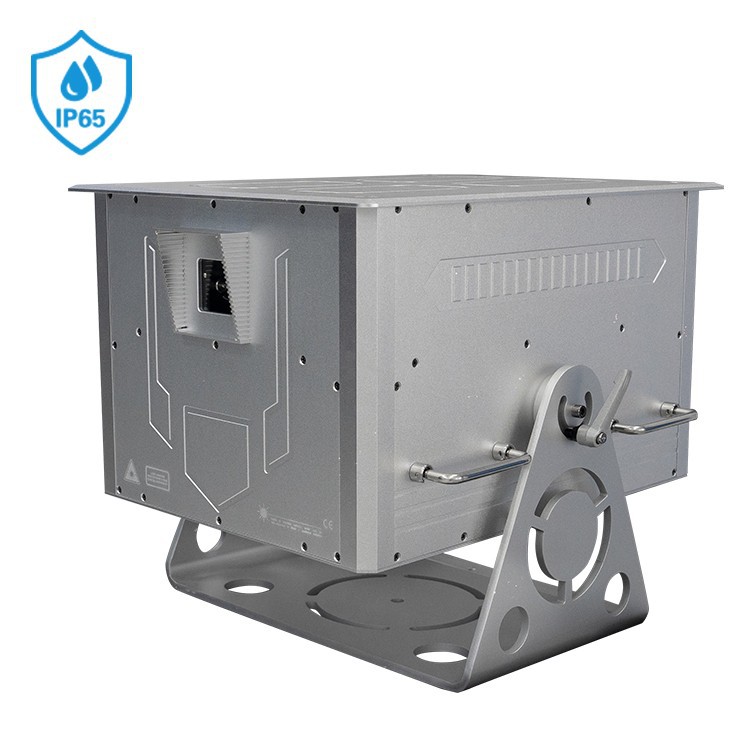

- Product Name: Outdoor 20W RGB Laser Light
- Product Model: NST-30L
- Waterproof Grade:IP65
Light Source
- Laser: All-solid-state semiconductor laser
- Light source lifespan: 20,000 hours
- Galvanometer Angle :60° Standard scanning unit and scanning drive circuit
- Divergence Angle :<1.2MRAD
- Scan speed :40KPPS
Controls And Programs
- Control modes: Voice control/automatic /DMX512 control/master-slave synchronization, ILDA interface
- (Can be connected to ISHOW software and imported PANGOLIN PANGOLIN, Fire Phoenix software)
Electrical And Interfaces
- Self-adaptive power supply
- Input voltage range: AC85-240V 50/60HZ
- Power: 300W
- Power connector input
- DMX/RDM signal input/output: Waterproof three-pin XLR socket
Device Size And Weight
- Length: 530mm (20.9")
- Width: 450mm (17.7")
- Height: 410mm (16.1")
- Net weight: 28kg(61.6lbs)
Working Environment
- Maximum ambient temperature: 40°C
- Maximum surface temperature of the equipment: 65°C
- Minimum operating temperature: -20°C
Installation
- It can be installed horizontally or vertically
- Universal operating position
- The stand has one keyhole
- Safety rope connection point
Factory Configuration
- Power Cable line
- DMX512 Cable line
- Instruction Manual
- Hooks for 50mm truss
- Use manual 1piece
