Guangdong New Start Lighting Co., Ltd. is one of the leading manufacturers and suppliers of 6 eyes rgb laser light in China. With abundant experience, we warmly welcome you to wholesale customized lighting products at competitive price from our factory. Contact us for pricelist.
Main Features
- Control and regulation: Equipped with a DMX512 signal interface, it supports precise console programming control, allowing for free adjustment of beam swing Angle, speed, and color switching frequency; It also has a variety of preset lighting programs built-in, supports voice control mode, and can automatically change the beam shape to the rhythm of the music.
- The housing features master-slave synchronization, allowing multiple devices to work together to create a large-scale laser matrix effect; The body is designed to be portable and can be hung, placed flat or fixed on a stand. It is suitable for various performance occasions such as bars, concerts and annual meetings.
Technical Specifications

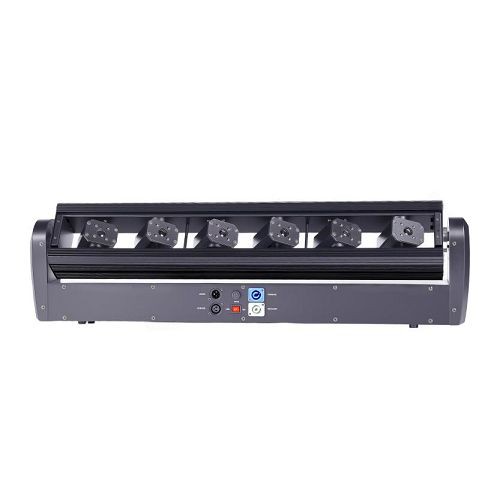

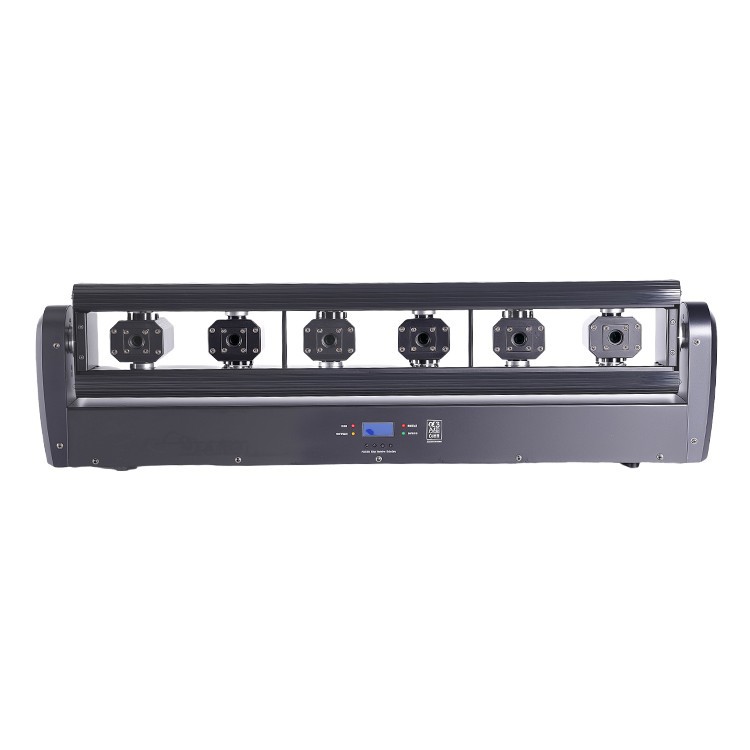

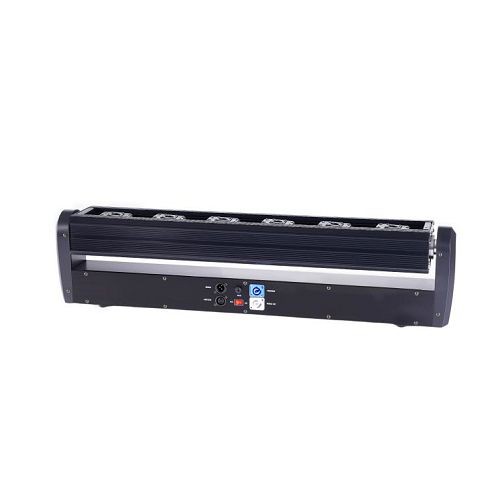

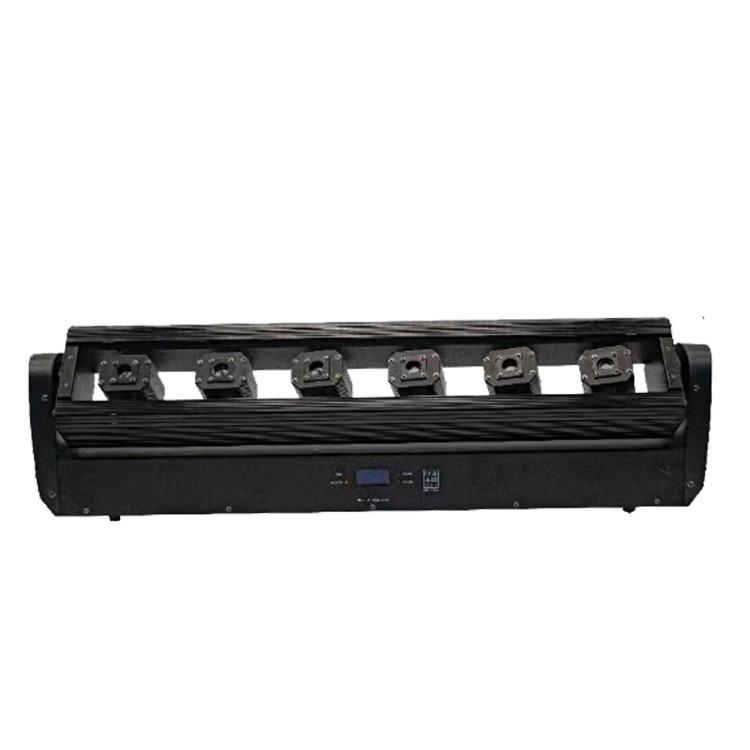

- Product Name: 6 Eyes RGB Laser Light
- Product model: NST-RGB6L
- Waterproof Grade:IP20
- Laser: Semiconductor-pumped laser
- Laser light source power: 3000mW (Red R200MW, Green G100MW, Blue B200MW)
- Laser modulation: TTL
- Laser wavelength: 638nm
- Laser system: Precision stepper motor scanning system, Y-axis swing 240 degrees, X-axis laser head swing.
- Laser effects: Laser skynet beam performance, laser line effect, laser stroboscopic effect, stream stroboscopic effect, etc
- Laser lifetime 10,000 hours
- Output power: 180W
- Projection distance: 30 meters
- Projected pattern area: 180 square Pattern size adjustable
- Cooling method: Thickened aluminum plate with high-speed air cooling
Controls And Procedures
- 4 mechanical buttons
- Control panel: LED display
- Control mode: Voice-controlled, auto-driven, DMX512, master-slave effect
- DMX channels :11/26/38 channels are optional
Electrical And Interfaces
- Input voltage range: 180-240V to 50/60Hz
- Power: 180W
- Power connector input: Blue and white audio socket.
- DMX/RDM signal input/output: Three-core XLR head male and female sockets.
Device Size And Weight
- Length: 840mm (33.07 ")
- Width: 90mm (3.54"
- Height: 240mm (9.44 ")
- Net weight: 10.12kg(22.26lbs)

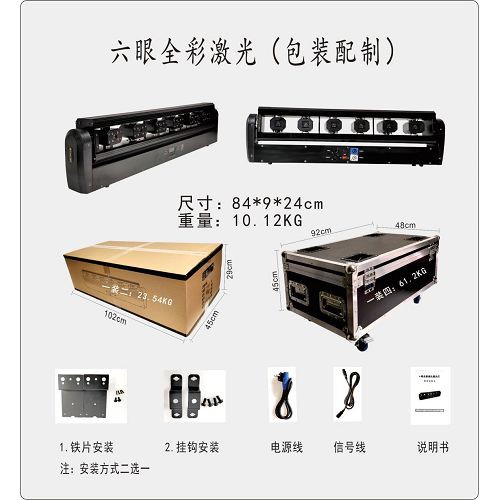

Box Packing Size And Weight 1in1
- Length: 990mm(38.97 ")
- Width: 220mm(8.66 ")
- Height: 270mm(10.62 ")
- 2in1 Box Packing Size: 1020*450*290/mm (gross weight: 23.54KG/51.788lbs)
- 4in1 Flycase Packing Size: 450*920*480/mm (gross weight 61.2KG/122.4lbs)
- Iron sheet: 930mm(36.61 ")
- Hook: 510mm(20.07 ")
Work Environment
- Maximum ambient temperature: 40°C
- Maximum surface temperature of the equipment: 65°C
- Minimum operating temperature:-20°C
Installation
- It can be installed horizontally or vertically
- Universal operating position
- The bracket has two lock holes
- Safety rope connection points
Factory Configuration
- One pcs six-eye full-color laser light
- Power cord 1.5m 2*2.5 flat blue audio plug European plug power cable 1
- Signal cable 3 m three-core shielded DMX512 signal cable 1
- Instruction manual 1pcs

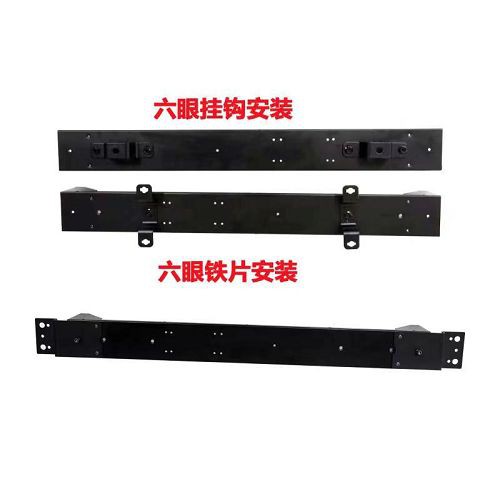

- Hook mounting or iron sheet mounting
Accessories
Products Description
Sample & Testing
Q1: Can I get a sample before placing a bulk order?
A1: Yes, we provide sample services. You can order 1-5 samples to test the quality, performance and compatibility of our products. The sample fee is slightly higher than the bulk price (including material cost and processing cost), and the sample fee can be deducted from the bulk order payment if you place a formal order later. The lead time for samples is 3-5 working days.
Q2: Can I send my own samples for you to replicate?
A2: Yes. You can send your sample to our factory, and our R&D team will analyze its structure, components and performance, then replicate it according to your requirements. We will ensure that the replicated product is consistent with your sample in terms of quality and performance, and can also optimize it based on our professional experience if needed.
