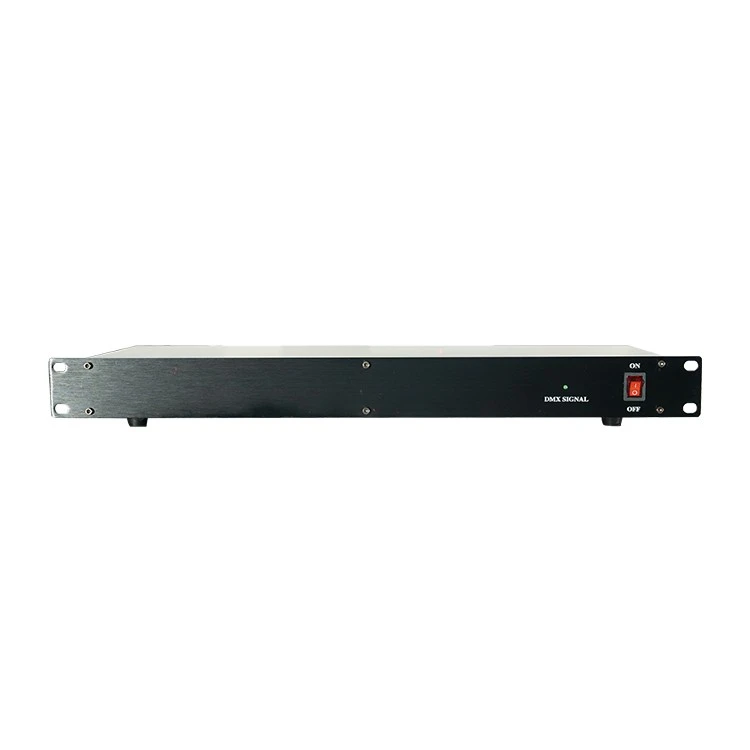

8CH DMX512 Splitter Controller

Guangdong New Start Lighting Co., Ltd. is one of the leading manufacturers and suppliers of 8ch dmx512 splitter controller in China. With abundant experience, we warmly welcome you to wholesale customized lighting products at competitive price from our factory. Contact us for pricelist.

The core feature of the stage eight-channel signal amplifier (commonly referring to the DMX512 protocol) is 1 DMX input + 8 independent isolated amplification outputs, with signal shaping/extension, fault isolation and multi-device expansion capabilities, suitable for the high-reliability wiring requirements of stage lighting systems. Here are the detailed features:

Core Features and Interfaces:

• Signal input/Output configuration: Standard 1 DMX512 input (three-core XLON head), model includes 1 pass-through output, 8 independent amplification driver outputs, compatible with multi-zone group cabling.
• Signal amplification and shaping: Amplify and shape the DMX512 signal to extend transmission distance (beyond the standard 1200-meter limit) and increase bus carrying capacity (up to 32 standard DMX devices per channel).
• Photoelectric isolation protection: Independent photoelectric isolation between input and output and each output channel (isolation voltage often > 1000V) to prevent fault spread, protect console interfaces, and enhance system reliability.
• Status and power supply: Each output is equipped with an independent signal indicator light for easy fault location; Mostly wide voltage supply (AC100V-240V), suitable for different site power environments.

• Fault isolation mechanism: A single fault does not affect other channels, preventing system paralysis, suitable for complex cabling scenarios on large stages.
• Anti-interference capability: The high-end model has an anti-static and anti-surge design to adapt to the complex electromagnetic environment of the stage.
•  Protocol compatibility: Mainstream support for DMX512/1990, partially compatible with RDM remote device management for system maintenance.
•  Physical features: Mostly 19-inch rack-mounted specifications, robust structure, some with independent transformer power supply for stable operation.

• Address signal attenuation and underload caused by the abundance of lighting fixtures and complex wiring on large stages.
• Group control and fault isolation reduce the overall risk of the system and simplify the debugging and maintenance process.
• Compatible with all kinds of DMX512 devices such as LED lights and computer lights, and compatible with mainstream lighting consoles.

• Product Name: 8CH DMX512 Splitter Controller
• Product model: NST-XH8L
• Waterproof Grade:IP20
• Input power : 15W
• Input Voltage: AC90V to 240V, 50Hz/60HZ,

• Length: 480 mm(18.9")
• Width: 170mm(6.69")
• Height: 45mm (1.77")
• Net weight :1.7kg (3.74lbs)

• Maximum ambient temperature: 40°C
• Minimum operating temperature: -20°C
• Maximum surface temperature: 65°C

• ISO9001 Quality Management System Certification
• CE certification
