18x4W LED Wall Wash Light
Details
Model：NST-XQ1804
Brand：New Start
Country of origin：China

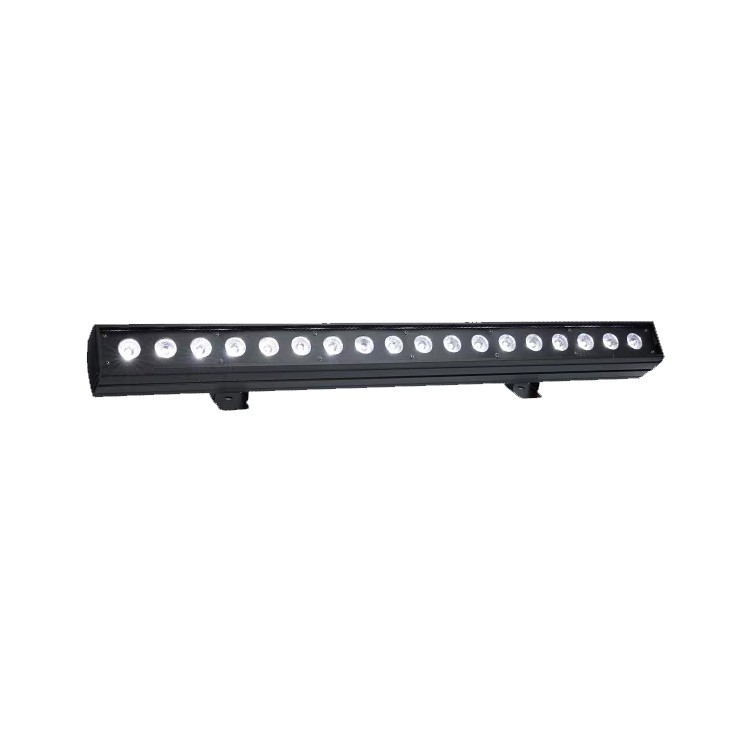

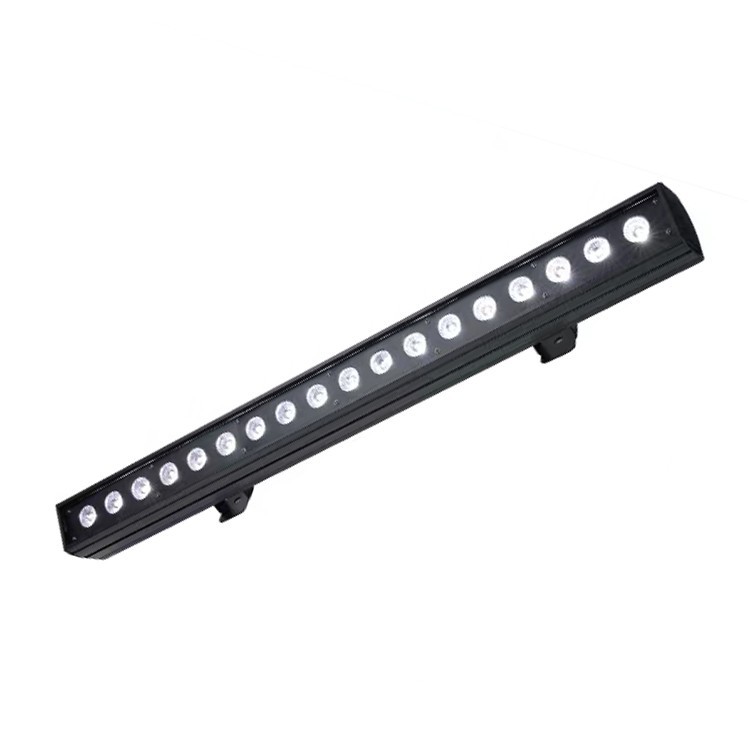

The 18-watt 4-watt wall-washing lights are designed specifically for stage and landscape lighting, featuring a linear arrangement of multiple LED beads. The lamp body is made of metal and comes with an adjustable mounting bracket for easy fixation and adjustment of the illumination Angle. It supports RGBW four-color mixed light, single color (such as UV violet, blue) and other light modes, as well as remote dimming, running light effects and other functions. It is used for coloring stage background walls, outlining, or creating ambient lighting effects in conjunction with performances. It is also suitable for indoor performances, banquet halls, bars and other venues to achieve dynamic or static lighting decoration.
Category
LED Effect Light
Share to

Guangdong New Start Lighting Co., Ltd. is one of the leading manufacturers and suppliers of 18x4w led wall wash light in China. With abundant experience, we warmly welcome you to wholesale customized lighting products at competitive price from our factory. Contact us for pricelist.



Main Features

  • Dimming: Precise linear dimming 0-100%, 16-bit dimming
  • Controls: DMX512, main/secondary unit, voice-controlled, auto-drive mode
  • Protection class: IP20
  • Dyeing function: Each 4-watt LED bead provides high-brightness output, 18 linearly arranged to form a continuous light band for uniform wall-washing lighting and large area color dyeing on walls, building Outlines, and landscape facades.
  • Color mixing function: Supports RGBW color mode to achieve monochromatic constant light, color gradient, color jump, color mixing and other effects to meet the atmosphere creation needs of different scenarios.

Technical Specifications

  • Product Name: 18x4W LED Wall Wash Light
  • Product Model: NST-XQ1804
  • Waterproof Grade: IP20
  • Light source: 18x4W 4 in 1 lamp beads (red, green, blue, white)
  • LED lifetime: 80,000 hours

Control And Program

  • Control: DMX512 self-propelled/voice-controlled

Color Mixing

  • Linear mixing of four primary colors - red, green, blue, and white - to create a variety of colors.
  • Other effects:Monochromatic always-on, color gradient, jump, color mixing, dyeing, horse running, etc.

Electrical And Interface

  • Input voltage range: AC90-240V to 50/60HZ
  • Power: 100W
  • Power connector input: One-piece power cord, hand-in-hand 3 meters.
  • DMX/RDM signal input/output: One-piece signal cable hand-in-hand 3 meters

Device Size And Weight

  • Length: 1000mm (42.13")
  • Width: 70 mm (2.75")
  • Depth: 130mm (5.11")
  • Net weight: 3kg (6.6lbs)

Working Environment

  • Environment: Dry/wet
  • Maximum ambient temperature: 40°C
  • The maximum surface temperature of the equipment: 65°C
  • Minimum operating temperature :-20°C

Certification

  • Certified with ISO9001 quality management system
  • CE certified

Installation

  • Install the light hooks on both sides to secure them
  • Place horizontally against the wall
  • Hang upside down against the wall

Factory Configuration

  • One electronic copy of the manual

Optional Accessories

  • Aviation case
