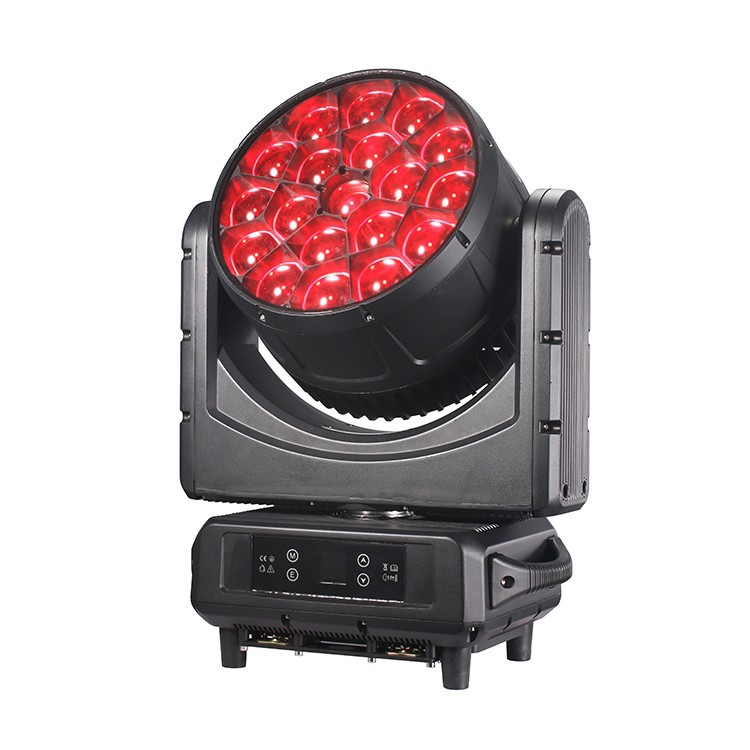

Outdoor 19x40W LED Moving Head Wash Light

Guangdong New Start Lighting Co., Ltd. is one of the leading manufacturers and suppliers of outdoor 19x40w led moving head wash light in China. With abundant experience, we warmly welcome you to wholesale customized lighting products at competitive price from our factory. Contact us for pricelist.

• High power hybrid light source and long lifespan:Featuring 19 40W quad-in-1 RGBW LED beads with a total power of up to 1000W, full color and even color mixing. The lifespan of the leds is up to 80,000 hours, significantly reducing maintenance costs.
• Professional outdoor protection and robust structure:Up to IP66 protection, dustproof and resistant to strong water spray, designed for all-weather use both indoors and outdoors. With a robust die-cast aluminum housing, it ensures stability and reliability in harsh environments.

• Seamless splicing dial with front variable direction stepless rotating dial, in combination with aspheric lenses, for smooth linear focusing from 0° to 60°.
• Supports single-chip dot control of the light beads for pixel-level precise pattern and color editing, creating extraordinary "color macro" effects.

• Combining beam mode, dye mode, effect mode (vortex, kaleidoscope), and multiple programs such as stroboscopic and horse running.
• Supports CTO color temperature correction (2800K-8500K) to meet the color temperature requirements of different scenarios.
• 0-100% linear electronic dimming, stroboscopic speed up to 1-25 times per second, outstanding dynamic effect.

• Equipped with a color display for intuitive operation.
• Supports multiple control modes such as DMX512, voice control, auto-drive, and master-slave.
• It offers multiple channel modes such as 21/23/35/78/92/97/99CH, meeting all control requirements from simple to complex.
• Safety certification: The product has obtained ISO9001 quality management system certification and CE safety certification, ensuring quality and safety.

• Product Name: Outdoor 19x40W LED Moving Head Wash Light
• Product Model: NST-F1940

• Light source :19x40W four-in-one LED beads
• LED expected lifespan: 80,000 hours
• Data provided by the light source supplier

• Advanced optical systems ensure clear and wide beam and staining effects
• 8x efficient zoom optical system
• Spot Angle: 0°-60°

• 4 touch keys
• Control panel: LCD display
• Control protocols: DMX512, RDM, Art-net, sACN
• Update the software via the DMX connection
• X-axis/Y-axis: 16-bit precision scanning
• Electronic dimming: 0-100% linear dimming

• X-axis rotation Angle: 540°
• Y-axis rotation Angle: 220°
• X-axis/Y-axis position automatic correction

• Self-adaptive power supply
• Input voltage range: AC100V-240V 50-60Hz
• Power: 800 W

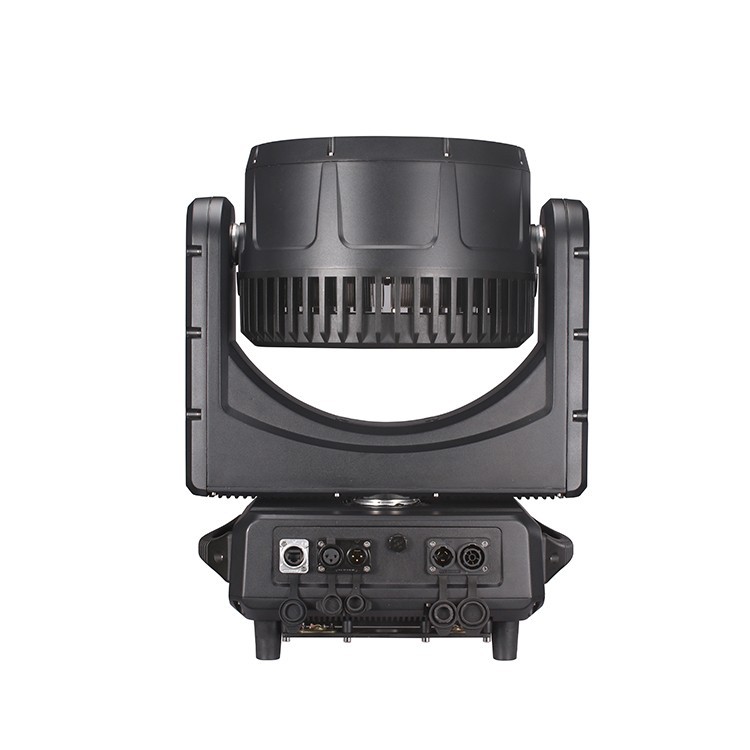

• Power socket: Power connector input/output
• DMX/RDM signal input/output: Three-core XLR socket

• Length: 410 mm (16.1")
• Width: 275 mm (10.8")
• Height: 425mm (16.7")
• Net weight: 17.0 kg (37.4 lbs)

• Length: 530 mm (20.9")
• Width: 420mm (68.5")
• Height: 510 mm (20")
• Net weight: 20.1kg (44.2 lbs) (1 per 1 standard)

• Maximum ambient temperature: 40°C
• Minimum operating temperature: -20°C
• Maximum surface temperature: 75°C
• Protection class: IP65

• CE certification
• ISO9001 Quality Management System certification

• It can be installed horizontally or vertically
• Universal operating position
• 2 Fixed folding light hooks for 50mm light stands
• Safety rope connection hole

• Electronic Instruction Manual
• Power cord
• 2 Fixed folding light hooks for 50mm light holders

• Flight case: 1 for 2 standard
