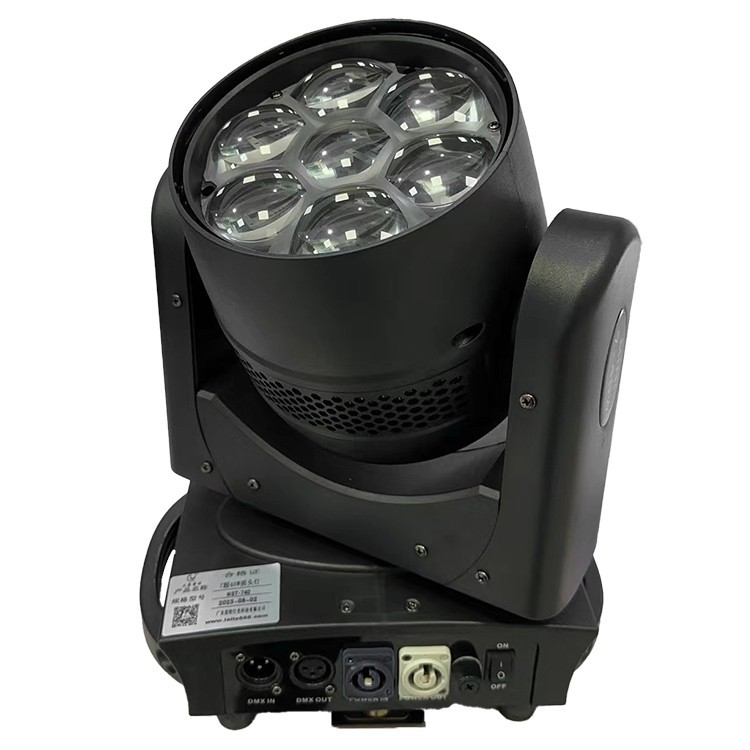

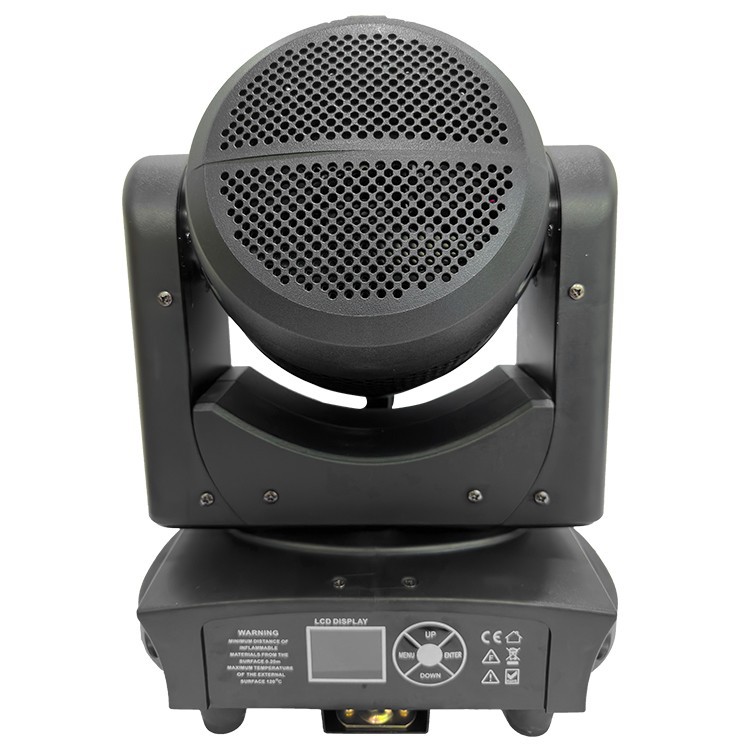

7x40W LED Moving Head Wash Light

Guangdong New Start Lighting Co., Ltd. is one of the leading manufacturers and suppliers of 7x40w led moving head wash light in China. With abundant experience, we warmly welcome you to wholesale customized lighting products at competitive price from our factory. Contact us for pricelist.

High-power hybrid light source with ultra-long lifespan:

• Featuring 7 high-efficiency 40W quad-in-1 RGBW LED beads with a maximum power of 300W, high luminous flux and uniform color mixing. The light source has a lifespan of up to 80,000 hours, significantly reducing long-term usage and maintenance costs.

Wide linear focusing and precise light control:

• Supports wide linear focusing from 4.5° to 45°, allowing for free and precise control of beam Angle and spot size for a wide range of applications.
• With single-chip dot control, each LED can be programmed independently to achieve pixel-level precision in color, brightness and pattern control, creating extraordinary dynamic graphics.

Full-featured Dynamic effects system:

• One color mode, beam mode, effect mode (vortex, kaleidoscope) in one.
• Supports CTO color temperature correction (2800K-8500K), allowing for flexible adjustment of color temperature according to the atmosphere of the scene.
• Built-in high-speed stroboscopic and dynamic programs, combined with the front mirror dial's infinitely variable rotation, create an ever-changing light and shadow effect.

Smart control and high compatibility:

• With a color display, parameter Settings are intuitive and convenient.
• Supports multiple control modes such as DMX512, voice control, and auto-drive, with strong applicability.
• Offers multiple DMX channel modes such as 23CH/35CH/51CH to meet different control depth requirements from basic to advanced.

Compact and efficient design

• Compact structure, fast and quiet operation, suitable for flexible deployment in Spaces of all sizes.
• With an efficient heat dissipation design, it ensures stability and reliability under high-intensity operation.

• Product Name: 7x40W LED Moving Head Wash Light
• Product Model: NST-F740

• Light source :7 x 40W four-in-one RGBW LED beads
• LED expected lifespan: 80,000 hours Data provided by the light source supplier

• Advanced optical systems ensure clear and wide beam and staining effects
• Spot Angle: 4.5° - 45° (linear focusing)
• Color temperature: 2800K - 8500K (adjustable)

• 4 touch keys
• Control panel: LCD display
• Control Protocol: DMX512, voice-controlled, self-propelled mode
• Update the software via the DMX connection
• X-axis/Y-axis: 16-bit precision scan
• Electronic dimming: 0-100% linear dimming

• X-axis rotation Angle: 540°
• Y-axis rotation Angle: 270°
• X-axis/Y-axis position automatic correction

• Self-adaptive power supply
• Input voltage range: AC100V-240V 50-60Hz
• Power: 500 W
• Power socket: Power connector input/output
• DMX/RDM signal input/output: Three-core XLR socket

• Length: 320 mm (12.6")
• Width: 230 mm (9.1")
• Height: 400 mm (15.7")
• Net weight: 7.8 kg (17.2 lbs)

• Maximum ambient temperature: 40°C
• Minimum operating temperature: -20°C
• Maximum surface temperature: 75°C
• Protection class: IP20

• CE certification
• ISO9001 Quality Management System certification

• It can be installed horizontally or vertically
• Universal operating position
• 2 Fixed folding light hooks for 50mm light stands
• Safety rope connection hole

• Electronic Instruction Manual
• Power cord
• 2 Fixed folding light hooks for 50mm light holders

• Flight case: 1 for 4 standard
• Rain cover: for outdoor use
