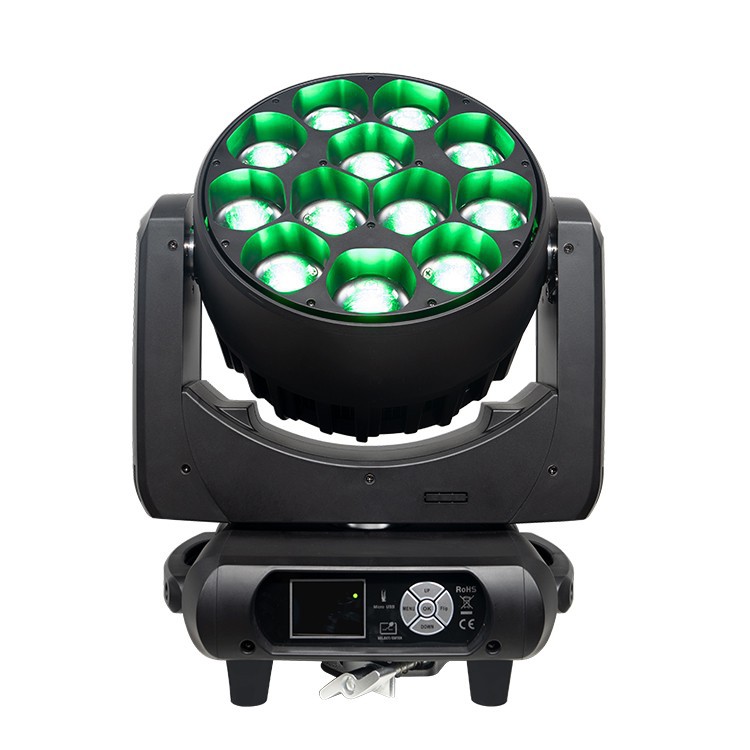

12x40W LED Moving Head Wash Light

Guangdong New Start Lighting Co., Ltd. is one of the leading manufacturers and suppliers of 12x40w led moving head wash light in China. With abundant experience, we warmly welcome you to wholesale customized lighting products at competitive price from our factory. Contact us for pricelist.

High power light source and wide color temperature:

• Featuring 12pcs 40W RGBW quad-in-one leds with a rated total power of 650W, outstanding brightness. Supports linear color temperature adjustment from 2500K to 10000K, precisely tailored to all needs from cozy scenes to high color temperature efficiency.

Precise focusing and beam control:

• With 6°-45° wide-angle linear focusing capability, the minimum 6° Angle can produce stunning focused beam effects, achieving seamless professional switching between beams and color.

Advanced Color and Dynamic Programming:

• Uniform RGBW stepless color mixing system with smooth color transitions and excellent saturation.
• Supports advanced color control features such as single dot control, loop control, gradient, jump, and marquel, providing lighting designers with pixel-level precision creative tools and extremely programmable.

Full-featured lighting effects and smart controls:

• 0-100% linear dimming with 1-25Hz high-speed electronic stroboscopic, delicate light output control with strong rhythm.
• Supports DMX512, random mode, voice-controlled mode, with input signal isolation protection, stable and reliable operation, strong anti-interference ability.

• Product Name: 12x40W LED Moving Head Wash Light
• Product Model: NST-1240

• Light source :12 x 40W brand RGBW leds
• LED expected lifespan: 80,000 hours Data provided by the light source supplier

• Advanced optical systems ensure clear and wide beam and staining effects
• Spot Angle: 6° - 45° (linear focusing)
• Color temperature: 2500K - 10000K (linearly adjustable)

• 4 touch keys
• Control panel: LCD display
• Control Protocol: DMX512, voice-controlled, self-propelled mode
• DMX Channel mode: Multiple channel modes to choose from
• Update the software via DMX connection
• X-axis/Y-axis: 16-bit precision scan
• Electronic dimming: 0-100% linear dimming
• Stroboscopic: 1-25 Hz high-speed electronic stroboscopic

• X-axis rotation Angle: 540°
• Y-axis rotation Angle: 270°
• X-axis/Y-axis position automatic correction

• Self-adaptive power supply
• Input voltage range: AC 90-260V, 50-60Hz (ultra-wide voltage adaptation)
• Power: 650W

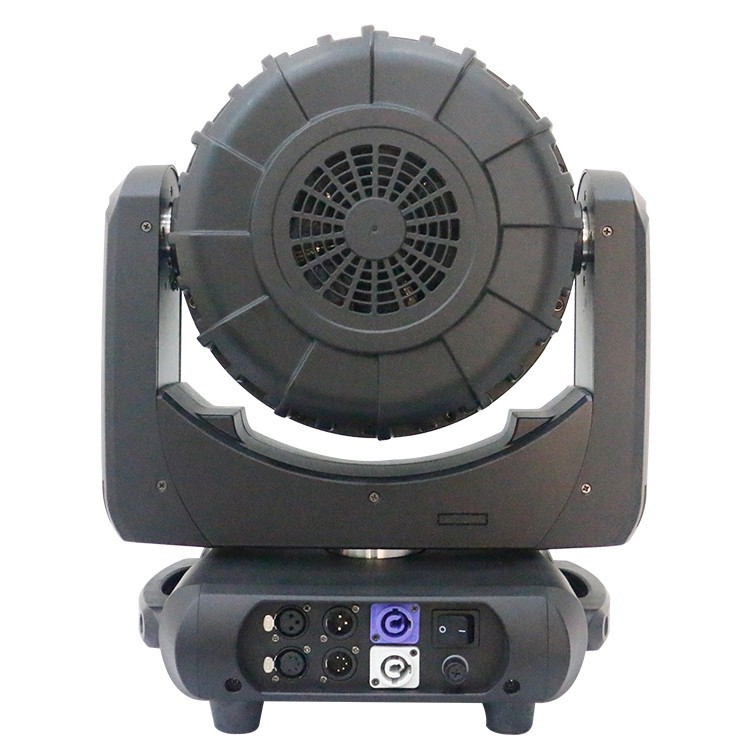

• Power socket: Power connector input/output
• DMX/RDM signal input/output: Three-core XLR socket

• Length: 395 mm (15.6")
• Width: 330 mm (13.0")
• Height: 540 mm (21.2")
• Net weight: 13.5 kg (29.7 lbs)

• Maximum ambient temperature: 40°C
• Minimum operating temperature: -20°C
• Maximum surface temperature: 65°C
• Protection class: IP20

• CE certification
• ISO9001 Quality Management System certification

• It can be installed horizontally or vertically
• Universal operating position
• 2 Fixed folding lamp hooks for 50mm lamp stands
• Safety rope connection hole

• Electronic Instruction Manual
• Power cord
• Two fixed folding lamp hooks suitable for 50mm lamp stands

• Flight case: 1 for 2 standard
• Rain cover: Dedicated
