Guangdong New Start Lighting Co., Ltd. is one of the leading manufacturers and suppliers of 19x40w bee eye led moving head wash light in China. With abundant experience, we warmly welcome you to wholesale customized lighting products at competitive price from our factory. Contact us for pricelist.
Main Features
High-power hybrid light source:
- Featuring 19 40W high-power RGBW quad-in-1 leds, with strong color output and uniform color mixing.
Wide linear focusing:
- With a wide linear zoom range of 4° to 60°, one lamp can achieve a smooth transition from focusing to flooding.
Precision Motion and Control:
- Rotation angles of 540° horizontally and 270° vertically, both with 16-bit precision control for precise and smooth positioning.
- A variety of DMX channel modes, including up to 24/26/38/81/95/100/102, are provided to meet the requirements of different control depths.
- It supports multiple trigger modes such as DMX512, master/slave, and voice control, making it highly versatile.
Professional-grade dimming and effects:
- 0-100% linear dimming, stroboscopic speed up to 0-20Hz, creating rich dynamic rhythm effects.
Intelligent operation design:
- Equipped with LCD color display, parameter Settings and status monitoring are clear at a glance. A temporary power-off lighting solution is provided to increase the flexibility of use.
Robust structure and certification:
- IP20 protection, suitable for indoor professional environments. The luminaire is structurally robust and has obtained relevant safety certifications.
Technical Specifications

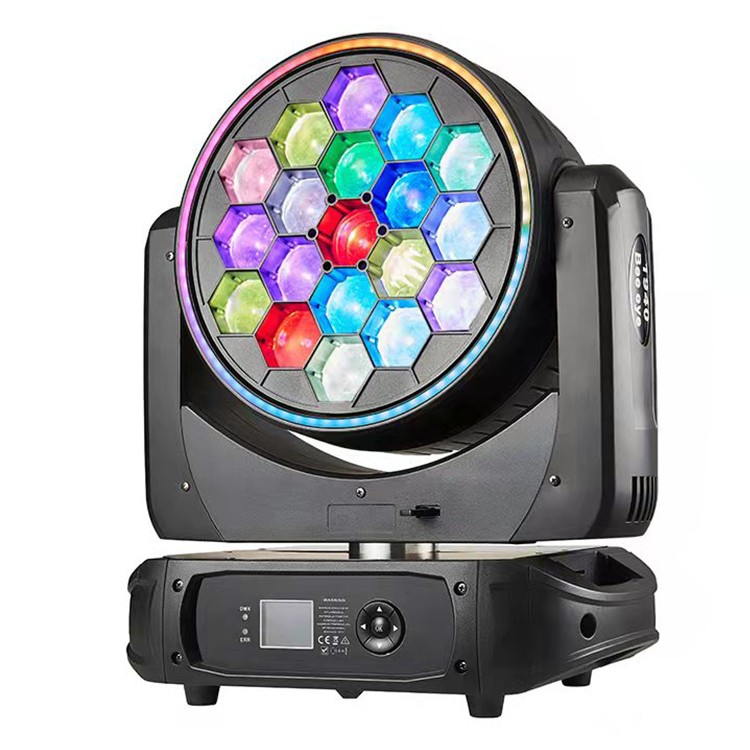

- Product Name: 19x40W Bee Eye LED Moving Head Wash Light
- Product Model: NST-1940
Light Source
- Light source :19 40W four-in-one LED beads
- LED expected lifespan: 80,000 hours * Data provided by the light source supplier
Optical Systems
- Advanced optical systems ensure clear and wide beam and staining effects
- 8x efficient zoom optical system
- Spot Angle: 4°-60°
Controls And Programs
- 4 touch keys
- Control panel: LCD display
- Control protocols: DMX512, RDM, Art-net, sACN
- Update the software via the DMX connection
- X-axis/Y-axis: 16-bit precision scan
- Electronic dimming: 0-100% linear dimming
X-axis/Y-axis
- X-axis rotation Angle: 540°
- Y-axis rotation Angle: 220°
- Automatic correction of X-axis/Y-axis positions
Electrical And Interface
- Self-adaptive power supply
- Input voltage range: AC100V-240V 50-60Hz
- Power: 800 W

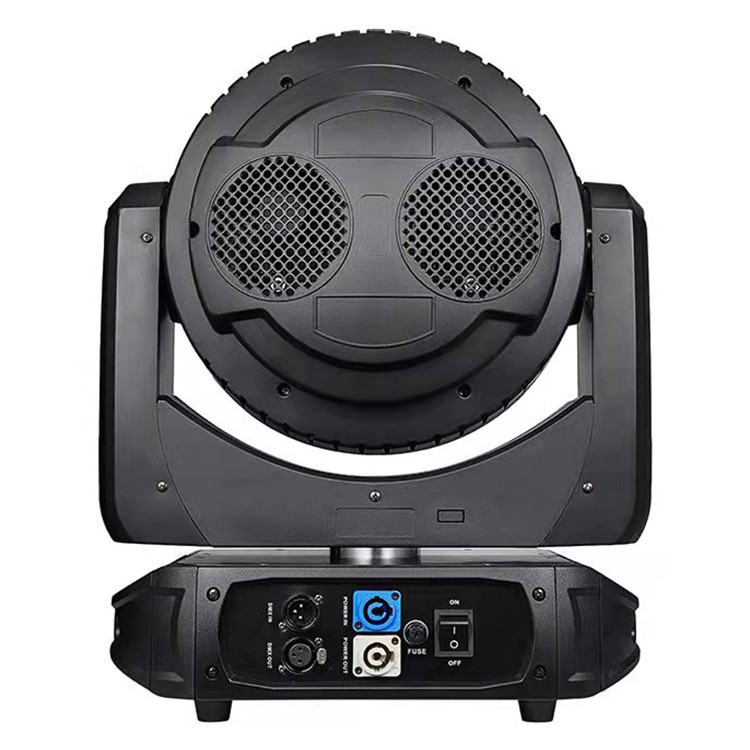

- Power socket: Power connector input/output
- DMX/RDM signal input/output: Three-core XLR socket
Light Size And Weight
- Length: 410 mm (16.1")
- Width: 275 mm (10.8")
- Height: 425mm (16.7")
- Net weight: 17.0 kg (37.4 lbs)
Carton Size
- Length: 530 mm (20.9")
- Width: 420mm (68.5")
- Height: 510 mm (20")
- Net weight: 20.1kg (44.2 lbs) (1 per 1 standard)
Working Environment
- Maximum ambient temperature: 40°C
- Minimum operating temperature: -20°C
- Maximum surface temperature: 75°C
- Protection class: IP20
Certification
- CE certification
- ISO9001 Quality Management System certification
Installation
- It can be installed horizontally or vertically
- Universal operating position
- 2 Fixed folding lamp hooks for 50mm lamp stands
- Safety rope connection hole
Factory Configuration
- Electronic instruction manual
- Power cord
- 2 Fixed folding lamp hooks for 50mm lamp holders
Optional Accessories
- Aviation case: 1 for 2 standard
- Rain cover: Special
