Guangdong New Start Lighting Co., Ltd. is one of the leading manufacturers and suppliers of 19x15w bee eye moving head wash light in China. With abundant experience, we warmly welcome you to wholesale customized lighting products at competitive price from our factory. Contact us for pricelist.
Main Features
High-efficiency hybrid light source and ultra-long lifespan:
- Featuring 19x15W RGBW four-in-one LED beads, high luminous efficiency, uniform and pure color mixing. The average lifespan of the light source is up to 80,000 hours, significantly reducing maintenance costs and replacement frequency for long-term use.
Wide linear focusing and dynamic effects:
- Supports wide linear electronic focusing from 4° to 60°, one light can meet a wide range of lighting needs from narrow-angle beams to wide-angle coloring.
- Built-in vortex, kaleidoscope and other professional dynamic effects, combined with the front variable direction stepless rotating mirror wheel, can create continuously changing, visually powerful light and shadow patterns.
Precise color control and light effects capabilities:
- Supports a wide linear color temperature adjustment from 2500K to 8000K, easily matching any scene atmosphere requirements from warm tones to bright cool white.
- With 0-100% linear electronic dimming and 1-25 times/second high-speed stroboscopic capability, and with instant dark field function, it ensures rapid response of the light gate without delay and precise control of the on/off rhythm of every beam of light.
Technical Specifications

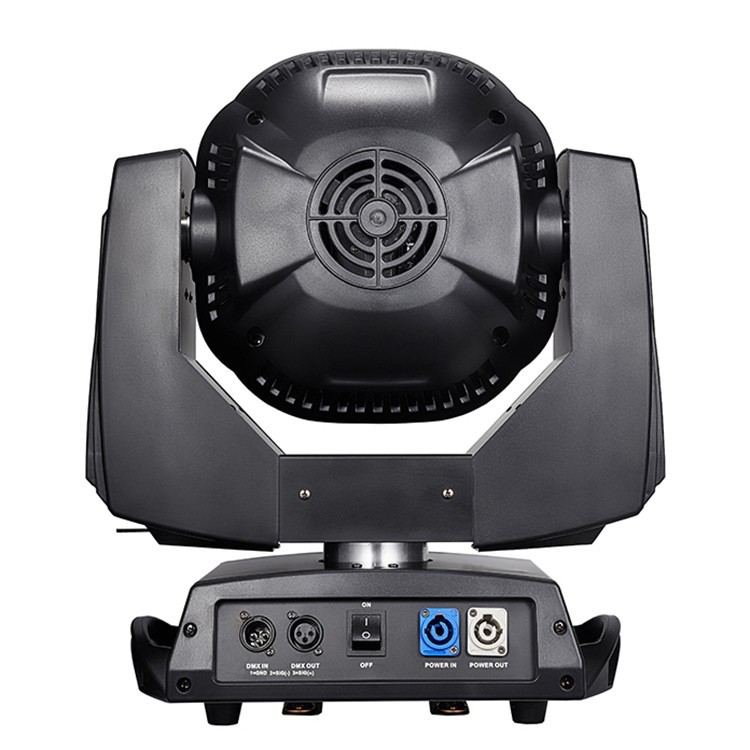

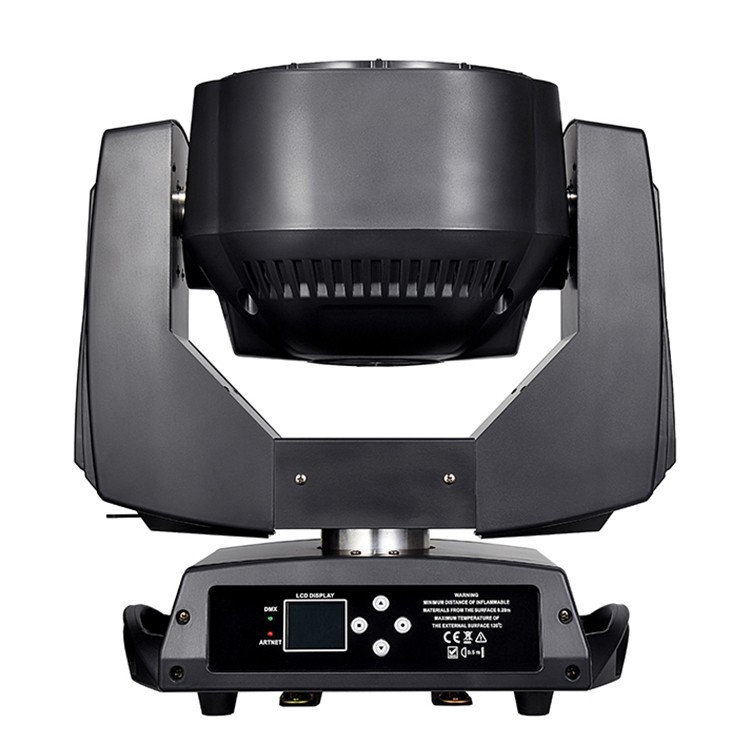

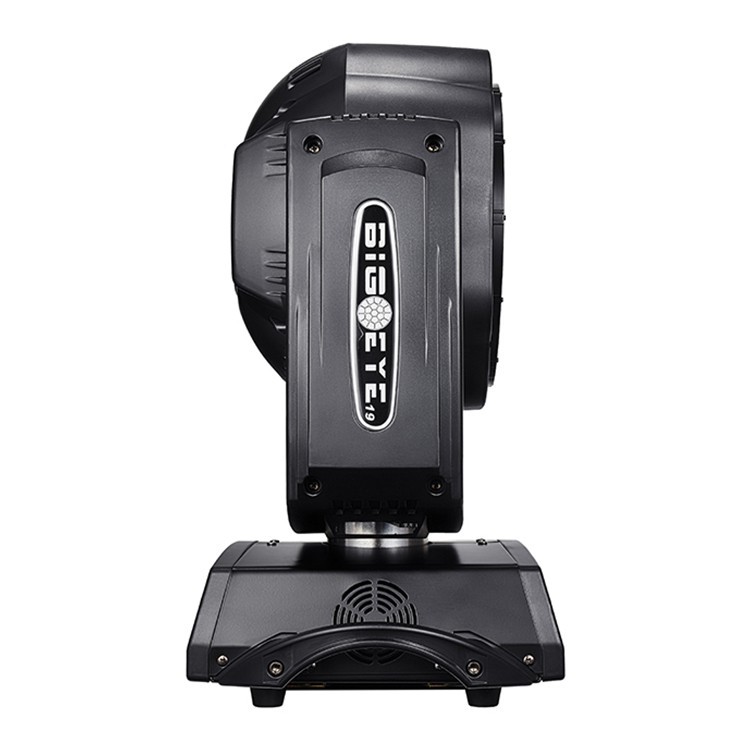

- Product Name: 19x15w Bee Eye Moving Head Wash Light
- Product Model: NST-F1915
Light Source
- Light source :19x15W four-in-one LED beads
- LED expected lifespan: 80,000 hours Data provided by the light source supplier
Optical Systems
- Advanced optical systems ensure clear and wide beam and staining effects
- 8x efficient zoom optical system
- Spot Angle: 4°-60°
Controls And Programs
- 4 touch keys
- Control panel: LCD display
- Control protocols: DMX512, RDM, Art-net, sACN
- DMX channel modes: 7
- Control channels :21/23/35/78/92/97/99CH
- Update the software via DMX connection
- X-axis/Y-axis: 16-bit precision scanning
- Electronic dimming: 0-100% linear dimming
X-axis/Y-axis
- X-axis rotation Angle: 540°
- Y-axis rotation Angle: 220°
- X-axis/Y-axis position automatic correction
Electrical And Interface
- Self-adaptive power supply
- Input voltage range: AC100V-240V 50-60Hz
- Power: 450 W
- Power socket: Power connector input/output
- DMX/RDM signal input/output: Three-core XLR socket
Light Size And Weight
- Length: 410 mm (16.1")
- Width: 275 mm (10.8")
- Height: 425mm (16.7")
- Net weight: 17.0 kg (37.4 lbs)
Carton Size
- Length: 530 mm (20.9")
- Width: 420mm (68.5")
- Height: 510 mm (20")
- Net weight: 20.1kg (44.2 lbs) (1 in 1 standard)
Working Environment
- Maximum ambient temperature: 40°C
- Minimum operating temperature: -20°C
- Maximum surface temperature: 65°C
- Protection class: IP20
Certification
- CE certification
- ISO9001 Quality Management System certification
Installation
- It can be installed horizontally or vertically
- Universal operating position
- 2 Fixed folding light hooks for 50mm light stands
- Safety rope connection hole
Factory Configuration
- Electronic Instruction Manual
- Power cord
- 2 Fixed folding light hooks for 50mm light holders
Optional Accessories
- Flight case: 1 for 2 standard
- Rain cover: for outdoor use
