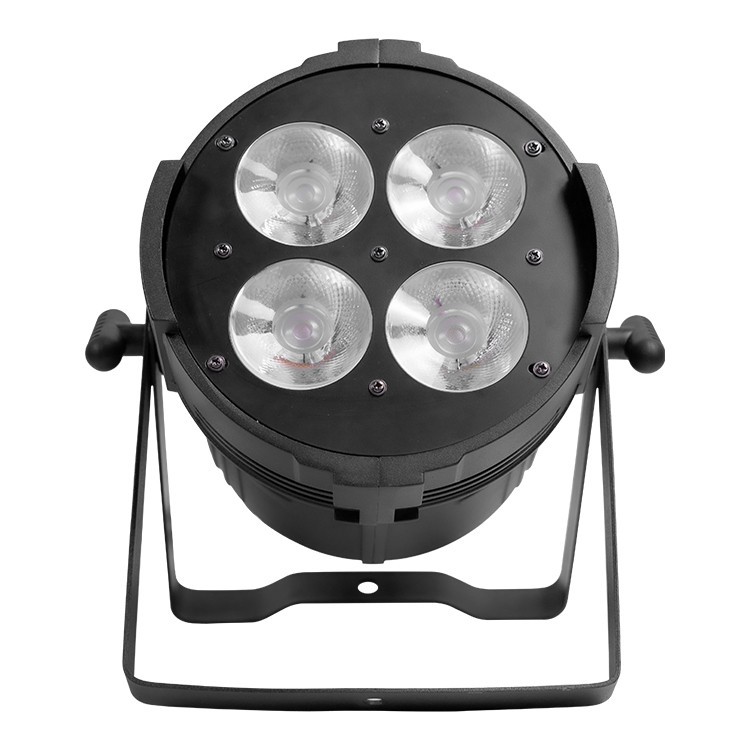

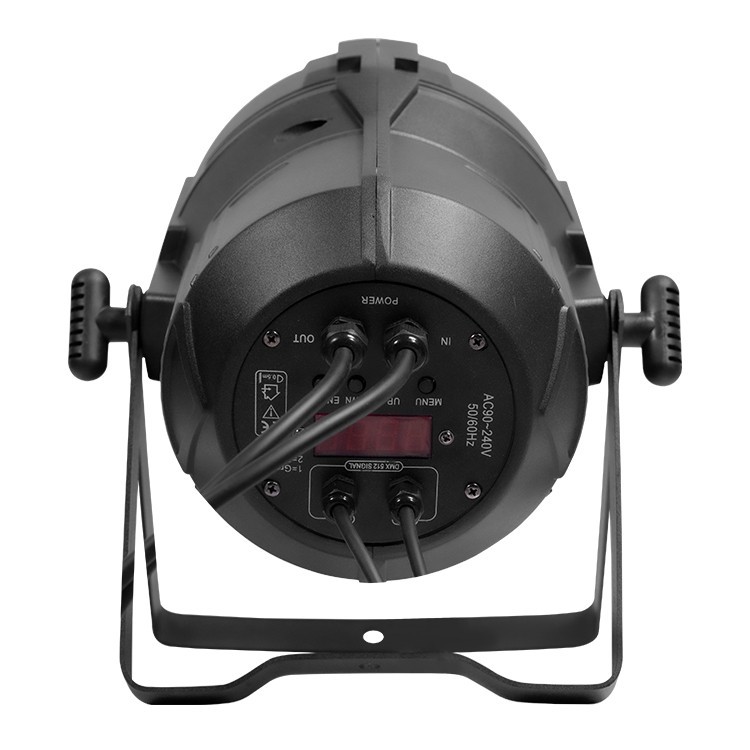

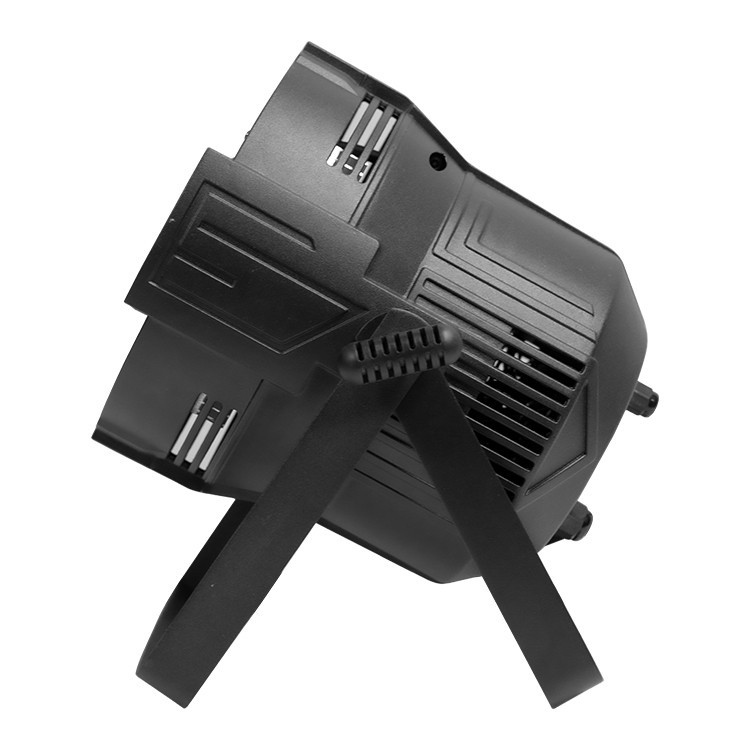

Four Eyes LED Surface COB Light

Send Inquiry
Four Eyes LED Surface COB Light
Details
Model：NST-L200
Brand：New Start
Country of origin：China
Four Eyes LED Surface COB Light is a cost-effective professional stage lighting equipment for fill lighting in small and medium-sized performances, theaters, studios, and banquet hall projects. The lamp uses four (two white and two warm) LED light sources, combined with an independent optical system, to achieve a uniform and soft large area surface light effect, as well as features high brightness, low energy consumption and easy installation.
The four LED light sources can be independently switched on and off, dimmed, and support single-lamp control or group control to meet diverse lighting requirements. With high-quality leds, high luminous efficiency and color rendering index CRI≥93 ensure natural skin tone and clear picture. Equipped with soft light lenses, the light transition is natural and there are no obvious spots, suitable for stage front light, side light, back light, etc. Supports 0-100% linear dimming, stroboscopic (1-20Hz), and dimming curve selection to meet different performance atmospheres. With a silent heat dissipation structure, it has low noise and is suitable for sound-sensitive Settings such as theaters and studios. Compared with traditional PAR lamps or tungsten filament lamps, it has much lower energy consumption, longer lifespan and lower maintenance costs. Supports hanging, bracket mounting, lightweight structure, suitable for quick setup and touring use.
Category
Indoor LED COB Face Light
Share to

Guangdong New Start Lighting Co., Ltd. is one of the leading manufacturers and suppliers of four eyes led surface cob light in China. With abundant experience, we warmly welcome you to wholesale customized lighting products at competitive price from our factory. Contact us for pricelist.



Main Features

  • High-brightness light source: 4pcs (2pcs warm white and 2pcs cool white) LED light sources
  • Small in size, light in weight, high in light efficiency, low in energy consumption
  • 0 to 100% smooth dimming function
  • Multiple speed stroboscopic effects

Technical Specifications

  • Product Name: Four Eyes LED Surface COB Light
  • Product model: NST-L200

Optical System

  • Light source: 4pcs (2 cool white and 2 warm white) LED light sources
  • LED lifespan: 80,000 hours
  • Lens angle: 25°
  • Color rendering index (CRI) : Ra≥90

Controls And Procedures

  • Control Protocol: DMX512, RDM, master-slave
  • DMX channel modes: 3 kinds channel modes
  • Channel mode: 8/4/2 channel

Electrical And Interfaces

  • Input voltage range: 110-240V to 50/60Hz
  • Power: 200W
  • Power socket: Bakelite plug
  • Signal input/output: Canon head

Light Specifications

  • Length: 280mm (11.02")
  • Width: 230mm (9.05")
  • Height: 340mm (13.38")
  • Net weight: 4.1kg (9.02lbs)

Carton Specifications

  • Length: 780mm (30.7")
  • Width: 530mm (20.86")
  • Height: 390mm (15.35")
  • Weight: 29.5kg(65.9lbs) (including carton, 1 pack 6 standard)

Flight Case Specifications

  • Length: 1100mm (43.3")
  • Width: 590mm (23.22")
  • Height: 620mm (24.4")
  • Weight: 61.5(141.9lbs) (including flight case, 1 pack 8 standard)

Working Environment

  • Maximum ambient temperature: 40°C
  • Minimum operating temperature: -20°C
  • Neutral salt spray test: 720 hours Data provided by the light source supplier

Certification

  • ISO9001 Quality Management System certification
  • "CE certification"

Installation

  • Can be installed horizontally or vertically
  • Universal operating position
  • 1 small light hook for 50mm lamp holder

Factory Configuration

  • Electronic Instruction Manual
  • 1 small light hook for a 50mm lamp holder
