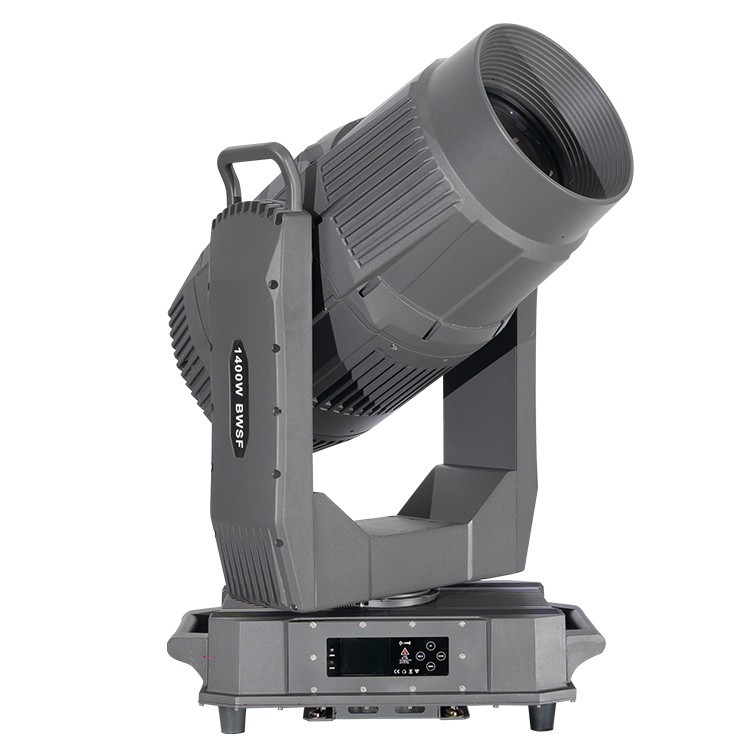

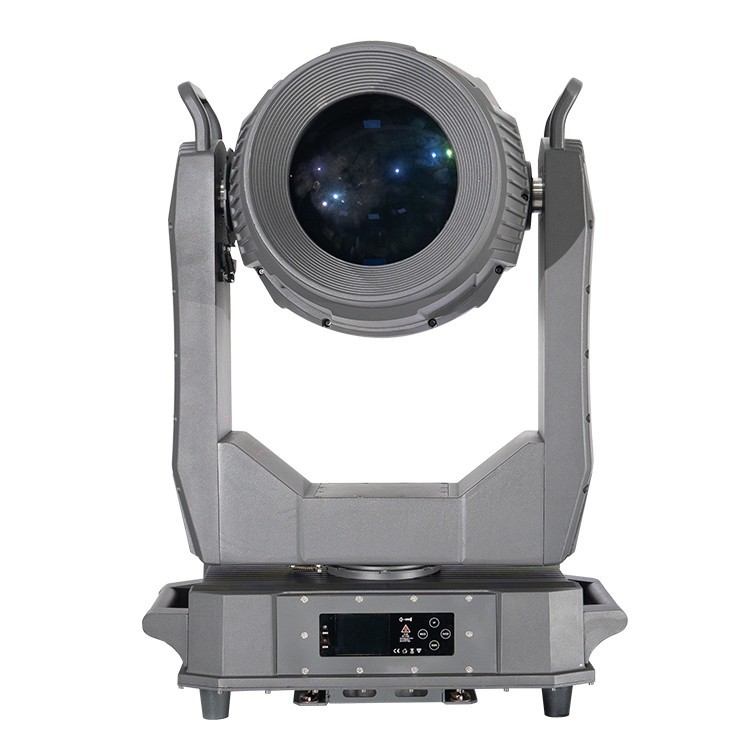

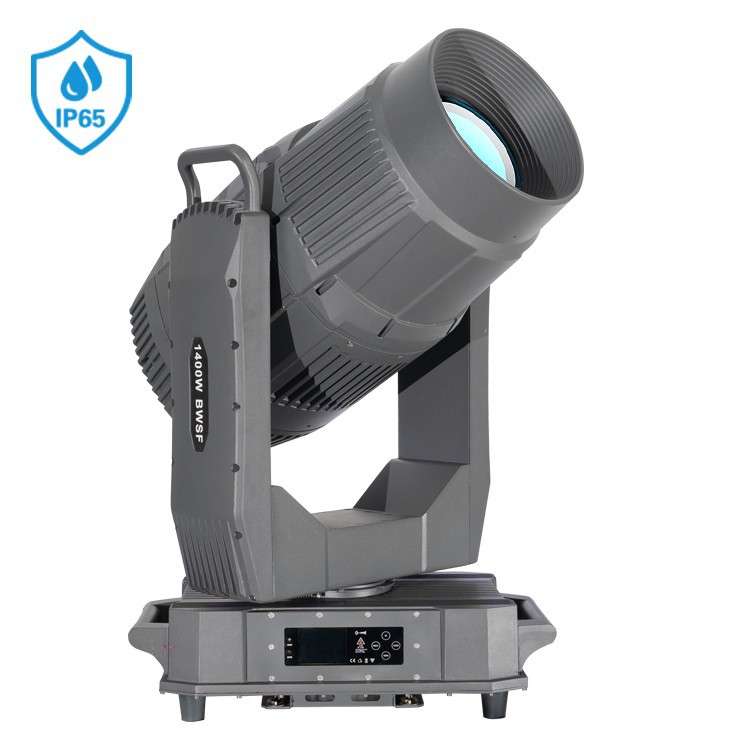

Outdoor LED 1400W Profile Frame Moving Head Light

Guangdong New Start Lighting Co., Ltd. is one of the leading manufacturers and suppliers of outdoor led 1400w profile frame moving head light in China. With abundant experience, we warmly welcome you to wholesale customized lighting products at competitive price from our factory. Contact us for pricelist.

• High-brightness light source: High-power 1400W white LED
• Professional cutting system: 4 gratings for fast, smooth cutting, eight cutting directions and angles can be controlled individually, and the entire cutting module can rotate 90°

• Even and smooth CMY+CTO mixing system.
• Dual gobo wheel design: 1 rotating wheel with 7 replaceable gobos with gobo shake and gobo arbitrary positioning, 1 fixed gobo+flowing gobo+white light with gobo shake.
• 1 dynamic effect wheel, linear cut, bidirectional water flow can be fast or slow.
• 1pcs four prism, 1pcs four-row prism with bidirectional rotation and adjustable speed.

• Electronic focusing, linear aperture (5%-100%), linear fogging (0-100%).
• Beam angle 6°-45° linear magnification.
• Frequencies can be up to 16Hz/s, and random stroboscopic and pulsed stroboscopic options are available.

540° (horizontal) / 270° (vertical) extra-large range of motion, 16-bit precision scanning, quiet and stable operation with automatic error correction reset function.

The body is equipped with a touch color LCD screen and supports RDM function.

• Product Name: Outdoor LED 1000W Profile Frame Moving Head Light
• Product Model: NST-F1400BSWP

• 1400W high-power white LED
• LED lifespan: 20,000 hours

• Luminous flux: 65,000
• Color temperature: 7200K
• Color Rendering Index (CRI) : Ra≥90 ultra-high color rendering index
• Output lens diameter: 158mm

• 4 touch keys
• Control panel: LCD touchable display
• Control protocol: DMX512, RDM, Art-Net
• Dimming: 0-100% linear dimming
• Stroboscopic: Up to 16Hz/s, with random stroboscopic and pulsed stroboscopic options available.
• Aperture: 5% - 100% linear adjustment
• Focusing: Electronic focusing, ultra-smooth
• Atomization: 0-100% linear atomization
• Spot zoom angle: 6° -45 ° linear magnification

• X-axis rotation Angle: 540° (16-bit precision scan)
• Y-axis rotation Angle: 270° (16-bit precision scan)
• Fixed lock: Horizontal/vertical lock
• X-axis/Y-axis position out-of-step automatic correction

• Linear CMY mixing system
• Linear CTO color temperature adjustment
• 1 color wheel: 6 fixed colors + white light, half-color effect, colors can be positioned arbitrarily, with bidirectional rotating rainbow effect

• 7 replaceable rotating gobos + white circles with gobo shaking and gobo positioning
• 6 fixed gobos + flowing gobos + white light with gobo shake

• Linear cut, bidirectional water flow can be fast or slow

• 1pcs four prism, 1pcs four-row prism with bidirectional rotation and adjustable speed.

• Four gratings enable rapid and smooth cutting. Eight cutting directions and angles can be controlled independently.
• Fast and smooth operation with adjustable speed
• The cutting system can move smoothly and position precisely
• The entire cutting module can rotate 90°

• Self-adaptive power supply
• Input voltage range: AC 100-240 V, 50/60 Hz
• Power: 1600W
• Power socket: Waterproof power connector input/output or direct output
• Signal input/output: Three-core XLR socket, RJ45 interface

• Length: 446mm (17.55")
• Width: 362mm (14.25")
• Height: 770 mm (30.31")
• Net weight: 43 kg (94.6lbs)

• Length: 590 mm (23.22")
• Width: 560 mm (22.04")
• Height: 860 mm (33.85")
• Net weight: 29.35 (64.57lbs)(including 1 in 1 flight case)

• Maximum ambient temperature: 40°C
• Minimum operating temperature: -20°C
• Maximum surface temperature: 65°C

• ISO9001 Quality Management System certification
• CNAS third-party test report included
• CE certification

• Can be installed horizontally or vertically
• Universal operating position
• 2 fixed folding light hooks for 50mm light stands
• Safety rope connection hole

• Electronic Instruction Manual
• Power cable
• 2 fixed folding light hooks for 50mm light holders

• Signal cable: Three-core XLR signal cable
