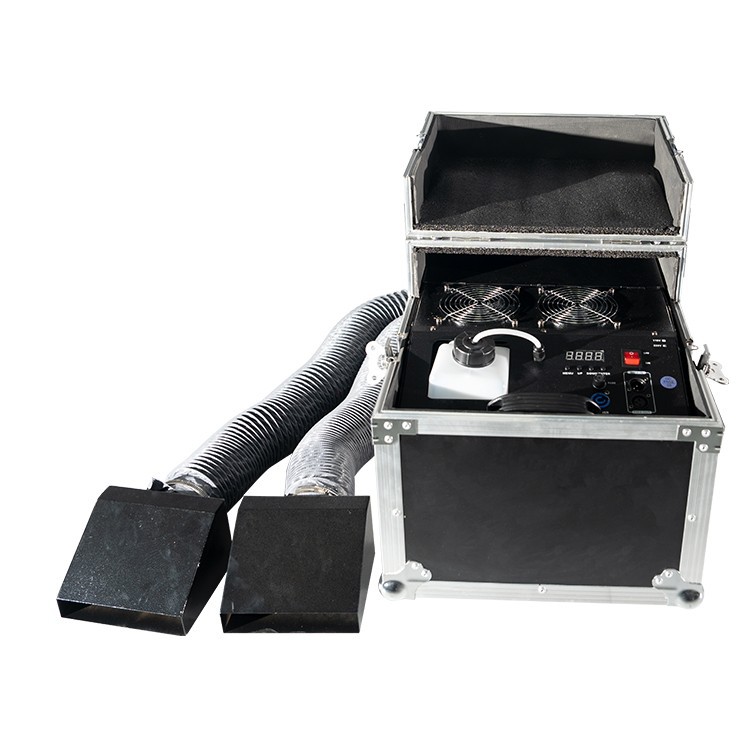

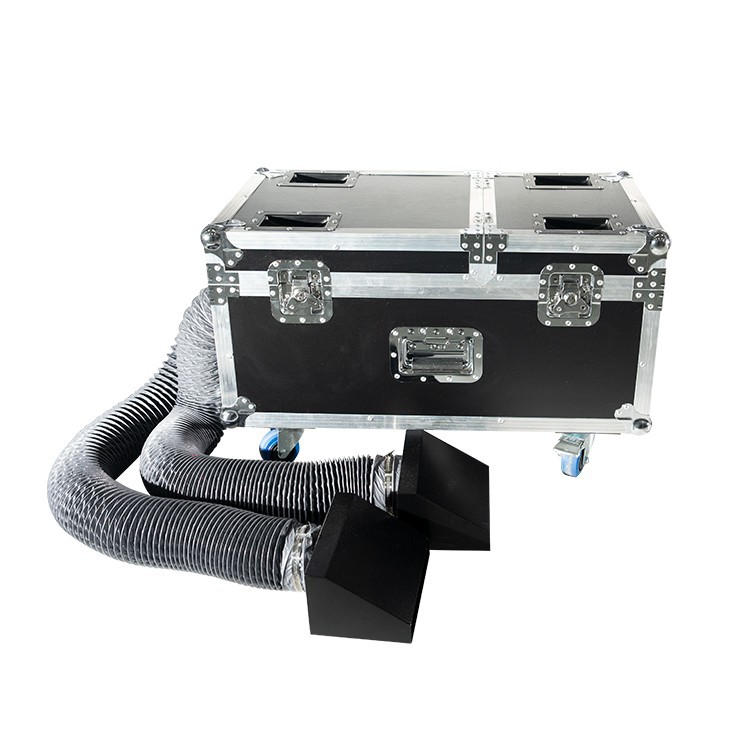

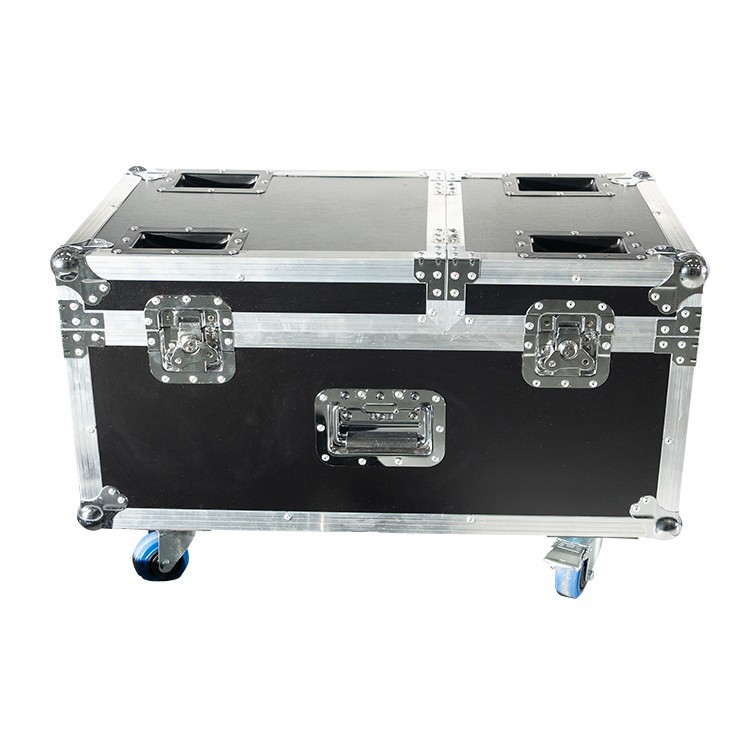

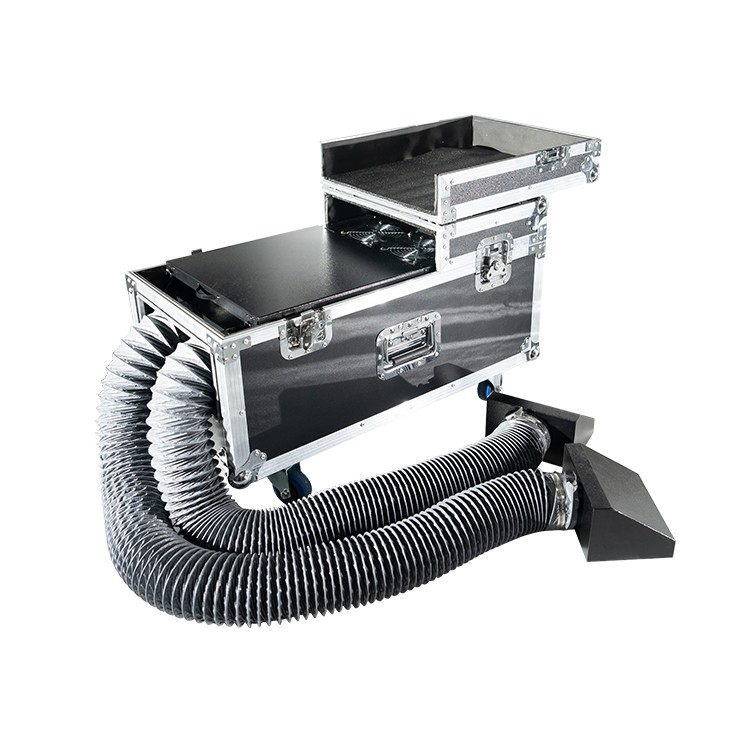

3000W Water Fog Machine

Guangdong New Start Lighting Co., Ltd. is one of the leading manufacturers and suppliers of 3000w water fog machine in China. With abundant experience, we warmly welcome you to wholesale customized lighting products at competitive price from our factory. Contact us for pricelist.

The 3000-watt water mist machine is a high-power atmosphere landscaping device designed for medium and large-scale performance scenarios. Its core features are centered around three dimensions: efficient atomization, safety and controllability, and flexible adaptation. The specific details are as follows:

1. High-power and highly efficient fog, with fine and uniform fog effects

• Equipped with a 3000-watt high-power heating module, the preheating time is short (generally 3-8 minutes), which can quickly heat and vaporize the dedicated water mist consumables (water-based/oil-based); The coverage area of a single unit can reach hundreds of square meters, meeting the extensive fog effect requirements of large stages and venues.
• The generated fog particles are controlled at 5-20μm in diameter, fine and highly suspended, and will not quickly settle and condense into water droplets, avoiding wetting the stage floor, actors' costumes or stage equipment.

2 Dual control mode, precisely adjustable fog effect

• Supports local manual control (knob for adjusting the amount of fog, start/stop) and DMX512 signal remote control, can be connected to the stage lighting effects system for synchronous operation, achieving multiple modes such as graded adjustment of the amount of fog, timed pulse fog, continuous fog, etc., to meet the atmosphere requirements of different performance plots.

3 Multiple safety protections, stable and reliable to use

• Low-temperature mist effect property: The generated water mist is at room temperature or slightly warm, different from the low-temperature white mist of dry ice machines. It won't frostbite actors' skin, nor will it cause temperature difference damage to stage equipment.
• Intelligent protection mechanism: Built-in overheat protection, low liquid protection function, automatically shuts down when the equipment temperature exceeds the limit or the consumables are insufficient to prevent dry burning; Some high-end models are equipped with leakage protection and fan failure alarm, further enhancing the safety of use.

4 Easy to install and maintain, and highly compatible

• Supports two deployment methods: ground placement and bracket hoisting. The fog outlet can rotate 360° and precisely point to the stage target area; The body is mostly made of lightweight metal and is equipped with rollers or handles for easy cross-site transportation.
• Compatible with a variety of specialized water mist consumables such as water-based and oil-based, compatible with the DMX512 protocol of mainstream stage consoles, and compatible with lighting and sound systems to meet the needs of various scenarios such as concerts, stage plays, weddings, and press conferences.
• The internal piping design is simple and easy to clean and maintain daily, reducing the cost of use.

• Product Name: 3000W Water Fog Machine
• Product model: NST-S3000
• Power efficiency: 3000W
• Waterproof Grade:IP20
• Voltage: AC220V-240V 50/60HZ
• OR AC110V-120V 50/60HZ
• Preheating time: 5 minutes
• Output smoke volume: 4000cust/min
• Controller: LCD control panel, remote +DMX512

• Length: 780 mm(30.7")
• Width: 420mm(16.54")
• Height: 490mm(19.29")
• Net Weight :38.2kg(84.04lbs)

• Maximum ambient temperature: 40°C
• Minimum operating temperature: -20°C
• Maximum surface temperature: 65°C

ISO9001 Quality Management System Certification

CE certification

• Ground-mounted installation (most commonly used),
• signal and power connection.
