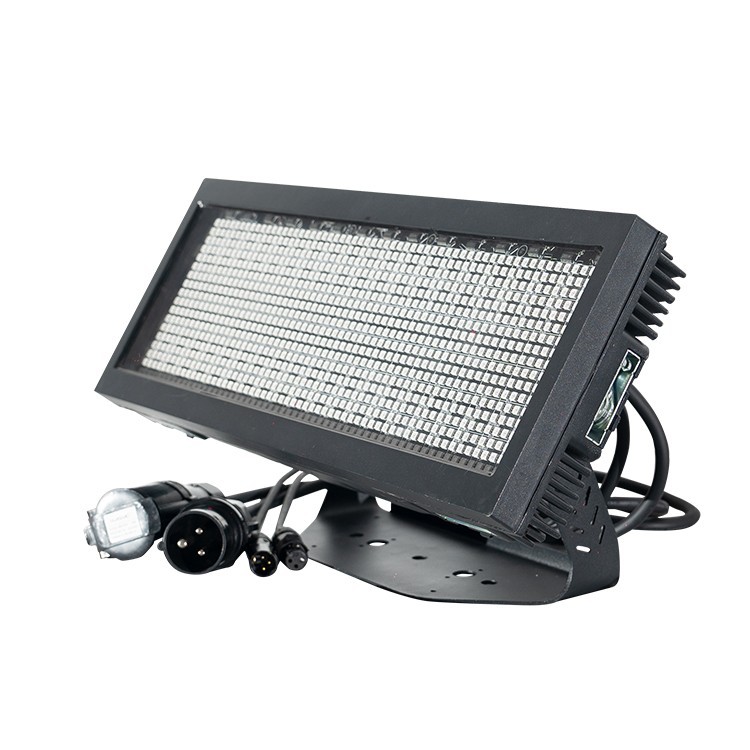

Outdoor 120 Sections LED Strobe Stage Light

Guangdong New Start Lighting Co., Ltd. is one of the leading manufacturers and suppliers of outdoor 120 sections led strobe stage light in China. With abundant experience, we warmly welcome you to wholesale customized lighting products at competitive price from our factory. Contact us for pricelist.

• Heavy-duty die-cast aluminum housing, equipped with a waterproof cooling fan and an air valve (expels internal heat and moisture when there is mist or hot air inside to prevent condensation buildup), ensuring superior heat dissipation and more stable operation. Integrated with 1080 ultra-bright RGB5050 LED beads with pure color temperature and high luminosity.
• Comes with an LCD touchscreen display and a heat dissipation valve, matched with a 3-meter daisy-chain pure copper power cable and shielded signal cable. Upgraded built-in effects realize fewer channels with more effects; the program codes are written by senior lighting designers for optimized performance. The upgraded intelligent temperature-controlled mainboard allows real-time temperature monitoring via the touchscreen, providing constant protection for the fixture. Adopts high-brightness imported LED beads with pure color temperature and high brightness. Multiple channel modes are available to meet the programming needs of lighting technicians.
• The 120-segment 6×20 multi-combination design supports a richer variety of lighting effects, making it ideal for dazzling light shows. With an IP65 outdoor waterproof rating, it ensures safe operation for outdoor performances.

Adopts a 120-segment 6×20 multi-combination design. This segmented layout provides hardware support for diverse light effects. Each segment can operate independently or collaboratively, enabling precise implementation of multiple lighting effects such as running light, burst strobe, flowing light, color gradient, and digital/alphabet display, breaking the limitation of single light effect of traditional strobe lights.

Compatible with multiple channel modes including CH3, CH12 and CH360, it works with different professional consoles to meet the needs of lighting technicians ranging from simple operation to complex programming. The program codes compiled by senior designers realize fewer channels with more effects, lowering the operation threshold while ensuring the professionalism and creativity of the light effects.

• Product Name :Outdoor 120 Sections LED Strobe Stage Light
• Model Number NST-P120F
• WaterProof Grade:IP65
• Light Source 1080 pcs 0.5W RGB Ultra-bright LED Beads
• LED Lifetime: 80,000 hours Data provided by the light source supplier

• RGB 3-in-1 Full-color LED Beads

• Effect Features: ponit control, Burst Strobe, Splicing, Digital Display, Alphabet Display, water effect .
• Control Buttons 4 Touch Buttons
• Control Panel LCD Touchscreen Display
• Control Protocols DMX512, RDM, Art-Net
• DMX Channels 3/12/360CH Multiple Channel Modes
• Dimming 0-100% Linear Dimming
• Strobe Frequency 1-30 Hz, supports random strobe and pulse strobe

• Input Voltage Range: 110-240V~ 50/60Hz
• Power: 400W
• Heat Dissipation: Built-in waterproof cooling fan; built-in air valve for heat dissipation (expels internal heat and moisture to prevent condensation)
• Power Connector: Waterproof Power Connector Input/Output
• Signal Input/Output: 3-pin or 5-pin Waterproof XLR Connector

• Length: 510 mm (20.07");
• Width: 190 mm (7.48");
• Height: 110 mm (4.33")
• Net Weight (Fixture):7 kg (15.4 lbs)

• Length: 1100 mm (43.3")
• Width: 560 mm (22.04")
• Height: 600 mm (23.6")
• Net Weight (Flight Case)75 kg (165 lbs) (including flight case, standard packing: 6 fixtures per case)

• Max Ambient Temperature 40°C
• Min Operating Temperature -20°C
• Max Surface Temperature 65°C
• Protection Rating IP65

• ISO9001 Quality Management System Certification; CE Certification

• Support vertical, horizontal, top-mount and side-mount installation

• 4 quick-lock hook holes on the base
• 2 quick-lock hooks for 50mm truss; one or two hooks can be installed according to application needs
• Safety cable connection point

• Electronic user manual
• Power cable: 2.5mm² 3-core waterproof daisy-chain integrated cable
• Handles installed on both the top and base of the fixture
• Retractable tripod at the bottom
• 2 quick-lock hooks for 50mm truss
