Guangdong New Start Lighting Co., Ltd. is one of the leading manufacturers and suppliers of outdoor four eyes 200w led cob face light in China. With abundant experience, we warmly welcome you to wholesale customized lighting products at competitive price from our factory. Contact us for pricelist.
Main Features
- High-brightness light source: 4 x 50W COB (two pure white beads + two warm white beads)
- Luminaires luminous flux: 3,280 lumens (18°)
- Linear CTO color temperature adjustment: 2,500K - 8,000K
- Small in size, light in weight, high in luminous efficiency and low in energy consumption
- Smart light sensing can automatically turn on the light mode according to the environment and set the duration of the light
- 0 to 100% smooth dimming function
- Multiple speed stroboscopic effects
- IP65 protection, suitable for outdoor use all year round
Technical Specifications

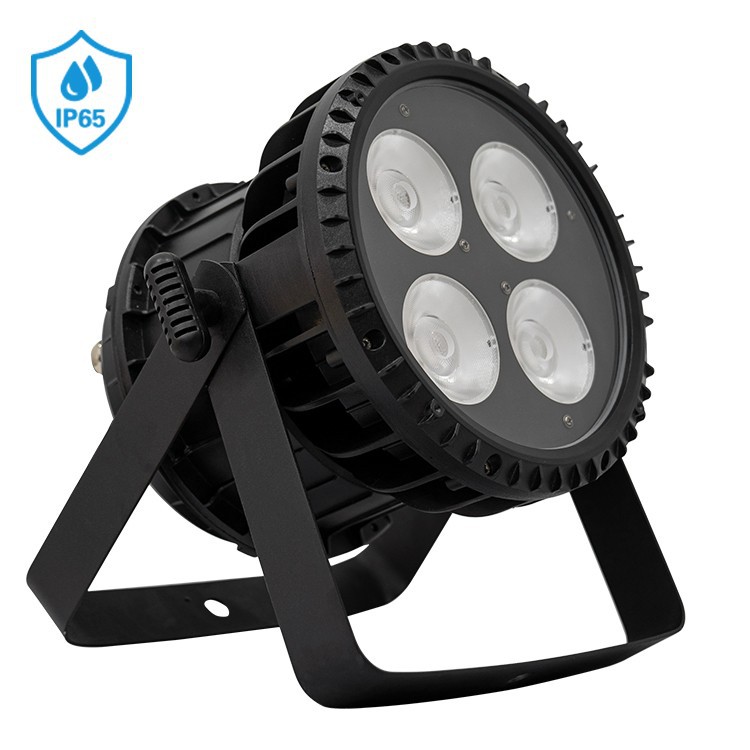

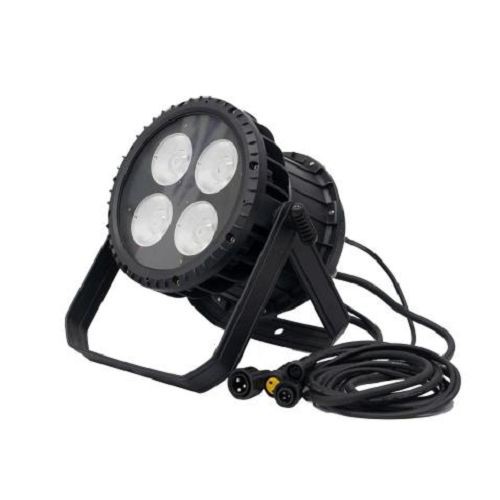

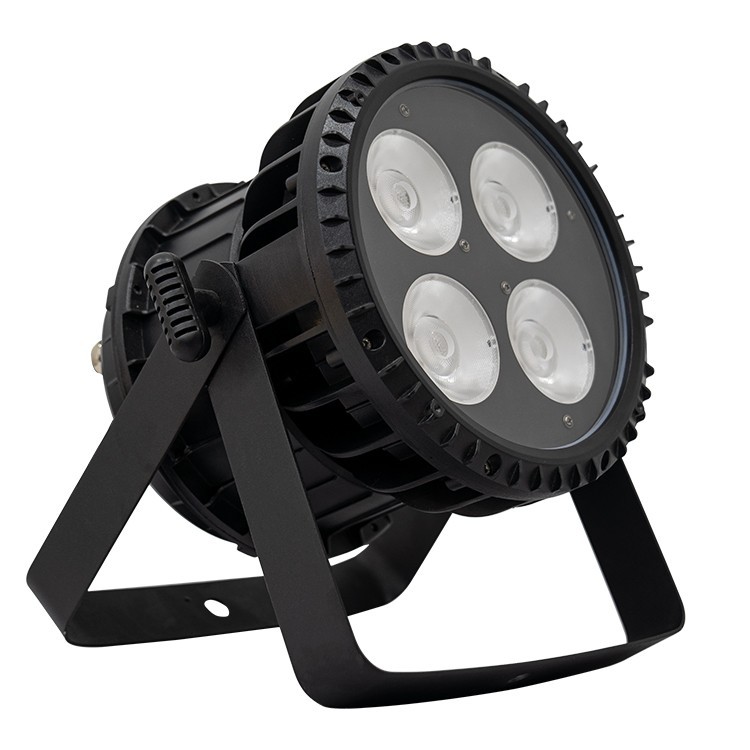

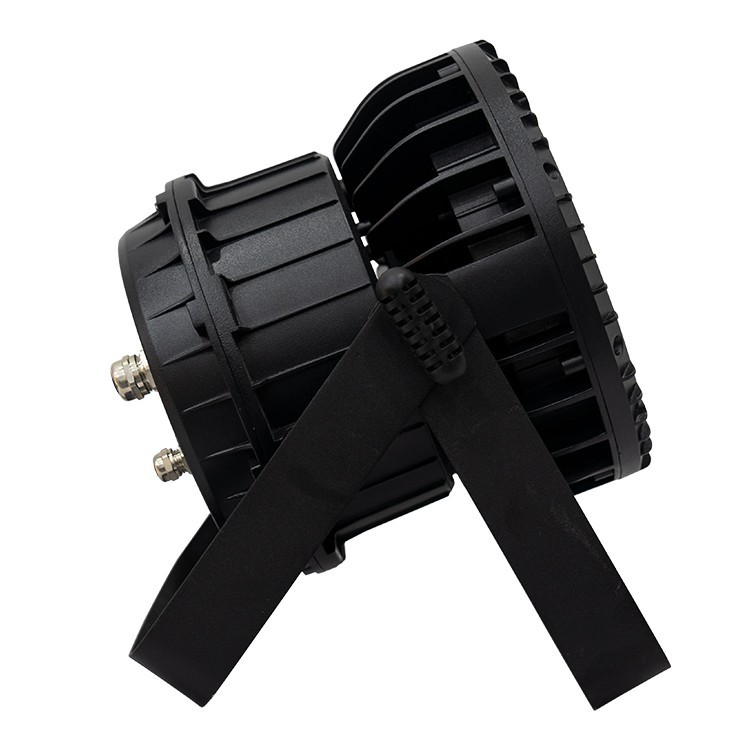

- Product Name: Outdoor Four Eyes 200W LED COB Face Light
- Product model: NST-200FS
Light Source
- 4 x 50W COB
- LED lifespan: 80,000 hours
Optical System
- Advanced optical systems
- Light emission Angle: 24°
- Color Index (CRI) : Ra≥92
Controls And Programs
- 4 physical keys
- Control panel: OLED display screen
- Control protocol: DMX512, RDM, master-slave
- DMX channel modes: 3 kinds channel modes
- Channel mode: /8/4/2 channel
- Software Upgrade: Update the software via DMX connection
Electrical And Interfaces
- Input voltage range: 110-240V to 50/60Hz
- Power: 200W

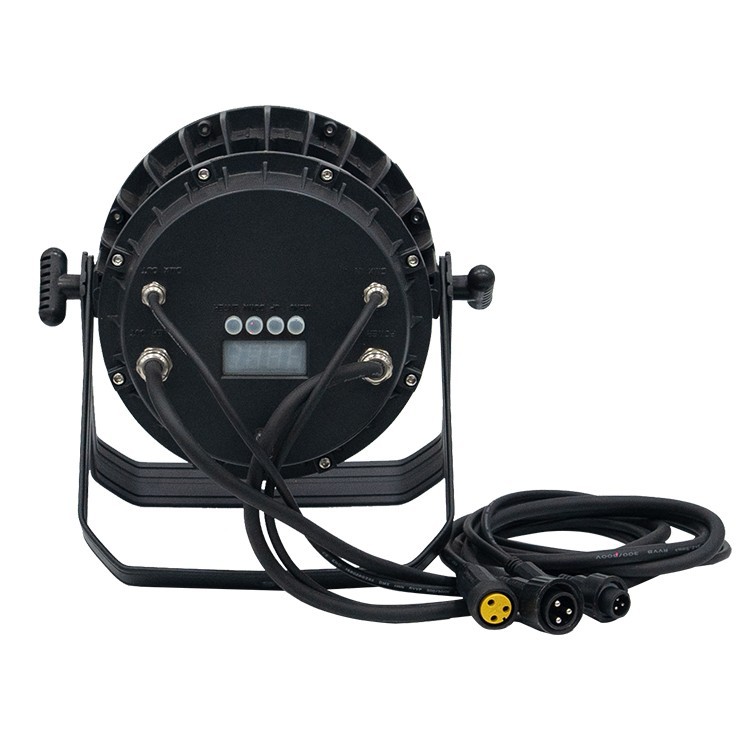

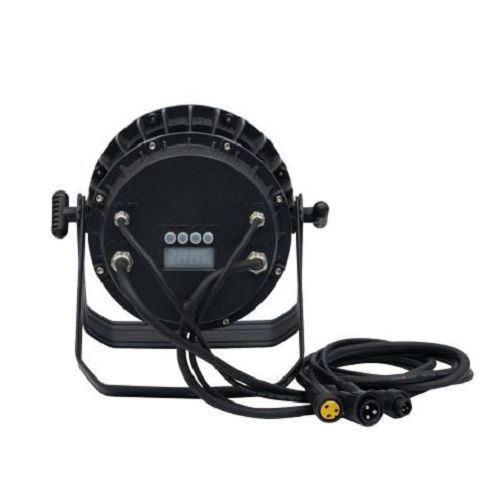

- Power socket: Power connector input/output
- DMX/RDM signal input/output: Waterproof three-pin XLR socket
Light Size And Weight
- Length: 260mm (10.23")
- Width: 260mm (110.23")
- Height: 380mm (14.96")
- Luminaire net weight: 5.45kg (11.99lbs)
Carton Specifications
- Length: 550mm (21.65")
- Width: 550mm (21.65")
- Height: 390mm (15.35")
- Weight: 25.7kg(56.54lbs) (including carton, 1 pack 4 standard)
Working Environment
- Maximum ambient temperature: 40°C
- Minimum operating temperature: -20°C
- Maximum surface temperature: 65°C
- Neutral salt spray test: 720 hours Data provided by the light source supplier
Certification
- ISO9001 Quality Management System certification
- CE certification
Installation
Can be installed horizontally or vertically
Universal operating position
1 fixed eagle-claw light hook for 50mm light holder
Factory Configuration
- Electronic Instruction Manual
- Power cord
- 1 fixed folding light hook for 50mm light holder
OEM & ODM Services
Q1: Do you provide OEM and ODM services?
A1: Yes, we specialize in providing both OEM and ODM services for global customers. Whether you need to print your own logo on our existing products (OEM) or develop a customized stage lighting product according to your unique design, specifications and requirements (ODM), our R&D and production teams can support you.
Q2: What is the process for OEM/ODM orders?
A2: The process is as follows: 1) You provide your requirements (design drawings, specifications, logo, packaging requirements, etc.); 2) Our team evaluates the feasibility and provides a quotation and sample plan; 3) We produce samples for your confirmation; 4) After sample approval, we sign the contract and start mass production; 5) We conduct strict quality inspection before shipment and deliver the goods on time. The whole process is supervised by a dedicated project manager to ensure smooth progress.
Q3: Is there a minimum order quantity (MOQ) for OEM/ODM orders?
A3: The MOQ for OEM orders is usually 20-50 units per model, and for ODM orders, it depends on the complexity of the product and customization requirements (usually 50-100 units). We can also negotiate the MOQ for long-term cooperative customers or small-batch trial orders to meet your business needs.
