400W Moving Head COB Face Light

Send Inquiry
400W Moving Head COB Face Light
Details
Model：NST-400M
Brand：New Start
Country of origin：China
400W Moving Head COB Face Light is a high-performance headlight device designed for professional Settings such as stage performances, theaters, TV studios, and cultural and tourism performances. The lamp features a 400W high-power LED light source, combined with a high-precision optical system and an electric focusing structure, allowing for flexible switching from soft headlight to long-distance projection to meet the brightness and uniformity requirements of different performance environments.
The 400W white LED light source, with high luminous efficiency and high color rendering index (CRI≥90), ensures that the skin color of the characters is restored naturally and the stage picture is clear and delicate. Equipped with electric focusing and electric zoom, the beam Angle can be smoothly adjusted within the range of 5° - 60°, and it can be used as a long-distance front light or as a large area spread light. The dual-axis high-precision oscillating mechanism ensures accurate positioning and smooth operation, supports control protocols such as DMX512 and RDM, and enables multi-light linkage and complex lighting programming. It supports 0-100% linear dimming, color temperature adjustment, and stroboscopic effects (1-20Hz adjustable) to meet the requirements of different performance rhythms and atmospheres. With an efficient heat dissipation structure and a silent fan design, it operates with low noise, making it suitable for noise-sensitive Settings such as theaters and studios.
Category
Indoor LED COB Face Light
Share to

Guangdong New Start Lighting Co., Ltd. is one of the leading manufacturers and suppliers of 400w moving head cob face light in China. With abundant experience, we warmly welcome you to wholesale customized lighting products at competitive price from our factory. Contact us for pricelist.



Main Features

  • High-brightness light source: 400W LED module beads
  • CTO color temperature adjustment: 2800K - 6000K
  • Colour: 2 colours + white (gold and purple)
  • Protection rating: IP20
  • Small in size, light in weight, high in light efficiency, low in energy consumption
  • 0 to 100% smooth dimming function
  • Multiple speed stroboscopic effects

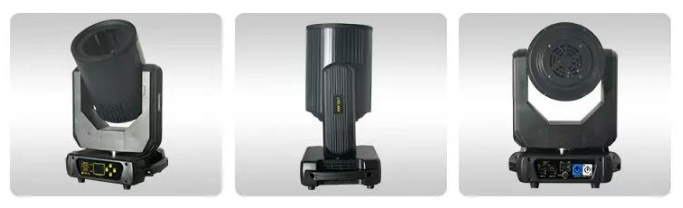

product-683-208

Technical Specifications

  • Product Name: 400W Moving Head COB Face Light
  • Product model: NST-400M
  • Light source: 400W LED module light source
  • LED lifespan: 20,000 hours

Optical System

  • Advanced optical systems
  • Dimming Angle: 5°-60°
  • Color index (CRI) : Ra≥90

Controls And Procedures

  • Control Protocol: DMX512, RDM, master-slave
  • Channel mode: 11 channels
  • Software Upgrade: Update the software via DMX connection

Electrical And Interfaces

  • Input voltage range: 110-240V to 50/60Hz
  • Power: 500W
  • Power socket: Audio plug
  • Signal input/output: Canon head

Light Specifications

  • Length: 330mm (12.99")
  • Width: 250mm (9.84")
  • Height: 520mm (20.47")
  • Net weight: 12kg (26.4lbs)

Carton Specifications

  • Length: 520mm (20.47")
  • Width: 370mm (14.56")
  • Height: 420mm (16.53")
  • Weight: 13.1kg(28.82lbs) (including carton, 1 per 1 standard)

Working Environment

  • Maximum ambient temperature: 40°C
  • Minimum operating temperature: -20°C
  • Maximum surface temperature: 75°C
  • Protection class: IP20
  • Neutral salt spray test: 720 hours Data provided by the light source supplier

Certification

  • ISO9001 Quality Management System certification
  • CE certification

Installation

  • Can be installed horizontally or vertically
  • Universal operating position
  • 2 middle light hooks for 50mm light stands

Factory Configuration

  • Electronic Instruction Manual
  • Power cord
  • 2 light hooks for 50mm light holders

Order & Shipment

Q1: What is the lead time for regular orders and customized orders?

A1: For regular stock products, the lead time is 3-5 working days. For OEM orders, the lead time is 15-20 working days after sample confirmation. For ODM orders, it takes 25-35 working days (depending on the R&D and production cycle). We will confirm the exact delivery time with you before placing the order.

Q2: What shipping methods do you offer?

A2: We cooperate with well-known international  logistics companies such as DHL, FedEx, UPS, TNT for small-batch orders, which can deliver goods to your door within 6-10 days. For large-batch orders, we can arrange sea shipping, air shipping or railway shipping according to your needs, and provide door-to-door, port-to-port or warehouse-to-warehouse services. We will help you choose the most cost-effective shipping method based on your order quantity and delivery time requirements.

Q3: How do you package the products to avoid damage during shipping?

A3: We use high-quality packaging materials, including shockproof foam, cartons with reinforced edges, and flight cases for large or fragile products. Each product is individually packaged and tested for impact resistance before shipment. We also purchase transportation insurance for all orders to ensure that you can get compensation in case of product damage during shipping.
