LED 200W Surface Warm Zoom Light

Send Inquiry
LED 200W Surface Warm Zoom Light
Details
Model:NST-H200
Brand:New Start
Country of origin:China
LED 200W Surface Warm Zoom Light is a adjustable range and precise aperture control ability, suitable for stage spotlight, close-ups emphasize its versatility in wedding, studio, theater, and many other scenarios, with flexible switching between spotlight and floodlight modes, COB light source high and natural soft light characteristics, suitable for portrait photography and beauty live streaming.
Category
Indoor LED COB Face Light
Share to

Guangdong New Start Lighting Co., Ltd. is one of the leading manufacturers and suppliers of led 200w surface warm zoom light in China. With abundant experience, we warmly welcome you to wholesale customized lighting products at competitive price from our factory. Contact us for pricelist.



Key Features

  • LED 200W Surface Warm Zoom Light adopts full aluminum alloy chassis, full silent design, equipped with high-quality optical lens system, good linearity, no jitter, constant voltage and constant current control mode, stable color temperature and color rendering, no change during dimming, lighting fixtures suitable for: multi-purpose conference hall, studio, theater, concert hall.

Technical Specifications

  • Product Name: LED 200W Surface Warm Zoom Light
  • Product Model: NST-H200

Optical System

  • Light source: Single 200W LED module
  • Color temperature: WW3200K/CW5600K/ 2 in 1 optional
  • The average life expectancy: 80000hours
  • Color rendering index: Ra≥90
  • Beam angle: 10° to 55° DMX linear focusing
  • Dimming: 0-100% linear dimming, stroboscopic effect 0-20 times per second
  • Control protocol: Standard DMX512 protocol RDM function
  • Cooling system: High thermal conductivity copper tube heat sink, air natural convection cooling

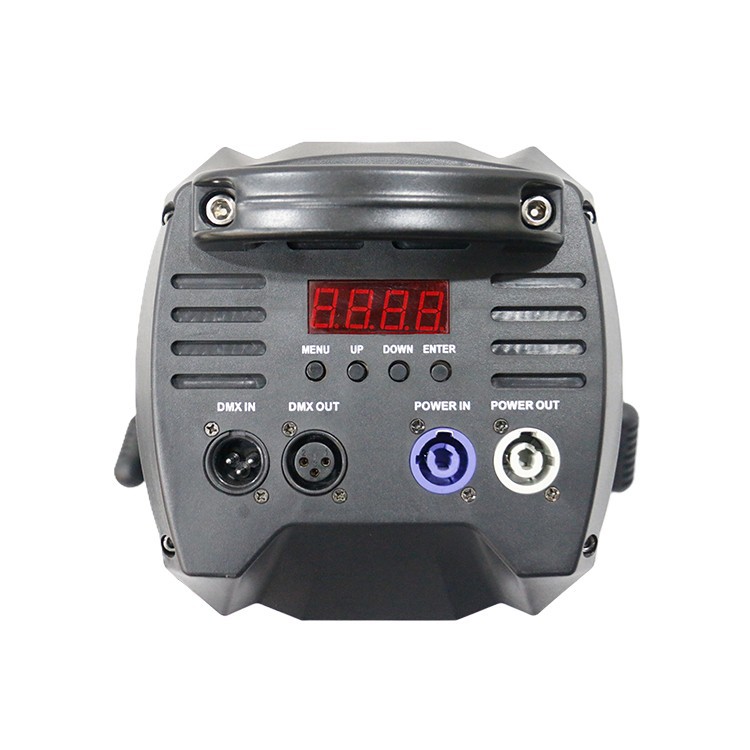

  • Control interfaces: DMX512 interface (3-core, 5-core), power cord hand-in-hand socket

Electrical And Interface

  • Input voltage: AC100-240V, 50/60Hz
  • Rated power: 200W
  • Power factor PF≥0.98
  • Drive current: 0.95A

Light Size And Weight

  • Length: 465mm (18.3")
  • Width: 184 mm (7.24")
  • Height: 275mm (10.82")
  • Net weight: 5kg (11lbs)

Flight Case Size And Weight

  • Length: 1100 mm (43.3")
  • Width: 560 mm (22.04")
  • Height: 600mm (23.62")
  • Net weight: 60kg(132lbs) (including 6 in 1 flight case standard)

Working Environment

  • Maximum ambient temperature: 40°C
  • Minimum operating temperature: -20°C
  • Maximum surface temperature: 65°C
  • Protection class: IP20

Certification

  • ISO9001 Quality Management System Certification
  • CE certification

Installation

  • Can be installed horizontally or vertically
  • Universal operating position
  • 1 fixed light hook for 50mm light holder

Factory Configuration

  • Electronic Instruction Manual
  • Power cord
  • 1 fixed light hook for 50mm light holder
