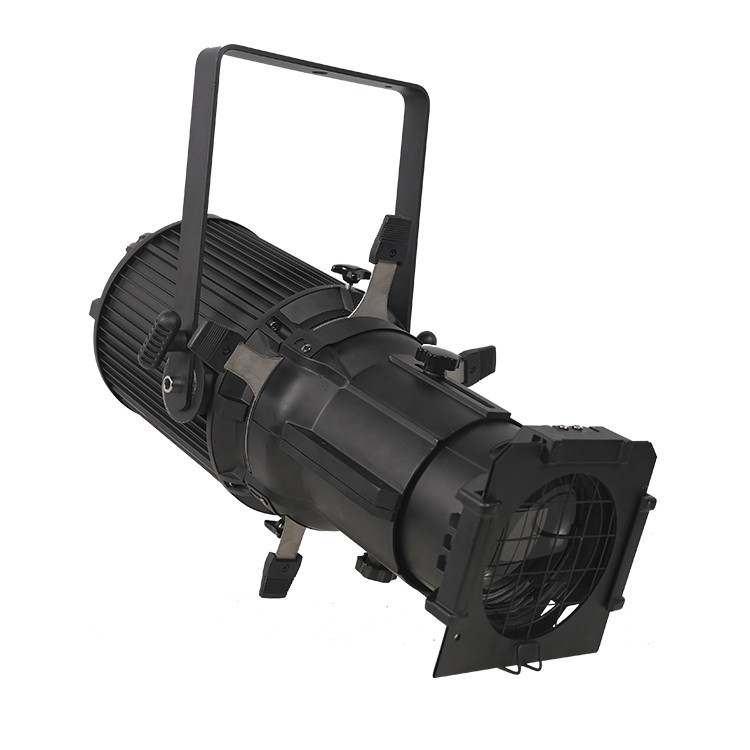

LED 200W Studio Leko Profile Light

Send Inquiry
LED 200W Studio Leko Profile Light
Details
Model：NST-C200
Brand：New Start
Country of origin：China
LED 200W Studio Leko Profile Light is a precisely shaped lighting fixture designed for professional Settings such as theaters, television stations, and studios. It uses a single high-brightness 200W LED light source with a color rendering index of Ra≥95 and is available between two standard color temperatures: 3200K (warm white) and 5600K (cool white), ensuring true and pure light color.
The core function of the lamp lies in its professional imaging and beam shaping capabilities. By replacing the standard glass lens, three different beam angles of 19°, 26°, and 36° can be obtained to switch from focused to medium floodlight. Combined with the precise truncation function, the spot can be clearly cut to create a sharp-edged geometry. Combined with linear dimming and DMX control, it provides a stable, reliable and high-quality lighting solution, whether for precisely illuminating speakers or creating specific shapes of light and shadow for stage sets.
Category
Indoor LED COB Face Light
Share to

Guangdong New Start Lighting Co., Ltd. is one of the leading manufacturers and suppliers of led 200w studio leko profile light in China. With abundant experience, we warmly welcome you to wholesale customized lighting products at competitive price from our factory. Contact us for pricelist.



Main Features

  • High color rendering precision light source: Using a single 200W high-efficiency LED, color rendering index Ra≥95, extremely high color reproduction. Two standard film and television color temperature options, 3200K and 5600K, are available to meet different shooting and performance requirements.
  • Professional optical system and multiple angles: With high-quality glass lenses, three standard beam angles of 19°, 26°, and 36° are available to meet the needs of different projection distances and spot sizes.
  • Precise beam control: With professional soft light, focus and block functions. In particular, the cut-off function can make a clear and sharp cut of the light spot to achieve geometric shapes such as rectangles and trapezoids.
  • Smart control and silent operation: Supports multiple control modes such as DMX512, master-slave, and auto, available in 2-channel (monochrome) or 4-channel (dual-color) configurations, with strong compatibility. With excellent heat dissipation design and low operating noise, it is suitable for recording and quiet environments.
  • Compact structure and reliable quality: Compact and robust structure design, net weight 7kg, easy to install and adjust. The product is certified with ISO9001 quality management system and CE safety certification, ensuring reliable quality.

Technical Specifications

  • Product Name: LED 200W Studio Leko Profile Light
  • Product Model: NST-C200

Light Source

  • Light source type: 1 × 200W high-brightness LED
  • LED expected lifespan: 80,000 hours Data provided by the light source supplier

Optical Systems

  • Color temperature index: 3200K (warm yellow) / 5600K (pure white) (customizable)
  • Color rendering index (CRI) : Ra ≥ 95
  • Beam Angle: 19° / 26° / 36° (optional, achieved by changing the lens)
  • Lens material: Glass lens
  • Core functions: Soft light, Focus light, cut light (shaping)

Controls And Programs

  • Control Panel: LCD display
  • Control mode: DMX512 / master-slave mode/auto-run program
  • DMX channels: 2 channels (monochrome mode) or 4 channels (dual-color temperature mode)
  • Dimming accuracy: 0-100% linear dimming (16-bit)

Electrical And Interface

  • Self-adaptive power supply
  • Input voltage range: AC100V-240V 50-60Hz
  • Power: 200W
  • Power socket: Power connector input/output

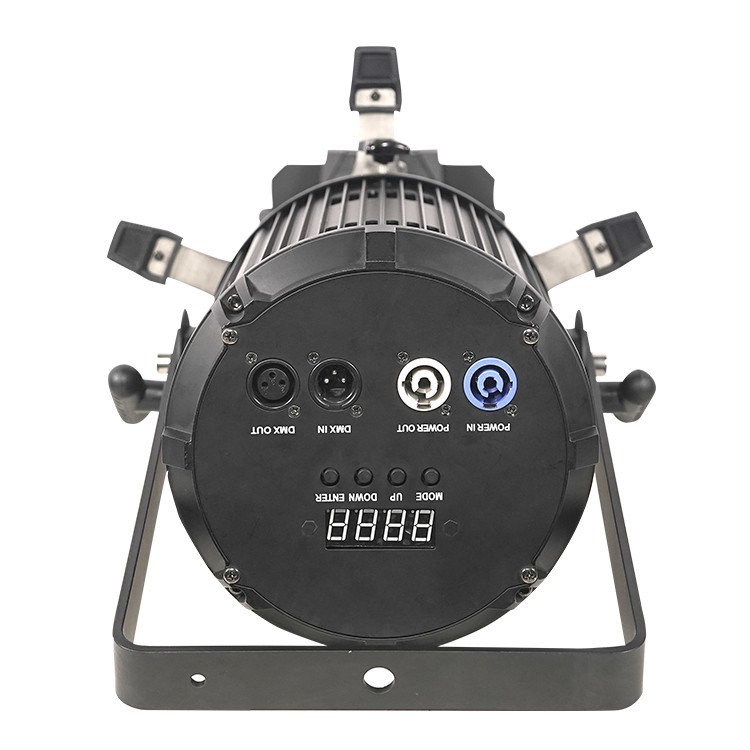

  • DMX/RDM signal input/output: Three-core XLR socket

Light Size And Weight

  • Length: 640 mm (25.19")
  • Width: 560 mm (22.04")
  • Height: 180 mm (7.08")
  • Net weight: 7kg (15.4lbs)

Working Environment

  • Maximum ambient temperature: 40°C
  • Minimum operating temperature: -20°C
  • Maximum surface temperature: 65°C
  • Protection grade: IP20 (for indoor use)

Certified

  • CE certification
  • ISO9001 Quality Management System certification

Installation

  • It can be installed horizontally or vertically
  • Universal operating position
  • 1 fixed light hook for 50mm lamp holder
  • Safety rope connection hole

Factory Configuration

  • Electronic Instruction Manual
  • Power cord

Order & Shipment

Q1: What is the lead time for regular orders and customized orders?

A1: For regular stock products, the lead time is 3-5 working days. For OEM orders, the lead time is 15-20 working days after sample confirmation. For ODM orders, it takes 25-35 working days (depending on the R&D and production cycle). We will confirm the exact delivery time with you before placing the order.

Q2: What shipping methods do you offer?

A2: We cooperate with well-known international logistics companies such as DHL, FedEx, UPS, TNT for small-batch orders, which can deliver goods to your door within 6-10 days. For large-batch orders, we can arrange sea shipping, air shipping or railway shipping according to your needs, and provide door-to-door, port-to-port or warehouse-to-warehouse services. We will help you choose the most cost-effective shipping method based on your order quantity and delivery time requirements.

Q3: How do you package the products to avoid damage during shipping?

A3: We use high-quality packaging materials, including shockproof foam, cartons with reinforced edges, and flight cases for large or fragile products. Each product is individually packaged and tested for impact resistance before shipment. We also purchase transportation insurance for all orders to ensure that you can get compensation in case of product damage during shipping.
