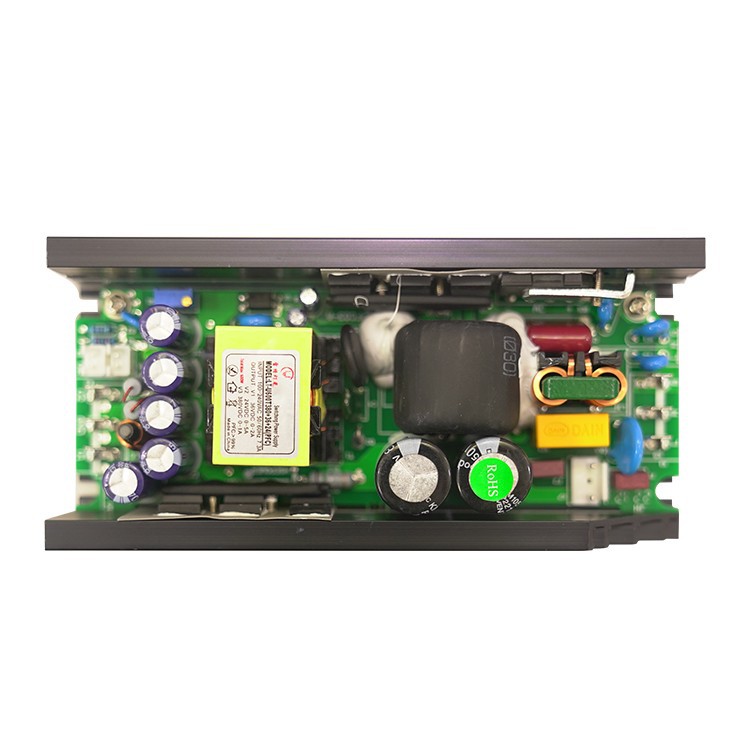

600W U-Shaped Stage Beam Light Power Supply Series
For 330W16R 350W17R 371W 380W 19R 420W 20R 440W
Function overview: Input and output parameters of the product
|
No |
Model |
Input(AC) |
Output(VDC) |
|
D10-600C-T01 |
HS-U600T380+24+12(PFC) |
100-240VAC/7.3A |
VI:24VDC5A V2: 12VDC/4A V3V3:380W0C 12AMax.600W |
|
D10-600C-T02 |
HS-U600T380+28+12(PFC) |
100-240VAC/7.3A |
V:28VDC/4A V2: 12VDCIAA V3VS3380VDC12AMaX600W |
|
D10-600C-T03 |
HS-U600T380+30+12(PFC) |
100-240VAC/7.3A |
V1: 30VDC/4A V2:12VDC/4A V3:380WDC1.2AMax.600W |
|
D10-600C-T04 |
HS-U600T380+36+12(PFC) |
100-240VAC/7.3A |
V: 36VDCI3.5 A V2: 12VDC4A V3V3380VDC 12AMax.600W |
|
D10-600C-T05 |
HS-U600T380+36+24(PFC) |
100-240VAC/7.3A |
V1: 36VDCI3.5AV2:24VDC2A V3V3:380VDC 12AMax600W |
|
D10-800A-T01 |
HS-U800T380+30+12(PFC) |
100-240VAC/9A |
VI: 30VDC/4A V2: 12VDC/4A V3V338NDC 135AMax.800w |
|
D10-800A-T02 |
HS-U800T380+36+12(PFC) |
100-240VAC/9A |
V: 36VDCI3.5AV2: 12VOCAA V3VS.380VDC1.35AMax 800W |
|
D10-800A-T03 |
HS-U800T380+36+24(PFC |
100-240VAC/9A |
V:36VDCI3.5AV2: 24VDC12A V3V3:380VDC1.35AMax.800W |
Technical Specifications
- Double Or Three-way voltage output.
- Cooling by free air convection
- Input terminal: 8.25 - 2P black terminal
- Output terminal: 5.08 - 4P green terminal plus one 2.54 - 2P
- Modulation method: Pulse Width Modulation (PWM) type, Pulse Frequency Modulation (PFM) type, Pulse Frequency Modulation and Width Adjustment type Transistor connection method,Single-ended type, Push-pull type, Half-bridge type, Full-bridge type.
- 100-240V AC International input voltage ,Cooling by free air convection.
- 100% Full LOAD Burn- Intest,Built-inactive PFC function,
- Accord with ROHS,Short circuit protection.
- Over voltage protection Over current protection, Can be customized according to user selection.Radiator shell small size light weight.
- Low noise High efficiency Performs high reliability.
Electrical And Interface
- Input Voltage Range: 110 - 240V ~ 50/60Hz
- Power: 600W / 800W
Power Supply Size
- Length: 150mm (5.90")
- Width: 88mm (3.46")
- Height: 51mm (2.00")
- Net Weight : 0.565kg (1.243lbs)
Work Environment
- Maximum ambient temperature: 60°C
- Minimum operating temperature: -40°C
Certification
- ISO9001 Quality Management System Certification
- CE Certification
