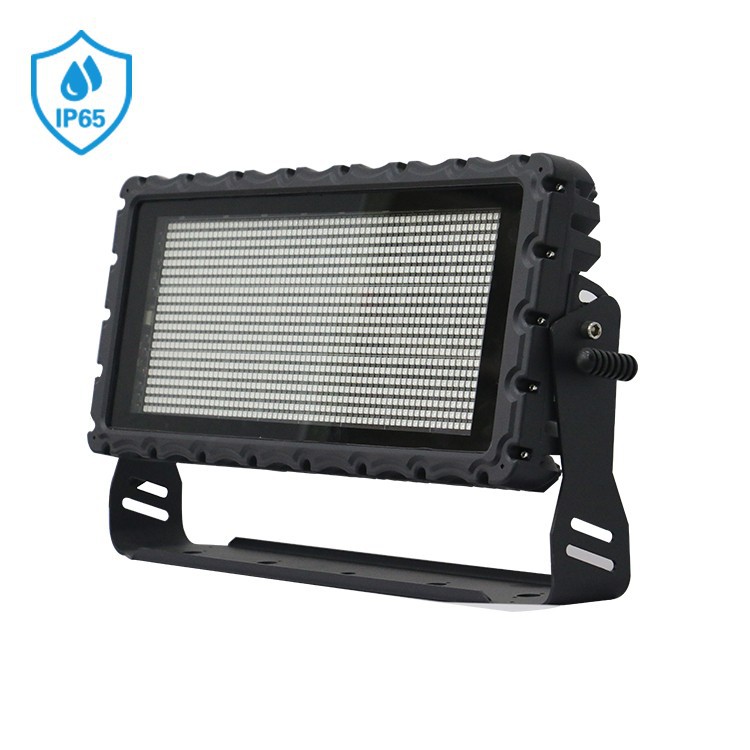

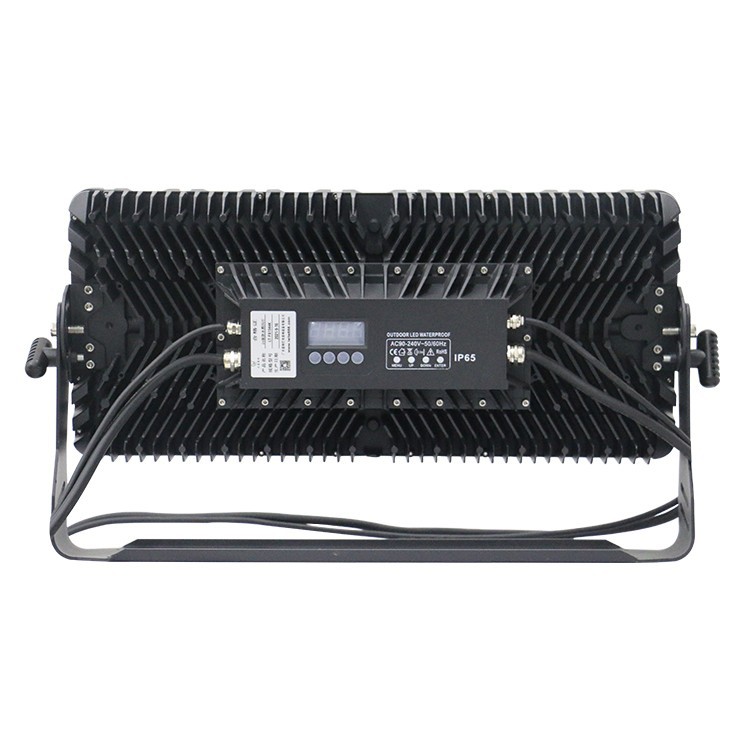

Outdoor 24 Sections LED Strobe Stage Light

Guangdong New Start Lighting Co., Ltd. is one of the leading manufacturers and suppliers of outdoor 24 sections led strobe stage light in China. With abundant experience, we warmly welcome you to wholesale customized lighting products at competitive price from our factory. Contact us for pricelist.

• Hardcore protection, unafraid of complex environments
• Protection level: IP65, outdoor waterproof standard, custom-molded aluminum cast shell, equipped with a waterproof fan, with better air ventilation and better heat dissipation, more stable. Dust-proof and splash-proof, easily cope with rainy days, humid outdoor and other complex scenarios. Outdoor use is safer with a temperature range of -30℃ to 50℃. Wide temperature operation, no system crash at high temperatures, no lag at low temperatures. Suitable for different regional climate conditions.
• Appearance design: Metal black body, exquisite craftsmanship, high-quality materials, stable structure, combining texture and durability

• Segment design: 24 segments of multi-functional combination, supports running patterns, coloring, burst flashes and other rich lighting effects, can be flexibly switched according to scene requirements, creating diverse atmospheres, DMX512, RDM, manual, self-walking, master-slave, independent electronic fogging effect.
• Lamp bead configuration: 1344 5050 three-color LED lamp beads, combined with imported chips, high brightness, pure color, wide light coverage, high visual experience.
• Dimming and strobing: 32bit 0~100% linear dimming, smooth and natural transition of light and darkness, no abrupt jumps; 1~30HZ strobing frequency adjustable, suitable for slow-paced atmosphere rendering and fast-paced dynamic presentation.

Flexible Control, Convenient And Efficient Operation

• Channel mode: Compatible with CH03, CH07, CH72 three channel modes, suitable for complex programming by professional lighting technicians and simple operation by beginners, meeting different levels of usage needs
• Control mode: Supports DMX512, self-walking, master-slave, voice control modes, with RDM function, connection methods include DMX512 input/output / power input/output, flexible and convenient setup

• No complex debugging required, adaptable to different event setup rhythms, professional scenes and small-scale events can be quickly mastered
• Light source and chip configuration: Equipped with imported chips, core light source power reaches 120W, combined with exclusive optical design, achieving "super high brightness" and "wide coverage" dual advantages, can meet the needs of large-area scene wall washing lighting, and provide dynamic light effect support through strobing function; lamp source average lifespan reaches 2000H, ensuring the stability of light effect in long-term use, suitable for high-frequency event scenarios.

• Fixed 3200K color temperature, soft and uniform light, outstanding wall washing effect, can create immersive atmosphere for banquets, performances, etc., avoiding problems of strong light being dazzling or uneven light, balancing visual comfort and lighting practicality.

• Product Name: Outdoor 24 Sections LED Strobe Stage Light
• Product Model: NST-P24F
• Waterproof Grade: IP65

• Light Source: 1344 5050 three-color LED bulbs
• Expected Service Life:80.000hours

• The advanced optical system ensures clear and wide-range beams and coloring effects
• 8 times efficient zoom optical system
• Spot angle: 0° - 60°
• Excellent color mixing function
• Strong and high-output strobe effect
• Built-in splicing, enabling quick splicing alignment

• Effect Characteristics: Running horse + Flashing lights + Splicing + Numbers + Letters + Flowing text
• 4 touch buttons
• Control Panel: LCD touch display screen
• Control Protocol: DMX512, RDM, Art-Net
• DMX Channels: Multiple channel modes such as 3/12/360 channels
• Dimming: Linear dimming from 0% to 100%
• Flashing: 1 - 30 Hz, supports random flashing and pulse flashing

• Input voltage range: 110 - 240V ~ 50/60Hz
• Power: 400W
• Power supply socket: Waterproof power connector input/output
• Signal input/output: Three-core or five-core waterproof coaxial socket

• Length: 660mm (25.98")
• Width: 350mm (13.77")
• Height: 280mm (11.02")
• Net Weight : 13.8kg (30.36 lbs)

• Maximum ambient temperature: 40°C
• Minimum operating temperature: -20°C
• Maximum surface temperature: 65°C

• Certification *ISO9001 Quality Management System Certification* CE
• Can be installed vertically or horizontally, or left and right.

• The base has 4 holes for quick lock hooks.
• 2 quick lock hooks suitable for 50mm truss, which can be installed one or two according to the usage requirements.
• Safety rope connection position.

• Electronic manual
• Power cord: 2.5 * three-core waterproof hand-carrying integrated cable
• Both the head and the base are equipped with handles
• Under-mounted telescopic stand
• 2 quick-lock hooks suitable for 50mm truss
